Mounting

Leuze electronic GmbH + Co. KG BPS 348i 43

6.2.3

Mounting with the BTU 0300M-W mounting device

Mounting the BPS with a BTU0300M-W mounting device is intended for wall mounting.

For ordering information see chapter 14 "Order guide and accessories"; for dimensioned drawing see chap-

ter 13.4 "Dimensioned drawings: Accessories".

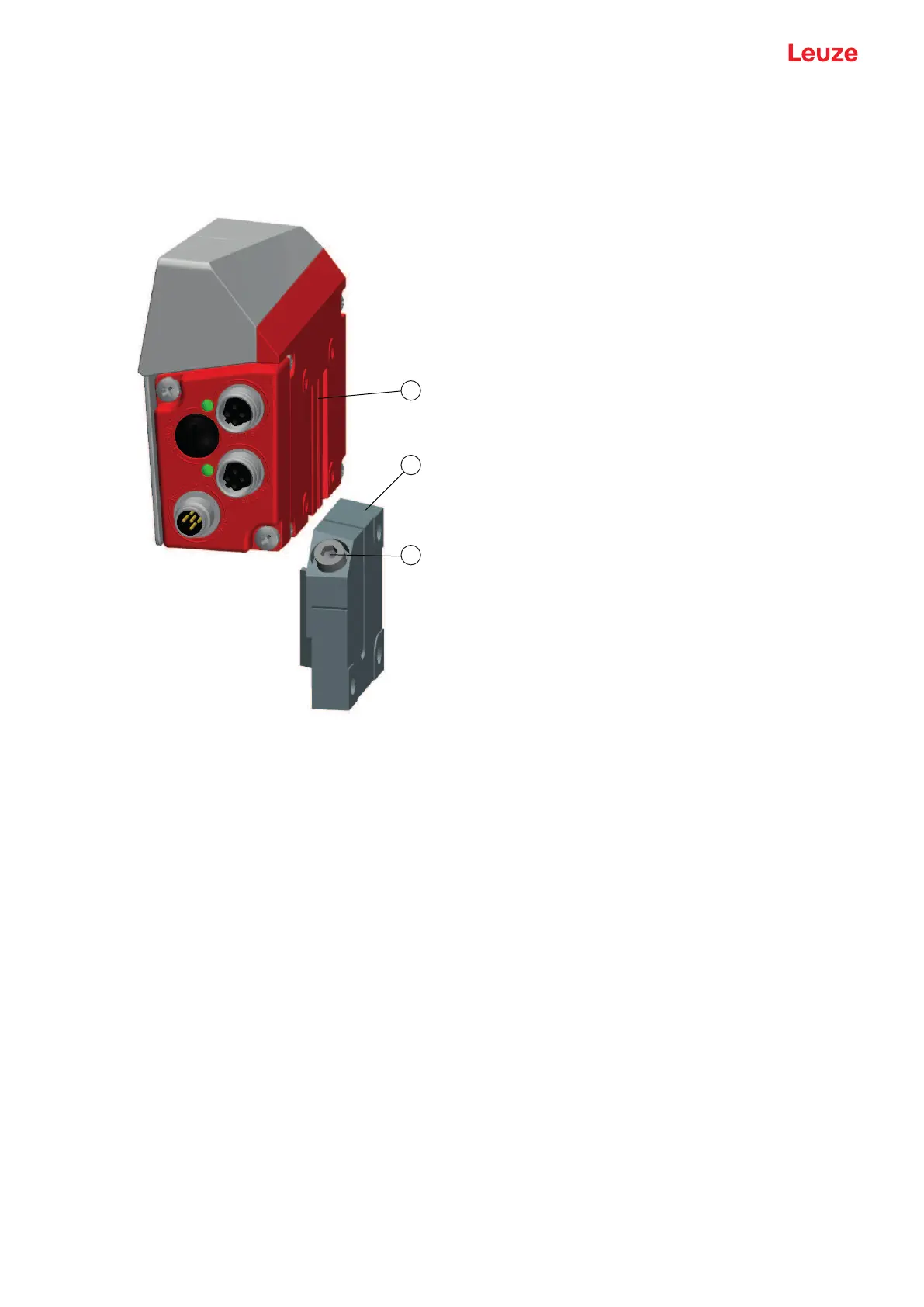

1 Clamp profile

2 Clamping jaws

3 Screw terminal

Fig.6.10: Mounting the BPS with the BTU0300M-W mounting device

Ä Mount the BTU0300M-W on the system side with M6 fastening screws (not included in delivery con-

tents).

Ä Mount the BPS with the dovetail fastening grooves on the clamping jaws of the BTU0300M-W with limit

stop at end.

Ä Secure the BPS with the M6 screw terminal.

Maximum tightening torque for the M6 screw terminal: 8Nm

6.2.4

Mounting with the BT300W mounting bracket

Mounting of the BPS with a BT300W mounting bracket is intended for wall mounting.

For ordering information see chapter 14 "Order guide and accessories"; for dimensioned drawing see chap-

ter 13.4 "Dimensioned drawings: Accessories".

Ä Mount the BT0300 W mounting bracket on the system side with M6 fastening screws (included in de-

livery contents).

Ä Mount the BPS on the mounting bracket with M4 fastening screws (included in delivery contents).

Maximum tightening torque of the M4 fastening screws: 2Nm
