6.2.2
Orientation of the BPS to the bar code tape
The beam of the BPS must be oriented at an incline of 7° to the bar code tape (see following figure). When
positioning, make certain that the angle of radiation to the rear side of the housing is 90° and the reading
distance to the bar code tape is maintained.

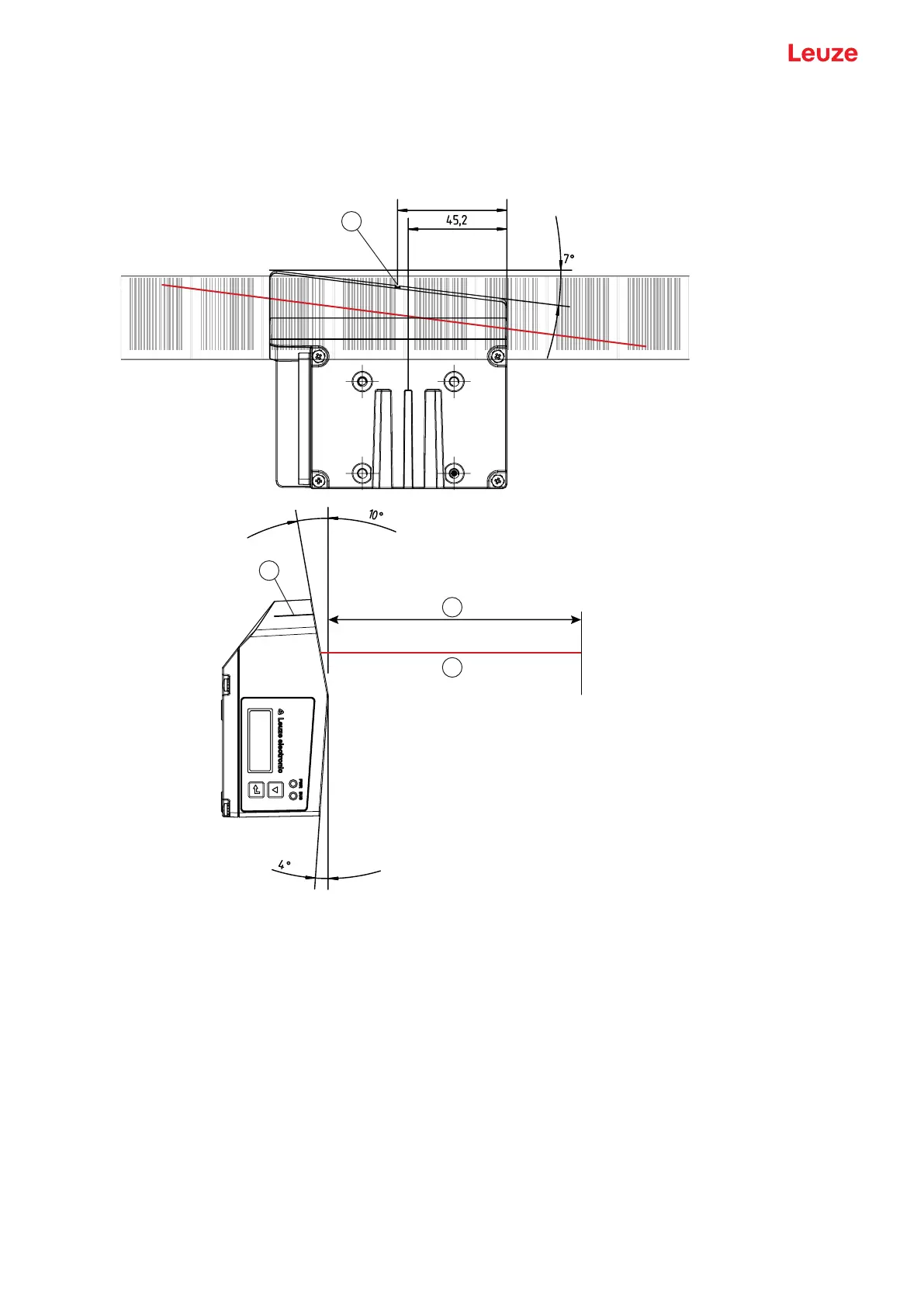

1 Reading distance
2 Reference point for the bar code position
3 Scanning beam
Fig.6.9: Beam exit
