Electrical connection
Leuze electronic GmbH + Co. KG BPS 348i 54
1
3
4
2
1 With MS348 connection hood with M12 connectors
2 With MK348 connection hood with spring-cage terminals
3 Host interface - PC/control
4 other network participants

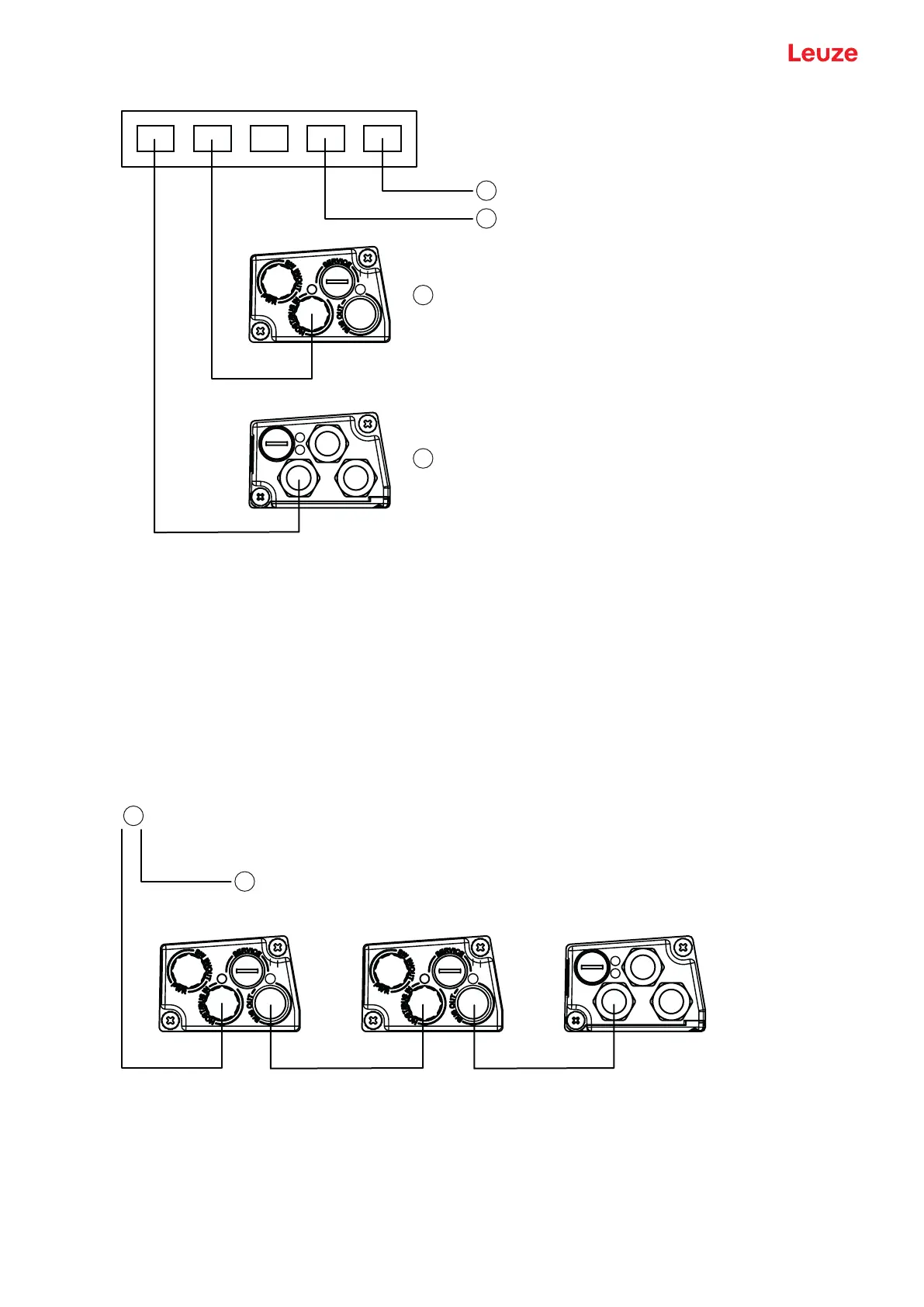

Fig.7.8: PROFINET in a star topology
7.6.2 Linear topology
The integrated switch functionality of the BPS offers the possibility to network multiple BPS devices. In ad-
dition to the classic "star topology", a "linear topology" is thus also possible. The wiring of the network in a
linear topology is simple and economical since the network connection is looped through from one partici-
pant to the next. The maximum length of a segment (connection from one participant to the next) is limited
to 100m.
1
2
1 Host interface - PC/control
2 other network participants
Fig.7.9: PROFINET in a linear topology
Up to 254 BPS can be networked. They must all be located in the same subnet.
To do this, the individual device name is assigned to each participating BPS through device naming, using
the control's configuration tool (see chapter 8.3 "Configuring for the Siemens SIMATIC-S7 control").
