Device description
Leuze electronic GmbH + Co. KG BPS 348i 12
3.2 Connection technology
For the electrical connection of the BPS, the following connection variants are available:
• MS348 connection hood with M12 connectors
• MK348 connection hood with spring-cage terminals
• ME348103 connection hood with cables with M12 connector
The voltage supply (18…30VDC) is connected acc. to the connection type selected.
Two freely programmable switching inputs/switching outputs for individual adaptation to the respective ap-
plication are also available here.
3.2.1 MS348 connection hood with M12 connectors
The MS348 connection hood features three M12 connector plugs and a Mini-B type USB socket as a ser-
vice interface for configuration and diagnostics of the BPS.
NOTICE
The integrated parameter memory for the simple replacement of the BPS is located in the
MS348.
In the integrated parameter memory, both the settings and the PROFINET name are saved.
Upon device exchange, they are automatically transmitted to the new device.
1
3
4
2
1 PWR/SW IN/OUT: M12 plug (A-coded)
2 SERVICE: Mini-B USB socket (behind protective cap)
3 HOST/BUSIN:M12 socket (D-coded), Ethernet0
4 BUSOUT: M12 socket (D-coded), Ethernet1

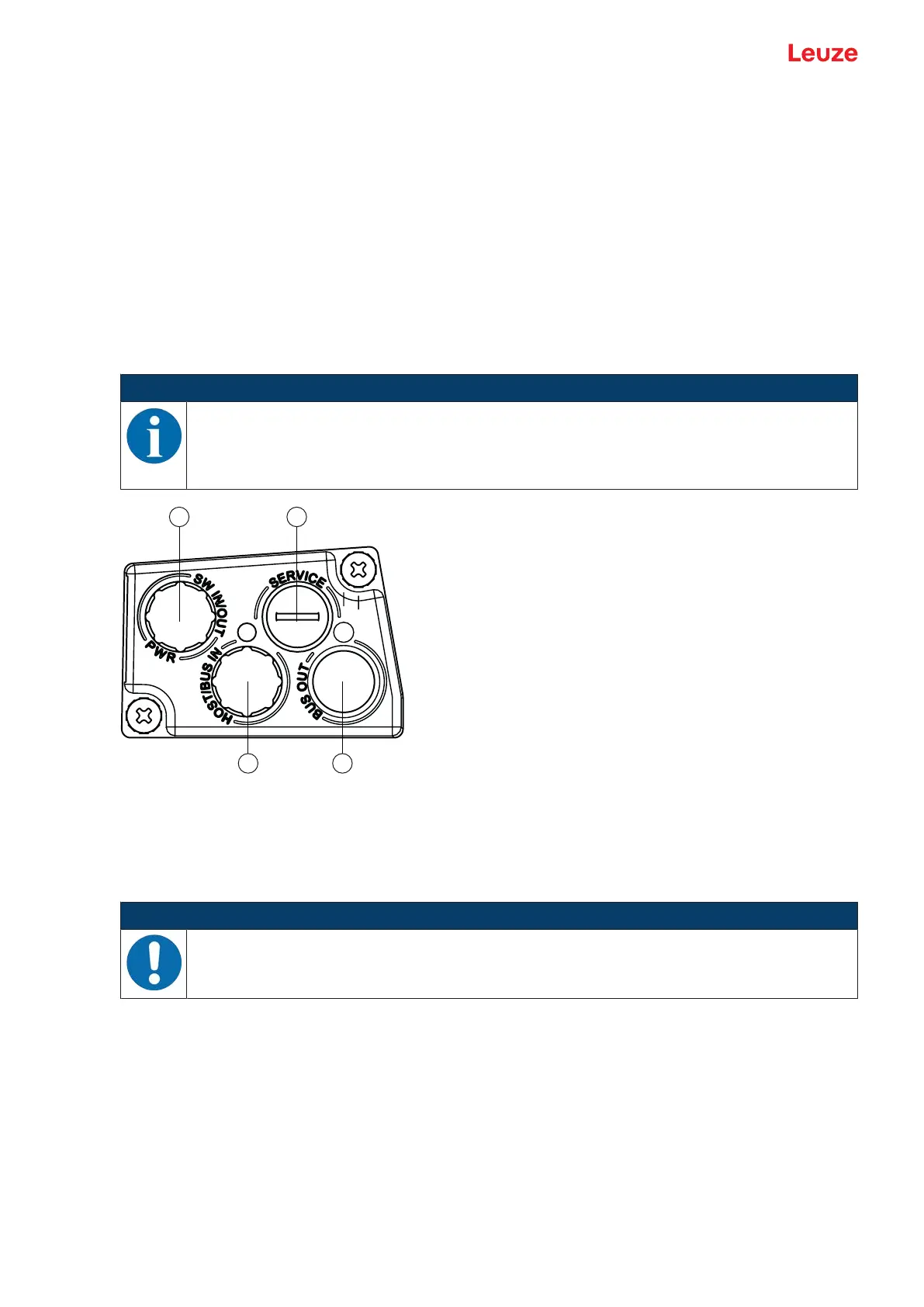

Fig.3.2: MS348 connection hood, connections
NOTICE
Shielding connection
Ä The shielding connection is done via the M12 connector housing.
3.2.2 MK348 connection hood with spring-cage terminals
The MK348 connection hood makes it possible to connect the BPS directly and without additional connec-
tors.
• The MK348 features three cable bushings in which the shielding connection for the interface cable is
also located.
• A Mini-Btype USB socket is used for service purposes and for configuration and diagnostic of the BPS.
