Device description
Leuze electronic GmbH + Co. KG BPS 348i 13
NOTICE
The integrated parameter memory for the simple replacement of the BPS is located in the
MK348.
In the integrated parameter memory, both the settings and the PROFINET name are saved.
Upon device exchange, they are automatically transmitted to the new device.
1
2
1 1
1 3x cable bushing, M16x1.5
2 SERVICE: Mini-B USB socket (behind protective cap)

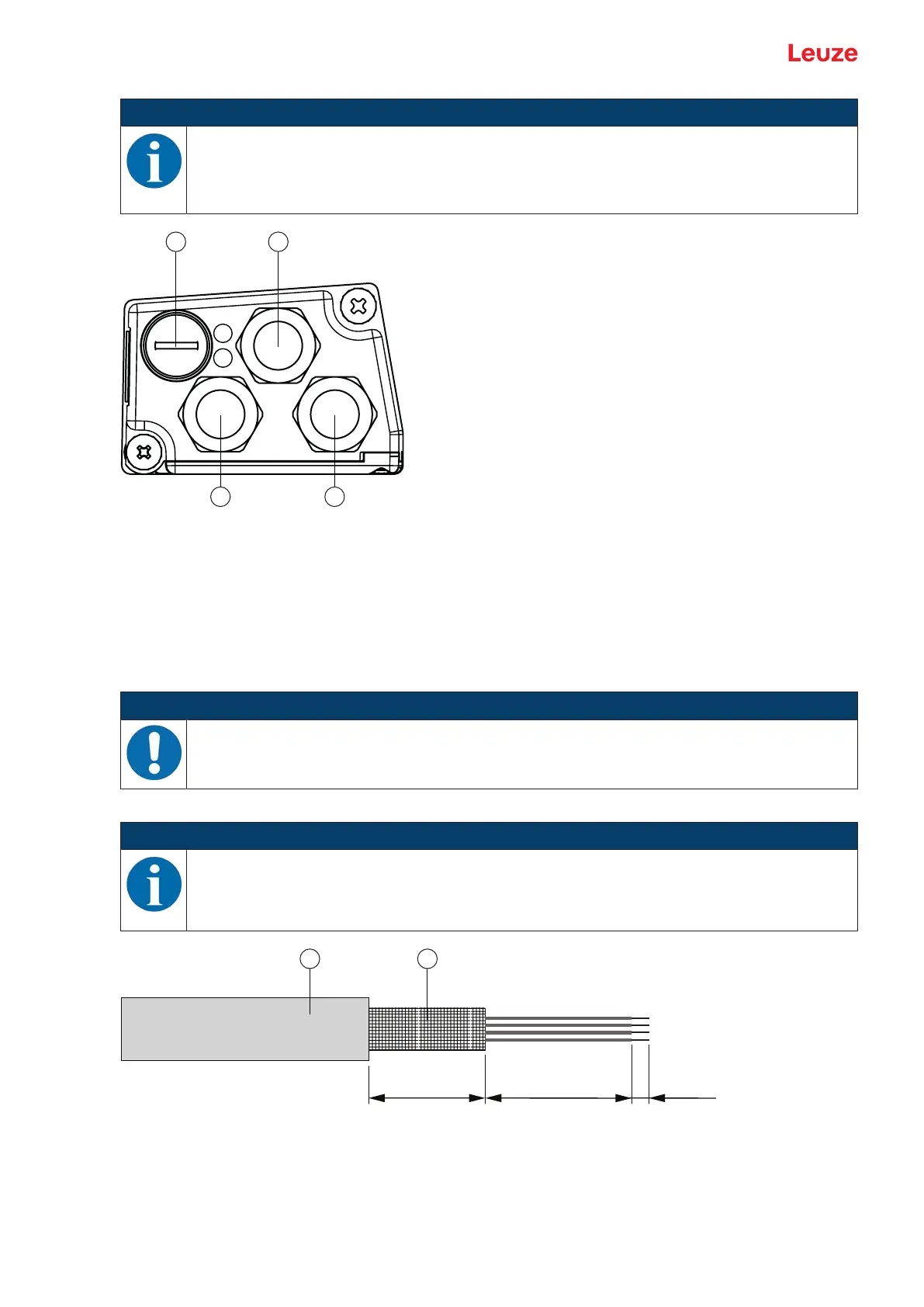

Fig.3.3: Connection hood MK348, connections
Cable fabrication and shielding connection
Ä Remove approx.78mm of the connection cable sheathing. 15mm of sheath of the shielded line must
be freely accessible.
Ä Lead the individual wires into the terminals according to the diagram.
NOTICE
Do not use wire-end sleeves!
Ä When fabricating cables, we recommend against using wire-end sleeves.
NOTICE
The shield is automatically contacted when the cable is lead into the metal screw fitting and fas-
tened when the cord grip is closed.
≈ 55 mm ≈ 8 mm ≈ 15 mm
1 2
1 Diameter of contact area, cable: 6…9.5mm
2 Diameter of contact area, shield: 5…9.5mm
Fig.3.4: Cable fabrication for connection hoods with spring-cage terminals
