Leuze BPS 348i - DIAGNOSIS Function

Starting up the device – webConfig tool
Leuze electronic GmbH + Co. KG BPS 348i 100
Configuration of speed monitoring (DATA PROCESSING tab, Measurement data > Speed >
Monitoring)
• Speed limit value1-4 *
Configuration of the measurement value display (DATA PROCESSING tab, General preparation)
• Unit *
• Count direction *
• Output mode sign *
Configuration of monitoring of the reading quality (DATA PROCESSING tab, Reading quality)
• Warning threshold for reading quality in%**
• Error threshold for reading quality in% **
Configuration of the data output (DATA PROCESSING tab, Output, Preparation)
• Position resolution *
• Speed resolution *
Configuration of the communication data (COMMUNICATION tab)
• Parameters of the PROFINET interface
The PROFINET parameters are displayed for viewing purposes only.
• Configuration of the SERVICE USB interface
9.3.5 DIAGNOSIS function
The DIAGNOSIS function is available in the Process and Service operating modes.
The device event log is displayed with the DIAGNOSIS function.
BPS 3xxi SM 100 D

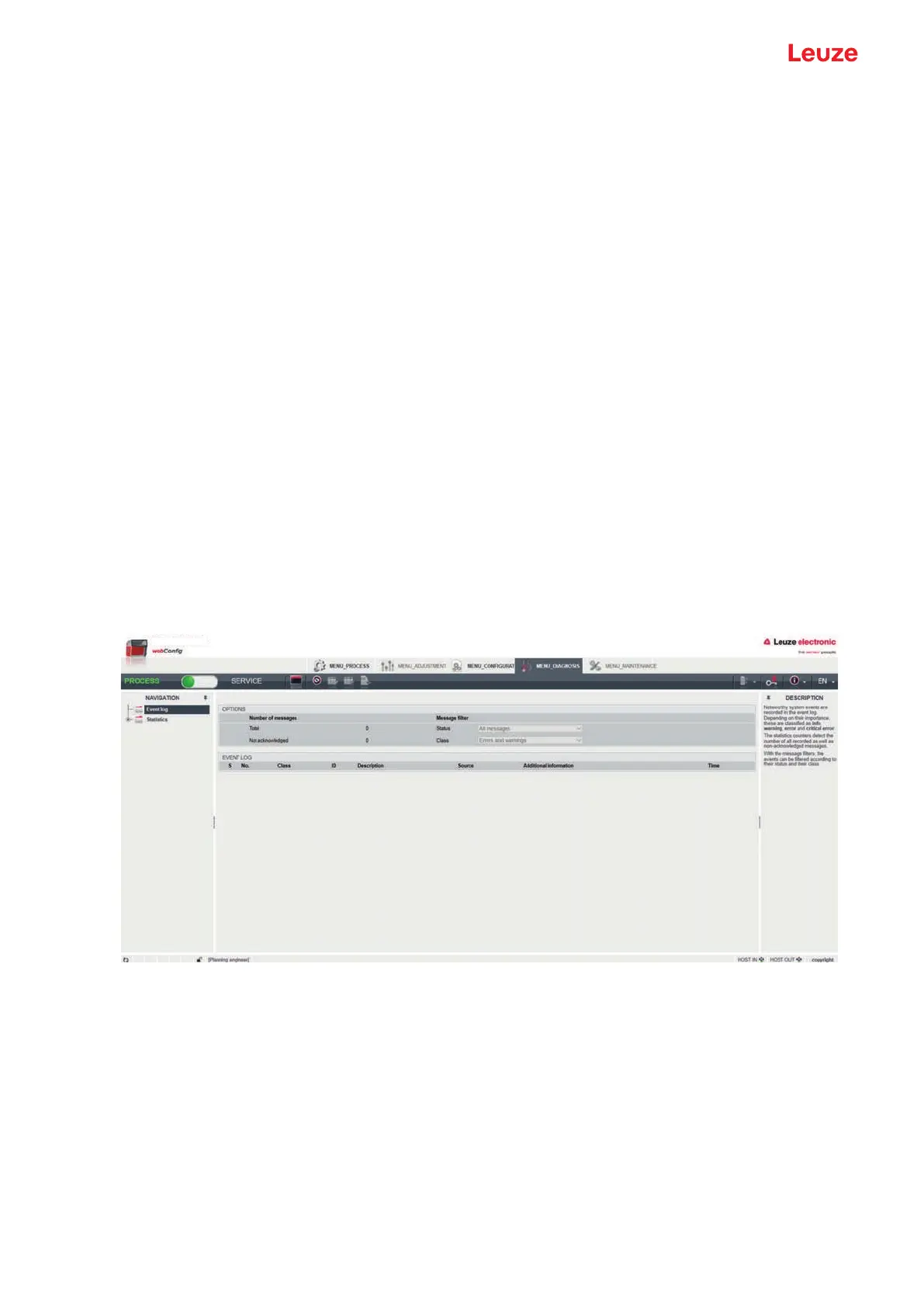

Fig.9.6: DIAGNOSIS webConfig function
