Device description
Leuze electronic GmbH + Co. KG BPS 348i 15
1
3 4
2
1 PWR LED
2 BUS LED
3 Display
4 Control buttons

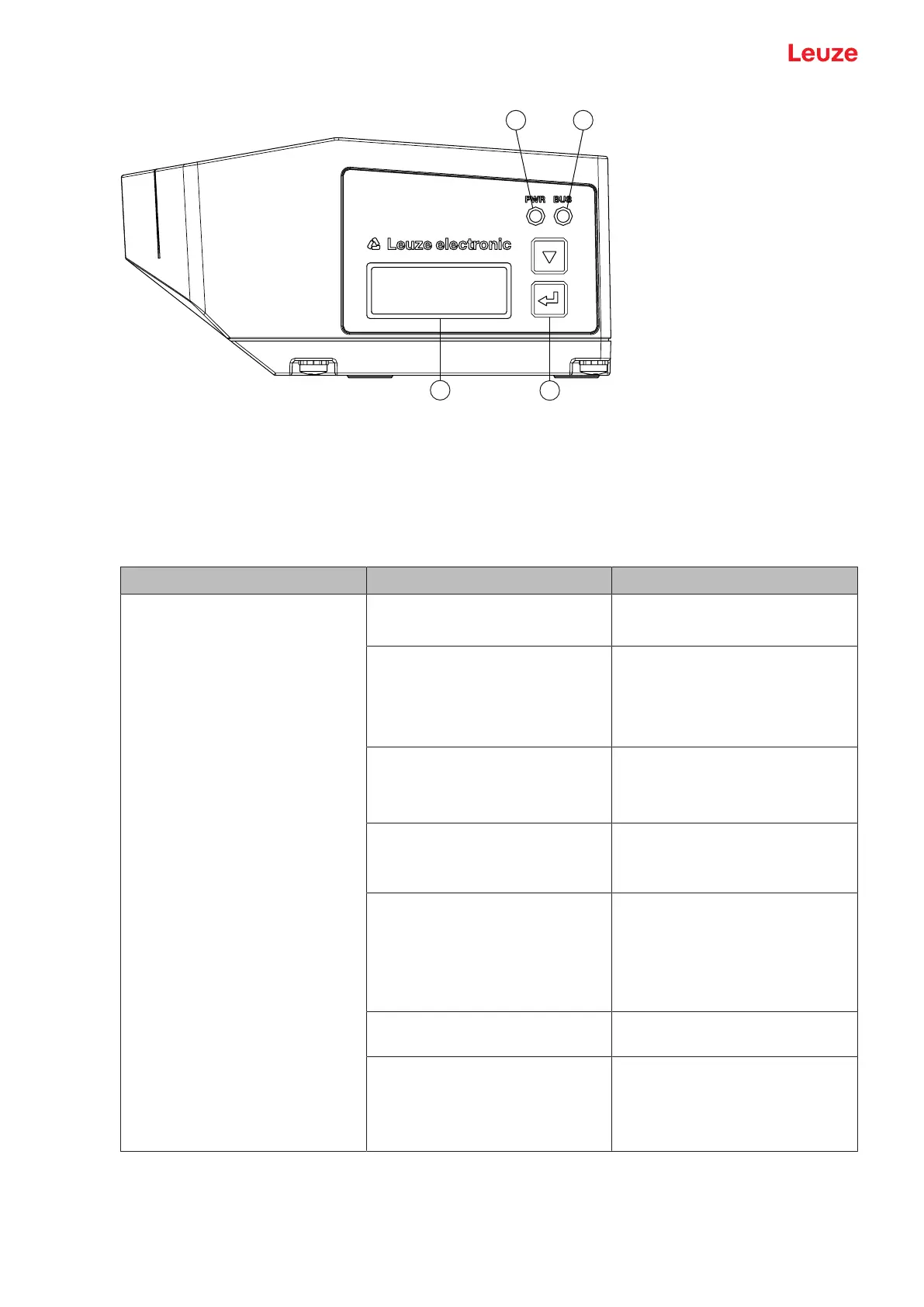

Fig.3.6: Indicators on the device housing
Tab.3.1: Meaning of the LED indicators on the device housing
LED Color, state Description
LED1
PWR
Off Device is switched off
• No supply voltage
Green, flashing Device is being initialized
• Supply voltage connected
• Initialization running
• No measurement value output
Green, continuous light Device in operation
• Initialization finished
• Measurement value output
Red, flashing Warning set
• No measurement (e.g. no
barcode tape)
Red, continuous light Device error
• Device function is limited
• Details via event log
(see chapter 10.1.2 "Diagno-
sis with webConfig tool")
Orange, flashing PROFINET wave function acti-
vated
Orange, continuous light Service active
• No data on the host interface
• Configuration via USB service
interface
