Removing the MFP from an optional drawer
138
Administration
Disabling tray linking
If you use different print media in the sources, each source with a different print media must have the
Paper Type set to a unique value to disable the automatic tray linking feature.
Removing the MFP from an optional drawer
You can remove the MFP from either the 250-sheet drawer or the 500-sheet drawer using the same
method.
1 Turn the MFP power off.
2 Unplug the MFP power cord.
3 Disconnect all cables from the back of the MFP.
CAUTION: The MFP weighs over 18 kg (39.69 lb); therefore, it requires at least two people to
lift it to avoid injury. Ask someone to help you lift it. Make sure your fingers are not
under the MFP when you set it down.

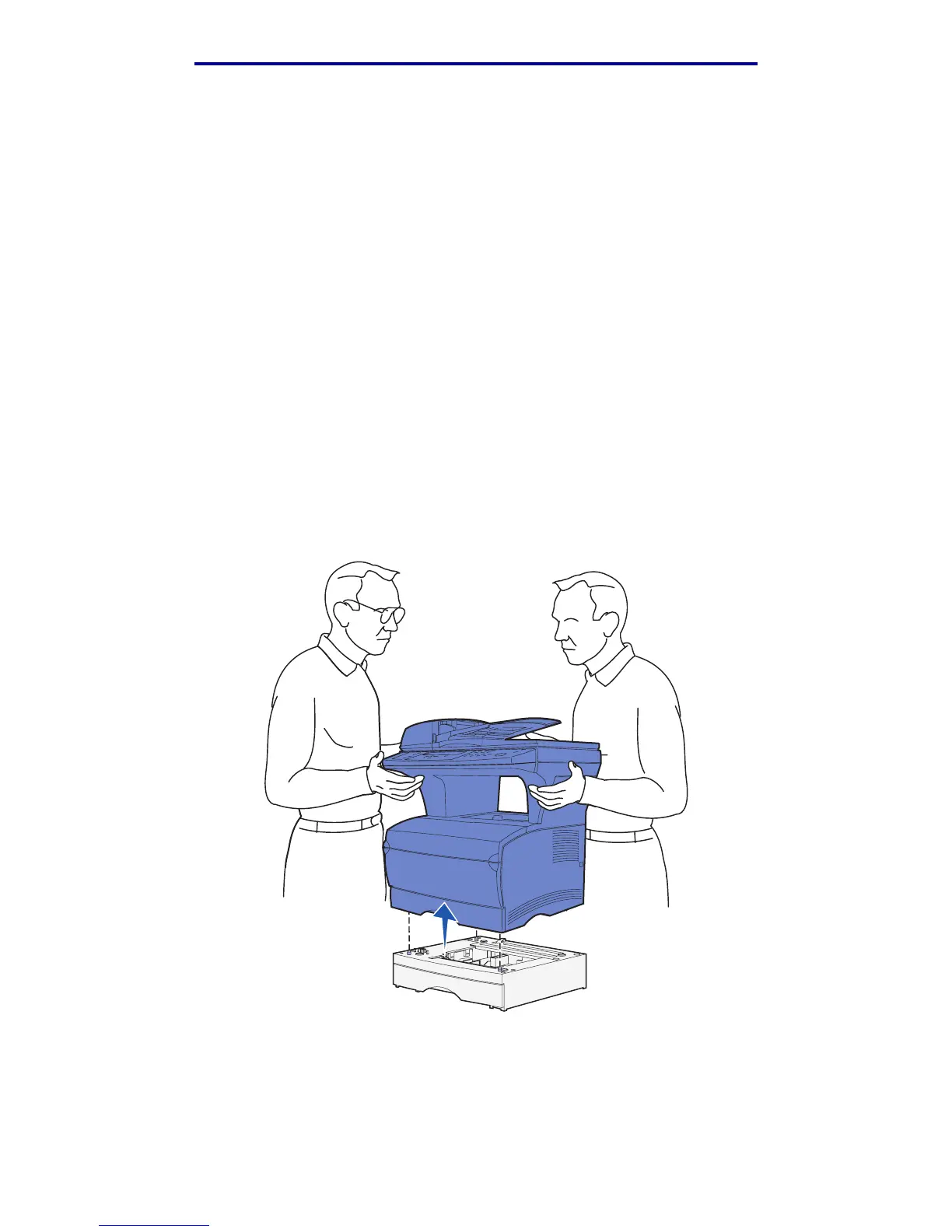

4 Lift the MFP off of the optional drawer, and then set the MFP aside.
