Cleaning the ADF
117
Maintenance
Cleaning the ADF
1 Turn the MFP off.
2 Open the top cover of the ADF. If you need help, see the illustration on page 112.
3 Remove the pick roller assembly. If you need help, see the illustration on page 112 through
the illustration on page 113.

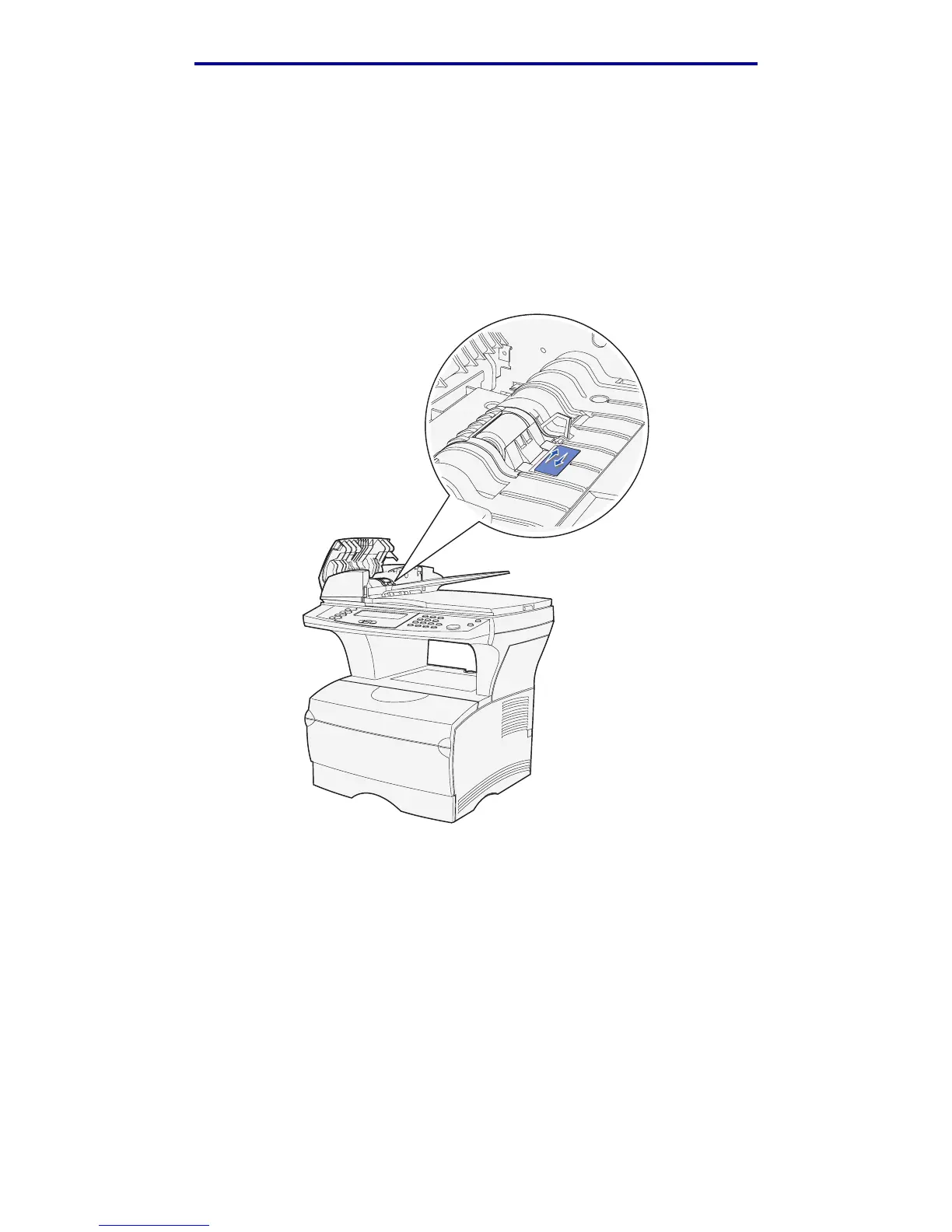

4 Wipe the small area resembling cork with a clean, damp cloth moistened with water only.
5 Reinstall the pick roller. If you need help, see step 13 on page 116 and step 14 on
page 116.
6 Close the top cover of the ADF.
7 Turn the MFP on.
