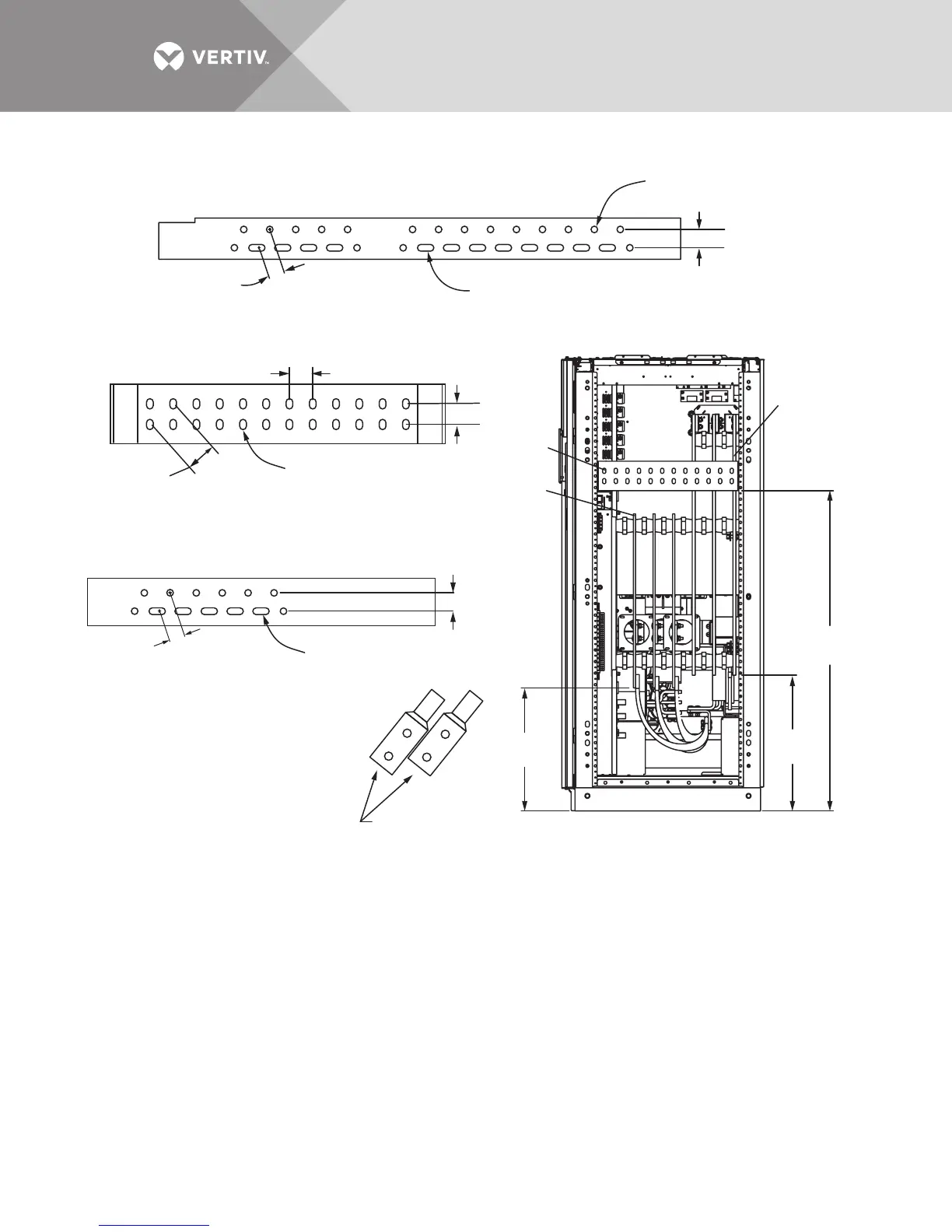

Figure 25 Output and bypass terminal detail, 1000-1200kVA Liebert EXL UPS, SMS and 1+N multi-module unit
Notes:
1. All dimensions are in inches (mm).
2. Control wiring and power wiring must be run in separate conduits
3. All wiring is to be in accordance with national and local electrical codes.
4. See Page 1, Drawing U46-12E-3200A and Page 2, Drawing U46-12E-3200B.
5. Based on NEC 408.56 minimum spacing, all live parts, including lugs,
must be at least 1 inch (25.4mm) from any other live part from a different
phase or the chassis frame. If lug stacking is required, the method
of stacking and required minimum spacing is the responsibility of the
installing contractor and authority having jurisdiction (AHJ).
Dual Hole Lug
Pad Width (Max.)
1.75" (44mm)
RIGHT SIDE
Output/Bypass
U46-12E-3200C
Rev. 0
6
7
5
Ø 0.563"
(14mm), Typical
Ø 0.563"
(14mm), Typical
1.56" (39.6mm)
1.56" (39.6mm)
5. Bypass Input Busbar 44.3" x 3.5" x .5"
(1125 x 89 x 13mm)
6. Output Ground Busbar 28.4" x 5" x .25"
(722 x 127 x 7mm)
7. Output Phase Busbar 29.5" x 4" x .375"
(749 x 102 x 10mm)
Ø 0.563" x 1.375"
(14 x 35mm) Typical
Ø 0.563" x 1.375"
(14 x 35mm) Typical
Ø 0.563" x 1.375"
(14 x 35mm) Typical
1.75" (44mm)
1.97" (50mm)
2.63"
(67mm)
1.75"
(44mm)
Typical
1.75" (44mm)
Typical
23"
(585mm)
54.4"
(1381mm)
20.9"
(531mm)
