| Liebert® EXL™ 625-1100kVA Installation Manual | Rev. 3 | 02/17 39

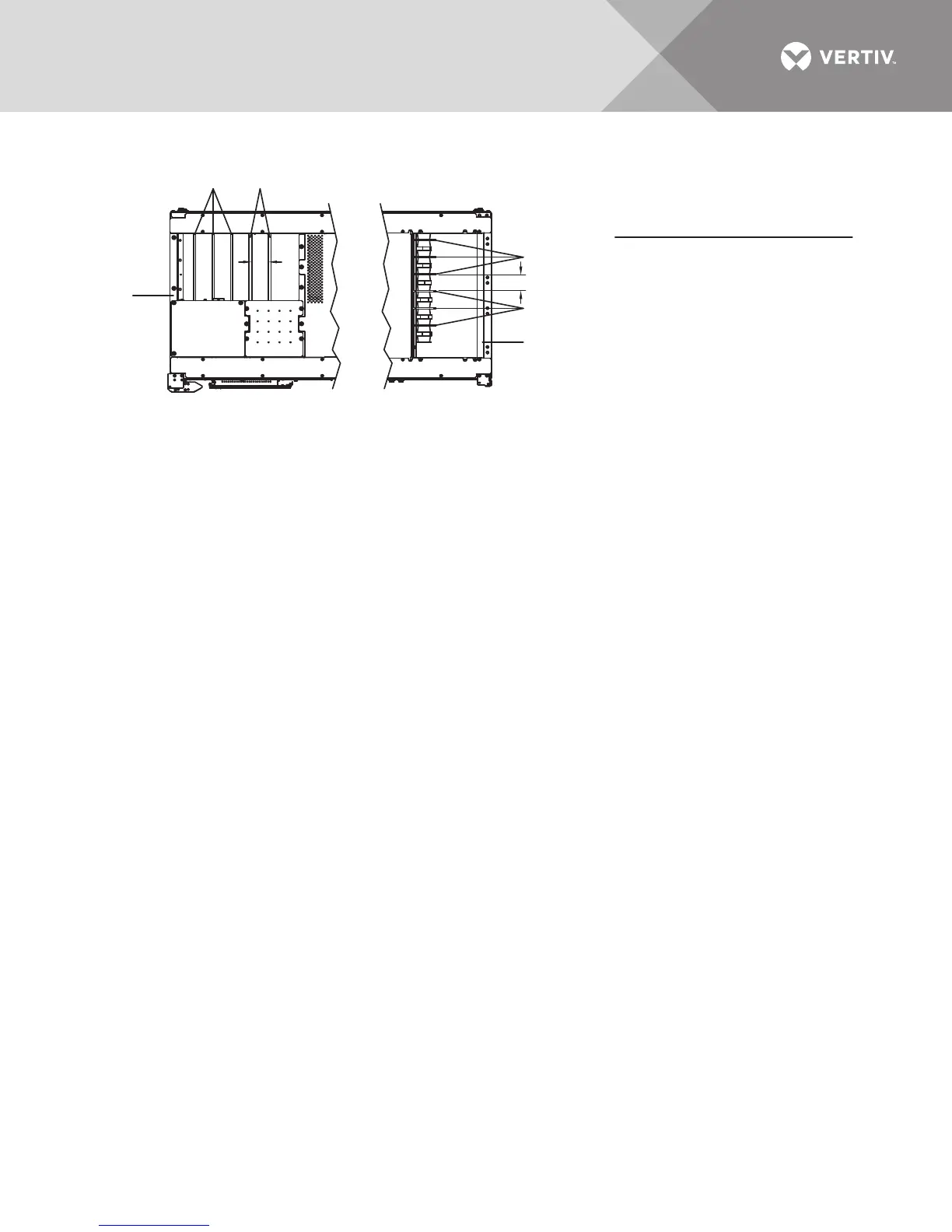

Figure 26 Input, output and bypass terminal spacing details, 625-1200kVA Liebert EXL UPS, SMS and 1+N multi-module unit
U46-8E-3200A
Rev. 0
3
[75]
Typ.
3 (75) Typ.
Between
Busbars
TOP VIEW
#1 Input Phase Busbar
#2 DC Positive / Negative Busbar
#3 Input Ground Busbar
#4 Bypass Input Busbar
#5 Phase Output Busbar
#6 Output Ground Busbar
SEE BUSBAR DETAIL PAGES 2 & 3
1. All dimensions are in inches [mm].
2. Control wiring and power wiring must be run in
separate conduits.
3. All wiring is to be in accordance with national and local electrical codes.
4. See Page 2, Drawing U46-8E-3200B and Page 3, Drawing U46-8E-3200C.
Input Output/Bypass
#2#1
#3
BCA
+
-
#6
#4
A
B
C
#5
A
B
C
(Front)

Liebert EXL Specifications

General

Frequency	50/60 Hz
Operating Temperature	0°C to 40°C
Efficiency	Up to 99%
Input Voltage	480V
Output Voltage	480V
Topology	Double Conversion
Form Factor	Tower
Battery Type	VRLA, Lithium-ion
Communication Interface	RS-232, USB
Humidity	0-95% non-condensing
