Liebert EXL - Figure 32 Rectifier Overload Data

Vertiv
™
| Liebert® EXL™ 625-1100kVA Installation Manual | Rev. 3 | 02/17 48

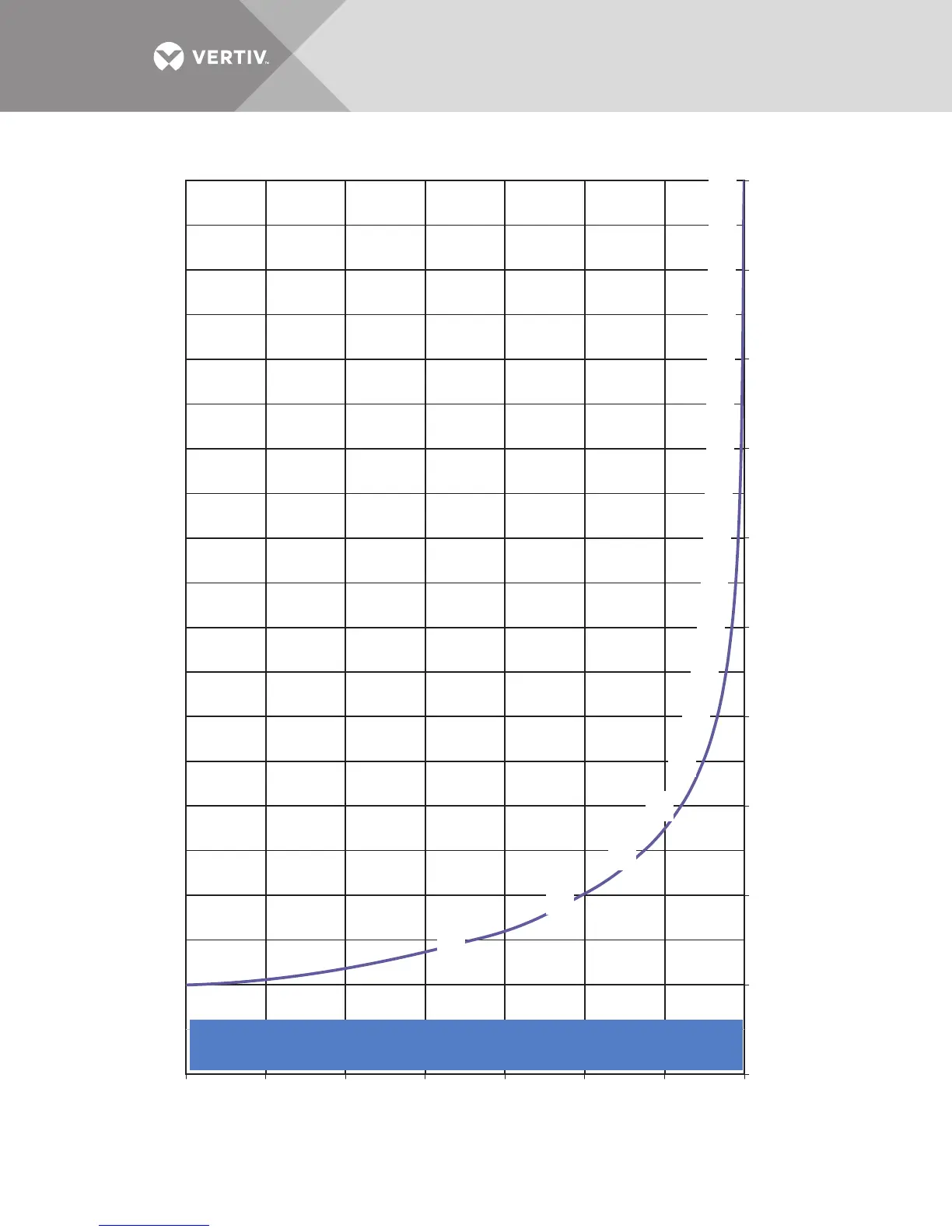

Figure 32 Rectifier overload data
341.0
204.5
126.0
79.6
51.5
34.0
22.9
15.6
10.9
7.7
5.5
4.0
3.1
2.3
1.7
1.3
1.0
0.2
694.2
0.0
100.0 200.0 300.0 400.0 500.0 600.0 700.0
100% 110% 120% 130% 140% 150% 160% 170% 180% 190% 200%
% Load
Time (sec)
Continuous
106%: 16506 secs
