| Liebert® EXL™ 625-1100kVA Installation Manual | Rev. 3 | 02/17 54

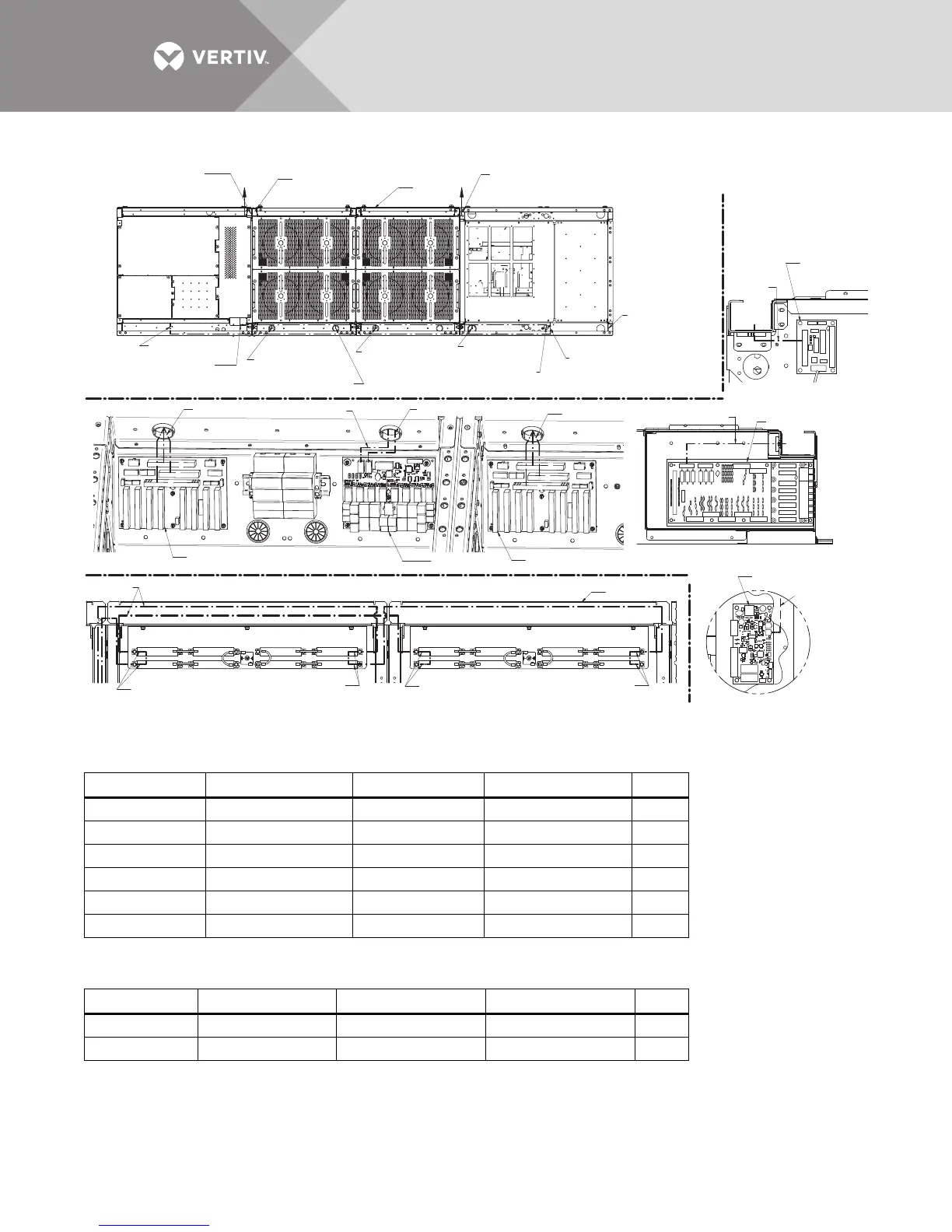

Figure 35 Shipping split, 625-800kVA Liebert EXL UPS, SMS and 1+N multi-module unit, continued
Table 22 Connections associated with top-down view
Cabinet Start Connector Label Cabinet Finish Connector Label Duct
Input J100 Bypass P100 Rear
Input J13 Bypass P13 Rear
Input J200 Bypass P200 Rear
Input J300 Bypass P300 Rear
Input J11 Core 1 P11 Rear
Input J400 Core 1 P400 Rear
Connected together in the rear duct.
Table 23 Section J-J connections
Cabinet Start Connector Label Cabinet Finish Cabinet Finish Duct
Input Core Prechg Ph A Core 1 Prechg Ph A Core 2 Prechg Ph A Rear
Input Core Prechg Ph B Core 1 Prechg Ph A Core 2 Prechg Ph A Rear
J J
P1
P2
P3
P66
P1
P2
P3
P99
DETAIL E
DETAIL H
553028P1
Pg. 2, Rev. 6
CORE 1 FIB 1
P20
P1
SECTION G-G
SECTION J-J
SECTION F-F
Route harness from input in duct to
Core 1 (Connectors - J400, J11)
Bypass (Connectors - J13, J100, J200, J300)
Core 1 & 2 Prechg (See Section J-J)
Connect to input harness
(Connectors P400, P11
Rear
Wiring Duct
Route harness from bypass in duct to
input (Connectors - P13, P100, P200, P300)
Input (Connector HVAB P20)
See Section F-F
Route harness from input in duct to
Core 1 (Connectors - P1, P2, P3, P66)
Core 2 (Connectors - P1, P2, P3)
Bypass (Connectors - P99A, P1)
Core 1 (Connectors - P1, P2, P3)
See Detail E
Core 1 (Connectors - P66)
See Detail E
Core 2 (Connectors - P1, P2, P3)
See Detail E
Bypass (Connectors - P1)
See Section G-G
Bypass (Connector - CB2 I/F BD P99)
See Detail H
From Input
Core 1 Prechr PhA
(Brown Wire)
Core 1 Prechr PhB
(Orange Wire)
Core 2 Prechr PhA
(Brown Wire)
Core 2 Prechr PhB
(Orange Wire)
Route harness from bypass in
duct to input (Connector - P20)
FRONT
WIRING DUCT
From Input
From Input
From Input
From Input
From
Input
From Bypass
From Bypass
Input Cabinet
HVAB
Core 1 Connector Board
Core 2 Connector Board
Wire Duct
Bypass Cabinet
CB2 I/F Board
Bypass Cabinet
Bypass Connector
Board
See connection details in
Tables 22, 23 and 24.

Liebert EXL Specifications

General

Frequency	50/60 Hz
Operating Temperature	0°C to 40°C
Efficiency	Up to 99%
Input Voltage	480V
Output Voltage	480V
Topology	Double Conversion
Form Factor	Tower
Battery Type	VRLA, Lithium-ion
Communication Interface	RS-232, USB
Humidity	0-95% non-condensing
