Vertiv
| Liebert® EXL™ 625-1100kVA Installation Manual | Rev. 3 | 02/17 53
APPENDIX A-SHIPPING SPLITS, KICKPLATES

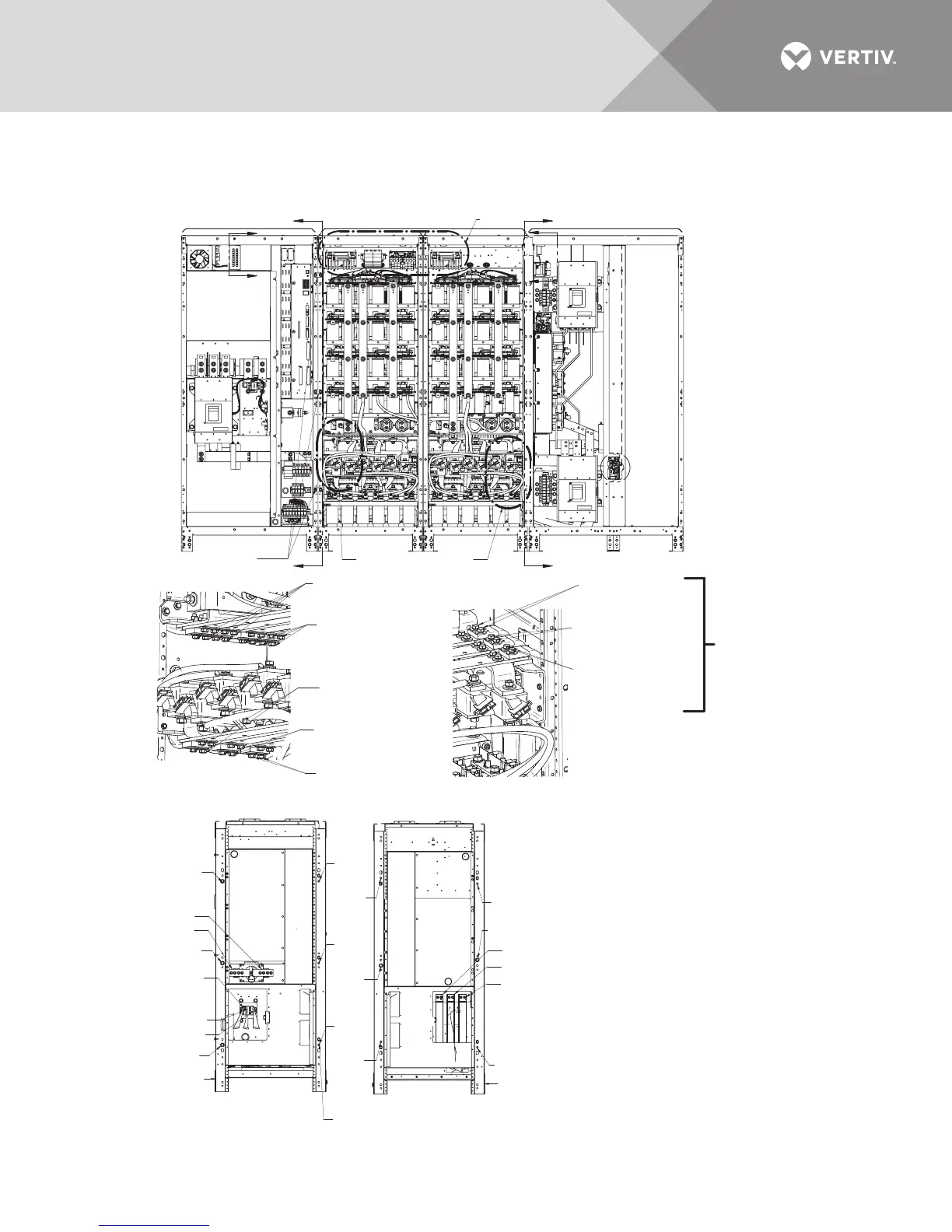

Figure 34 Shipping split, 625-800kVA Liebert EXL UPS, SMS and 1+N multi-module unit
553028P1
Pg. 1, Rev. 6
A
A
B
B
DETAIL D
SECTION A-A
DETAIL C
G
G
H
F
F
SHIPPING SPLIT INPUT
EMI Plates (3) {PN: 5533579P1}
M6 Large Flat Washer (6) {PN: 09-43B00Z-00}
M6 Split Lock Washer (6) {PN: 09-36B00Z-00}
M6 x 25 Bolt (6) {PN: 09-02BL0Z-11}
See Detail C
See Detail D
See Detail E
Shipping Split Core 1 & 2
Shipping Split Bypass & Output
PH B - Flex from Input Cabinet
M8 Large Flat Washer (2) {PN: 09-43E00Z-00}
M8 Belleville Washer (4) {PN: 09-39D00Z-A7}
M8 x 40 Bolt (2) {PN: 09-02EL0Z-14}
Torque 180 in-lb (20 Nm)
Install MH
From Core 1
Batt +
Batt -
Input Ph A
Input Ph B
Input Ph C
Install MH
From Core 1
Install MH
From Core 1
Install MH
From Input
Install MH
From Input
Install MH
From Input
Install MH
From Bypass
Install MH
From Bypass
Install MH
From Bypass
Install MH
From Bypass
Install MH
From Core 2
Install MH
From Core 2
FRONT
FRONT
Output A
Output B
Output C
PH A - Flex from Bypass Cabinet
M8 Large Flat Washer (2) {PN: 09-43E00Z-00}
M8 Belleville Washer (4) {PN: 09-39D00Z-A7}
M8 x 40 Bolt (2) {PN: 09-02EL0Z-14}
Torque 180 in-lb (20 Nm)
PH B - Flex from Bypass Cabinet
M8 Large Flat Washer (2) {PN: 09-43E00Z-00}
M8 Belleville Washer (4) {PN: 09-39D00Z-A7}
M8 x 40 Bolt (2) {PN: 09-02EL0Z-14}
Torque 180 in-lb (20 Nm)
Cabinet-to-Cabinet Mounting Hardware
M10 Large Flat Washer (1) {PN: 09-43G00Z-00}
M10 Split Lock Washer (1) {PN: 09-36G00Z-00}
M10 X 30 Bolt (1) {PN: 09-02GL0Z-12}
(Typically 12 Places) (Labeled “MH”)
Torque 240 in-lb (27 Nm)
Bend flex to 90° position
before pushing the bypass
and core together. Monitor
flex to avoid pinching between
cabinets or busbars.
Batt Pos (+) Flex from Input Cabinet
M8 Large Flat Washer (4) {PN: 09-43E00Z-00}
M8 Belleville Washer (8) {PN: 09-39D00Z-A7}
M8 x 40 Bolt (4) {PN: 09-02EL0Z-14}
Torque 180 in-lb (20 Nm)
Batt Neg (-) Flex from Input Cabinet
M8 Large Flat Washer (4) {PN: 09-43E00Z-00}
M8 Belleville Washer (8) {PN: 09-39D00Z-A7}
M8 x 40 Bolt (4) {PN: 09-02EL0Z-14}
Torque 180 in-lb (20 Nm)
PH A - Flex from Input Cabinet
M8 Large Flat Washer (2) {PN: 09-43E00Z-00}
M8 Belleville Washer (4) {PN: 09-39D00Z-A7}
M8 X 40 Bolt (2) {PN: 09-02EL0Z-14}
Torque 180 in-lb (20 Nm)
PH C - Flex from Input Cabinet
M8 Large Flat Washer (2) {PN: 09-43E00Z-00}
M8 Belleville Washer (4) {PN: 09-39D00Z-A7}
M8 x 40 Bolt (2) {PN: 09-02EL0Z-14}
Torque 180 in-lb (20 Nm)
Ph C - Flex from Bypass Cabinet
M8 Large Flat Washer (2) {PN: 09-43E00Z-00}
M8 Belleville Washer (4) {PN: 09-39D00Z-A7}
M8 x 40 Bolt (2) {PN: 09-02EL0Z-14}
Torque 180 in-lb (20 Nm)
SECTION B-B
