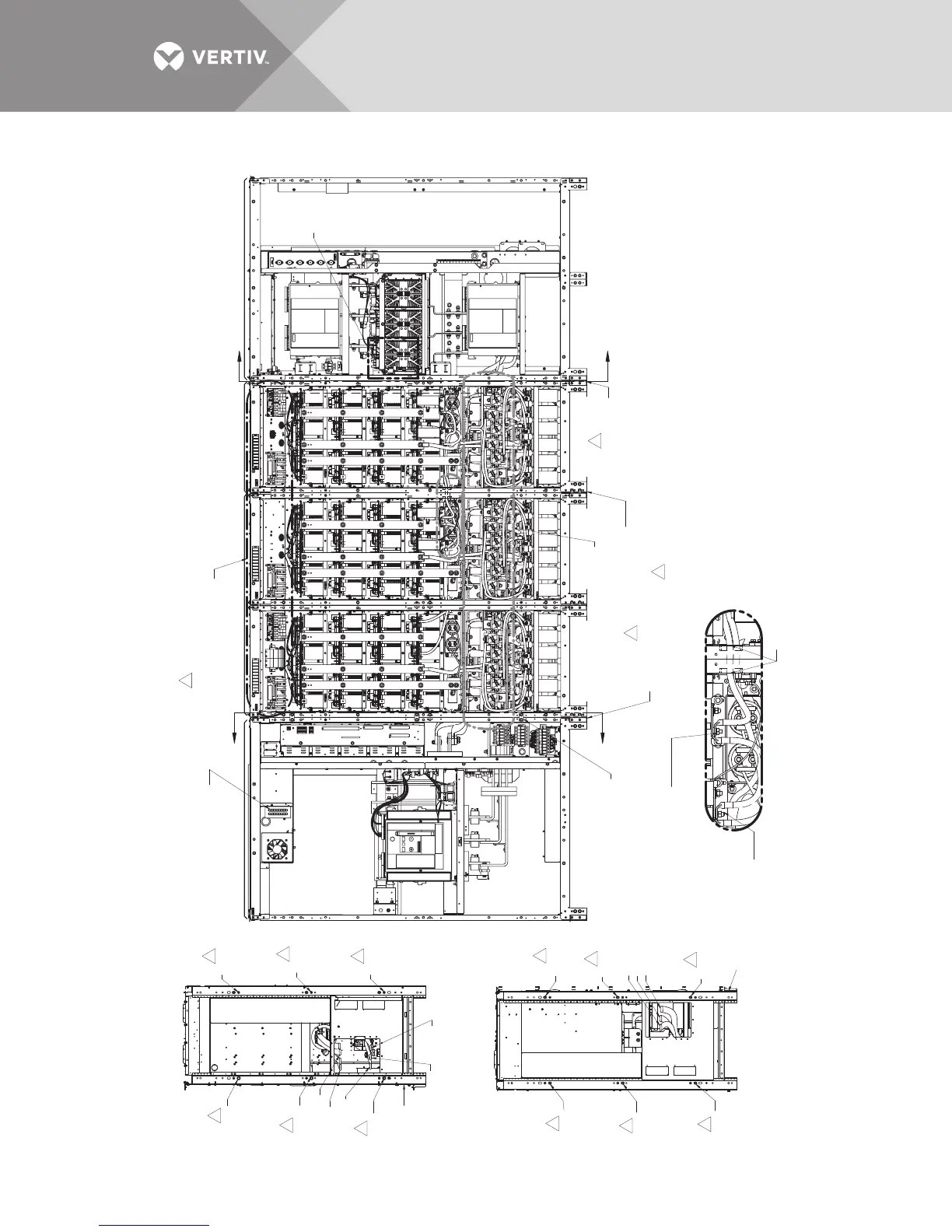

Figure 36 Shipping split, 1000-1200kVA Liebert EXL UPS, SMS and 1+N multi-module unit, Page 1
A
A
B
B
1
1
1
C
FRONT
1
1
1
1
1
1
1
1
1
1
1
1
1
E
Install
from Core
Install
from Core
Install
from Core
Install
from Core 3
Install
from Core 3
Install
from Core 3
Install
from Core 3
Install
from Core 3
Install
from Core 3
Install
from Input
Input Ph B
Input Ph C
Output Ph C
Output Ph B
Output Ph A
Output Ph A
Install
from Input
Install
from Input
See cabinet-to-cabinet
power connections detail
(Sheet 2)
Core 2Core 1
Core 3
See Detail E
(Sheet 3)
Input Cabinet
Bypass Cabinet
EMI Plates (3) {PN: 553579P1}
M6 Large Flat Washer (6) {PN: 09-43B00Z-00}
M6 Split Lock Washer (6) {PN: 09-36B00Z-00}
M6 x 25 Bolt (6) {PN: 09-02BL0Z-11}
HV Attenuator Burden Board
(Sheet 3)
FRONT
DC MID CORE 2
Remove hardware, install wires
from Core 3 then reuse hardware
Torque 180 in-lb (20.0 Nm)
Route wires through
bushing between cores
Input cabinet to Core 1 mounting
hardware; see Section A-A
Install 6 places
Core 2 to Core 3 mounting
hardware; install 6 places from Core 2
Core 3 to bypass
cabinet mounting
hardware; see
Section BB
Install 6 places
DC Pos (+) CORE 2
Remove hardware, install wires
from Core 3, then reuse hardware
Torque 180 in-lb (20.0 Nm)
Shipping Split Input
Shipping Split Core 1 & 2
Shipping Split Core 3
Shipping Split Bypass & Output
See Detail D
(Sheet 3)
Typical Cabinet To Cabinet Mounting Hardware
M10 Large Flat Washer (1) {PN: 09-43G00Z-00}
M10 Split Lock Washer (1) {PN: 09-36G00Z-00}
M10 x 30 Bolt (1) {PN: 09-02GL0Z-12}
Torque 240 in-lb (27 Nm)
SECTION A-A
SECTION B-B
DETAIL C
BATT -
BATT +
To Next Page
