Liebert EXL - Figure 39 Kickplate Installation-625-800 Kva Units

Vertiv
™
| Liebert® EXL™ 625-1100kVA Installation Manual | Rev. 3 | 02/17 59

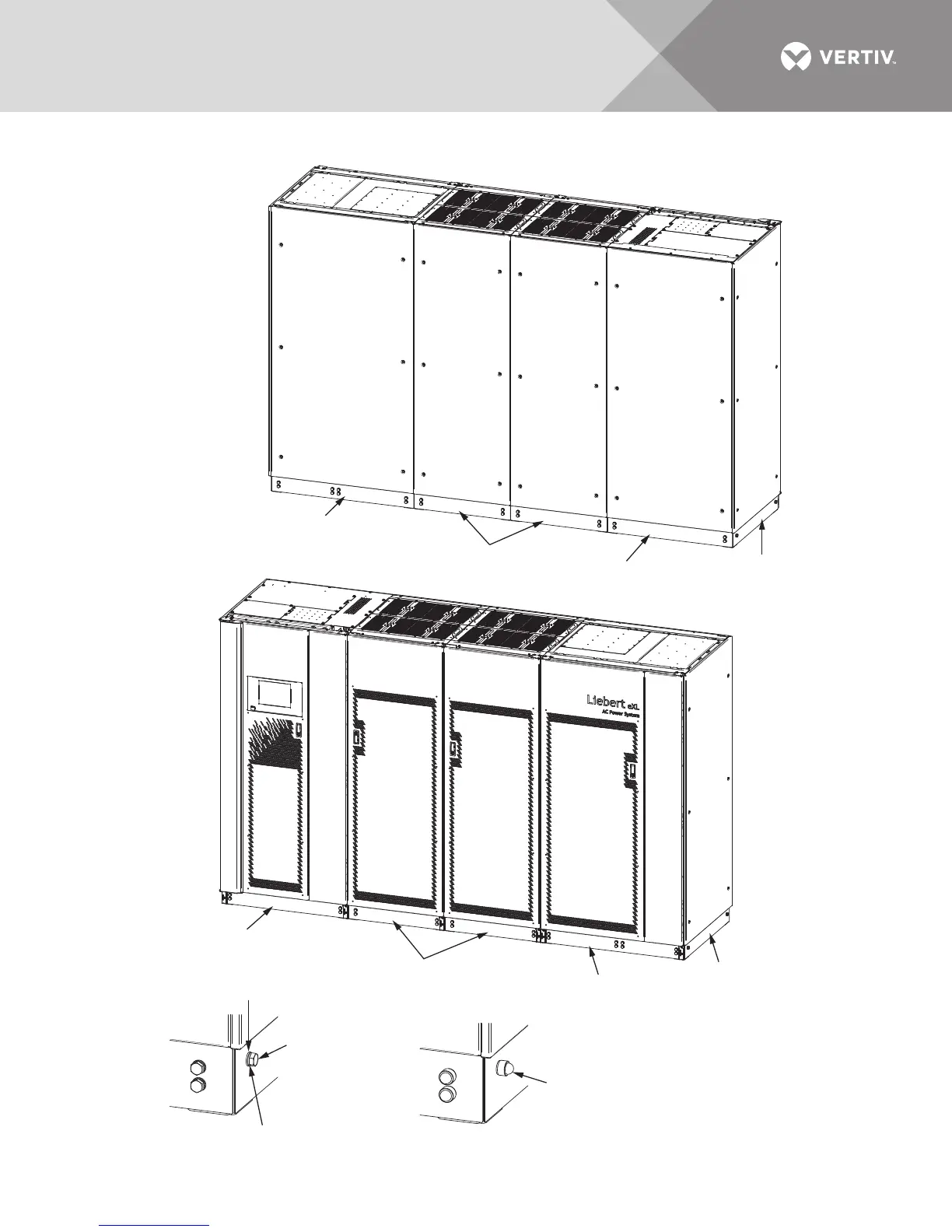

Figure 39 Kickplate installation—625-800kVA units
RIGHT HAND FRONT
LEFT HAND REAR
Panel Rear
Bottom
Panel Rear Bottom
Panel Rear
Bottom
Panel Side
Bottom
Panel Side
Bottom
553029P1
Pg. 1, Rev. 2
Panel Front Bottom
Panel Front
Bottom
Panel Front
Bottom
M10 Flat
Washer ZP, Typical
M10 Lock Washer, Split ZP, Typical
Screw Cap HH
M10‐1.5x25mm ZP
Hexagonal Cap
Black M10 (17mm)
Typical
