110 User Manual

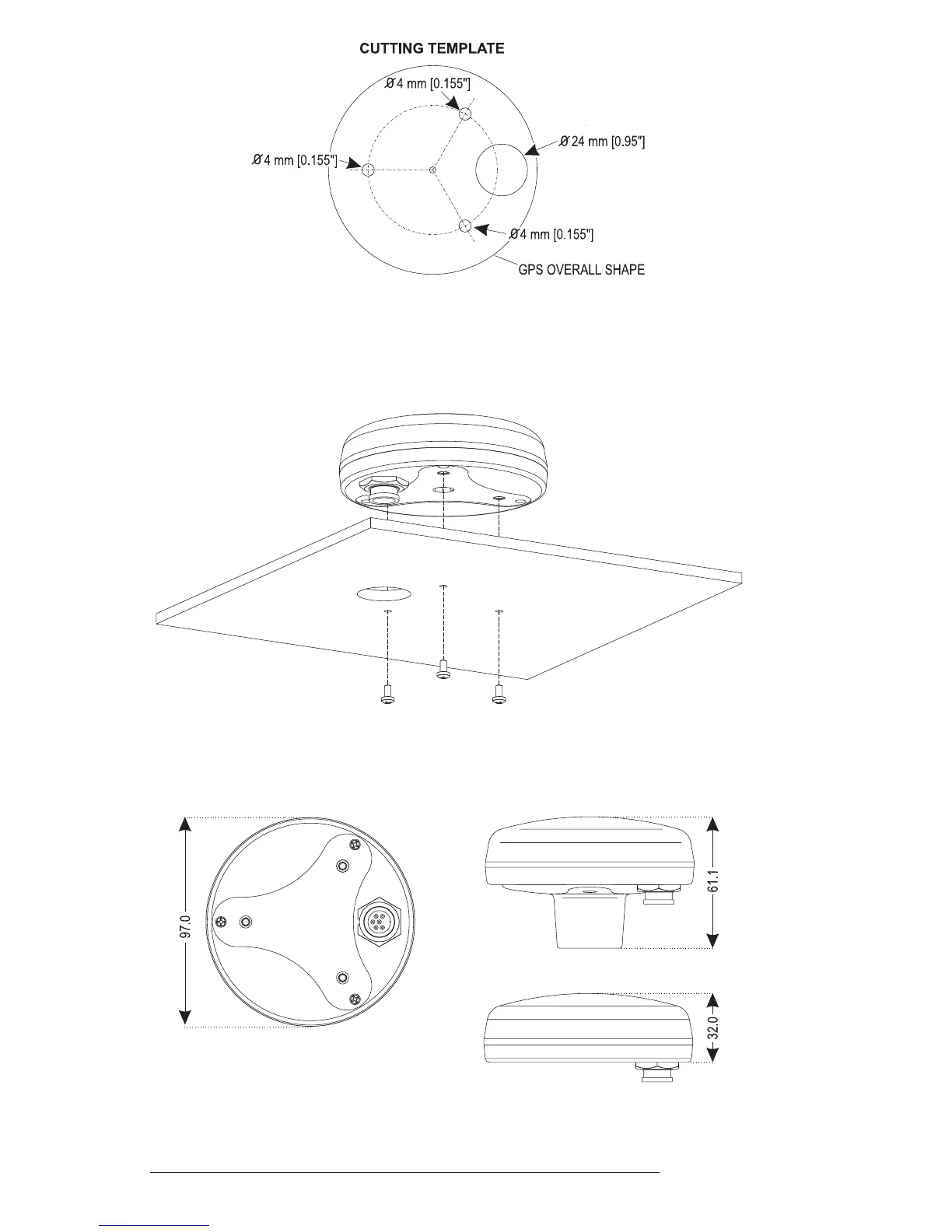

Fig.B.4.1a - Installing GPS Antenna (II)
3. Remove the template and let the cable go through the central hole.
4. Apply a small coat of RTV to the underside of the antenna.
5. Place the antenna and then screw it with the three M3 screws.
Fig.B.5.4.1b - Installing GPS Antenna (III)
B.4.2 DIMENSIONS
Fig.B.4.2 - GPS Antenna Dimensions
