24 User Manual
3. Set the C-COM for Port 1 as follows:
'MENU' + "BASIC SETTINGS" + 'ENTER' + "INPUT/OUTPUT" + 'ENTER' +
"PORT 1 INPUT" + 'ENTER' + "C-COM" + 'ENTER'
The C-COM can be connected also to the Port 2 and 3, in this case select the
format on the used port.
2.5.5 BEACON RECEIVER CONNECTION
2.5.5.1 For Chartplotter with External GPS Receiver
To connect a Differential Beacon Receiver see Fig. 2.5.1.
2.5.5.2 For Chartplotter with Internal GPS Receiver

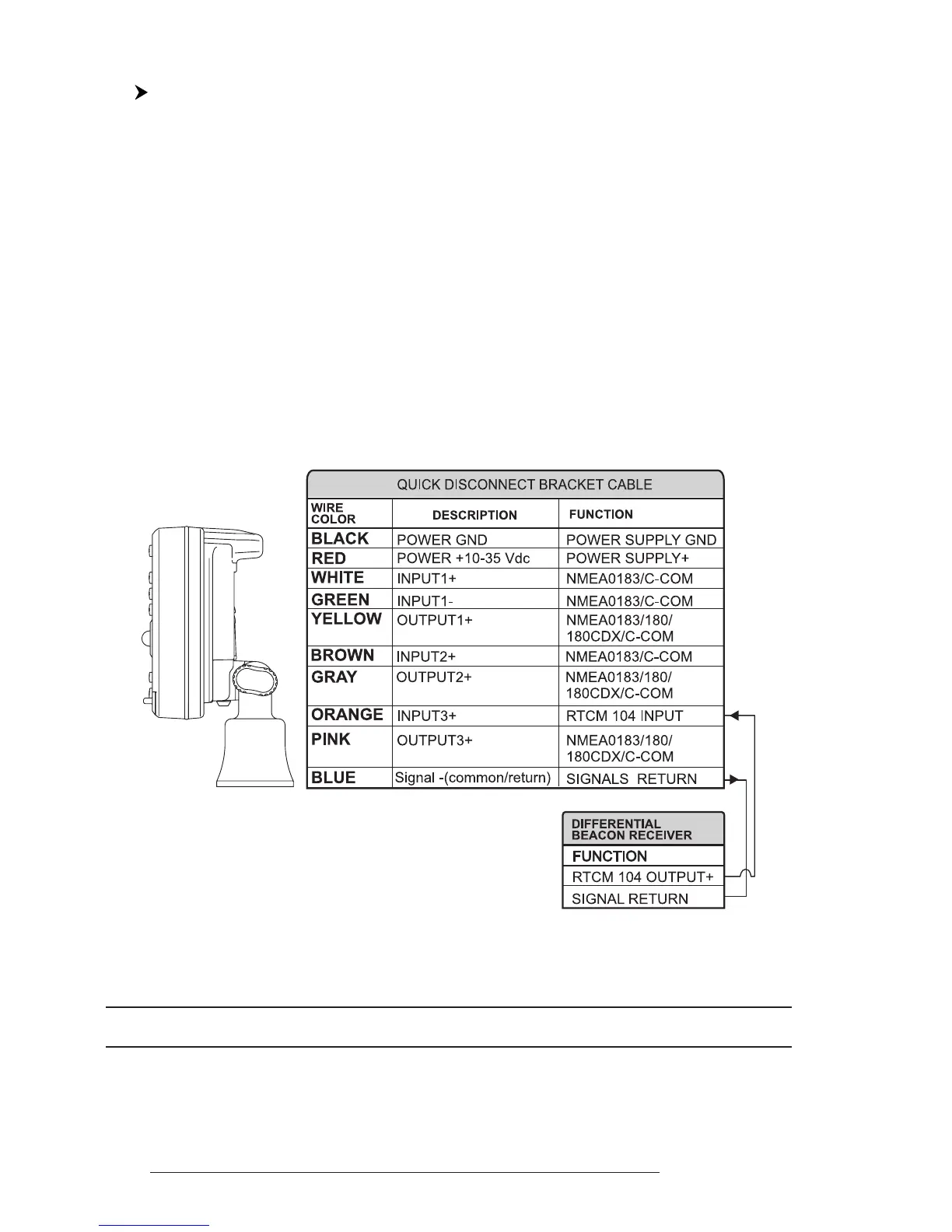

To connect a Differential Beacon Receiver see the following picture:
Fig. 2.5.5.2 - Beacon Receiver Connection
2.6 ADDITIONAL C-CARDS
The chartplotter uses two types of C-MAP cartridges: either a chart cartridge
