15
User Manual
• Color: Sun Light Viewable LCD (active area 5.6")
• Resolution: 320 x 240 pixels
Power consumption
• Gray Levels: 5 Watt, 10–35 Volt DC
• Color: 7.5 Watt, 10–35 Volt DC
Operating Temperature Range
• From 0°C to 55°C (from 32°F to 131°F)
Memory
• Non volatile with battery back-up
Keyboard
• Backlighted, silicon rubber
1.3 BASICS
The chartplotter is controlled by using ten keys. There is also a cursor key to
move a cursor across the screen. As you press a key, a single audio beep confirms the
key action; every time the key pressed is not valid, three rapid beeps sound indicates
that no response is available.

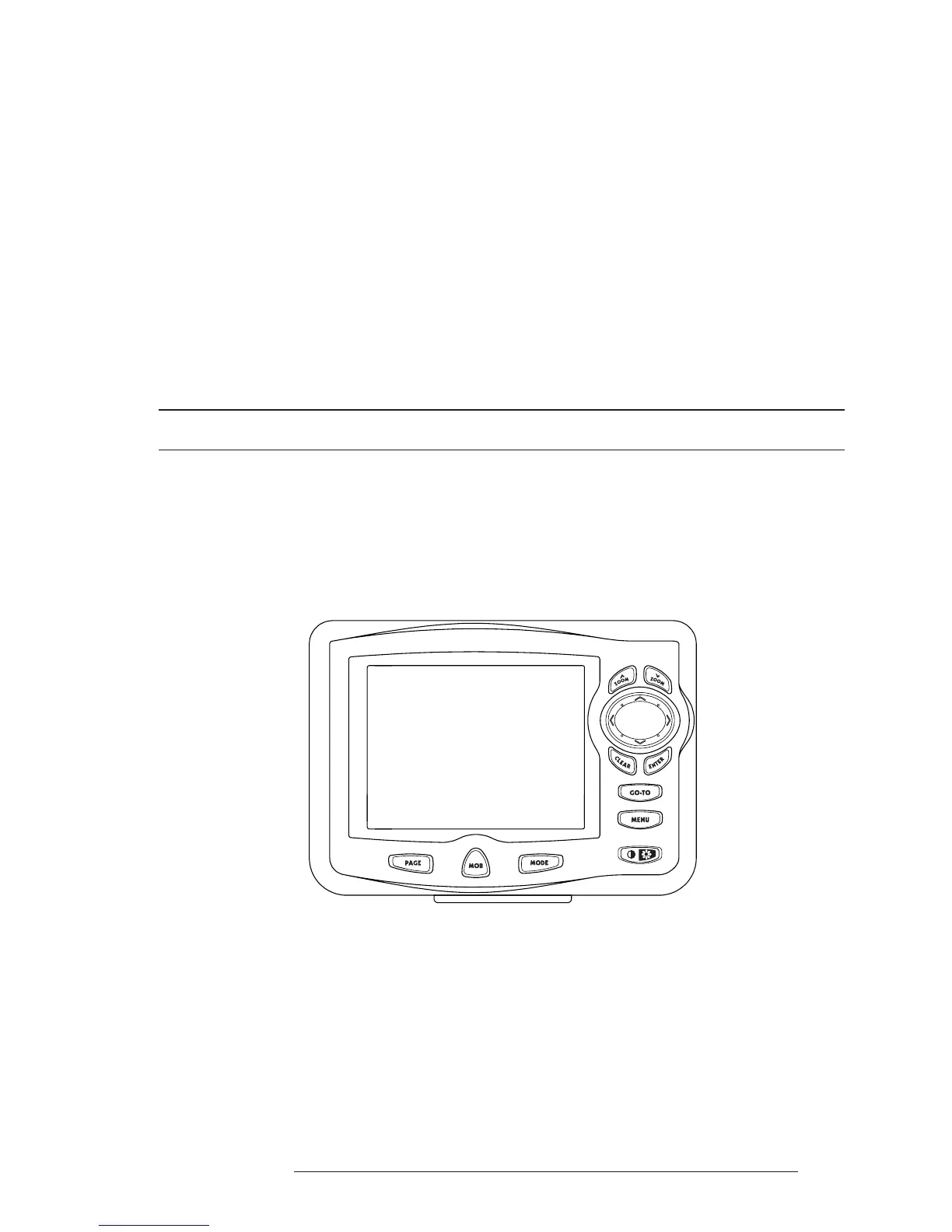

Fig. 1.3 - The chartplotter
