2.5.2 AUTOPILOT CONNECTION
To connect the Autopilot to the Port 2 see the following picture:

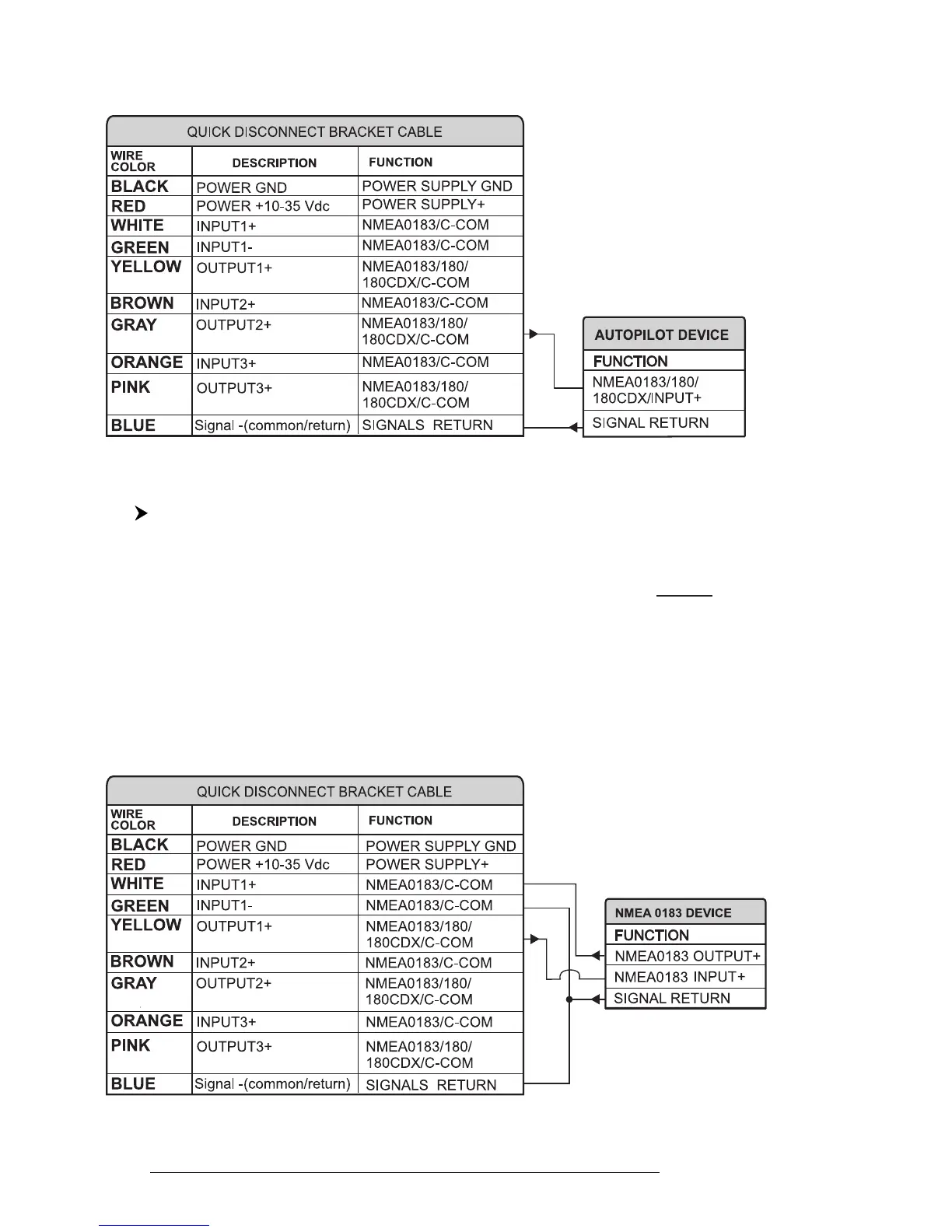

Fig. 2.5.2a - Autopilot Connections on Port 2
To choose your preferred setting follow the procedure:
'MENU' + "BASIC SETTINGS" + 'ENTER' + "INPUT/OUTPUT" + 'ENTER' +
"PORT 2 OUTPUT" + 'ENTER'
Then choose your preferred setting among the NMEA available settings
NMEA 0183 4800-N81-N, NMEA 0180, NMEA 0180/CDX (the default setting is
NMEA 0183 4800-N81-N) and press 'ENTER' to confirm.
The autopilot can be connected also to the Port 1 and 3, in this case select the
output format on the used port.
2.5.3 EXTERNAL NMEA CONNECTION
To connect the External NMEA to the Port 1 see the following picture:
Fig. 2.5.3 - External NMEA Connections on Port 1
