Lorenz Compact 7 Plus - 6 For the Technician

91
User Manual

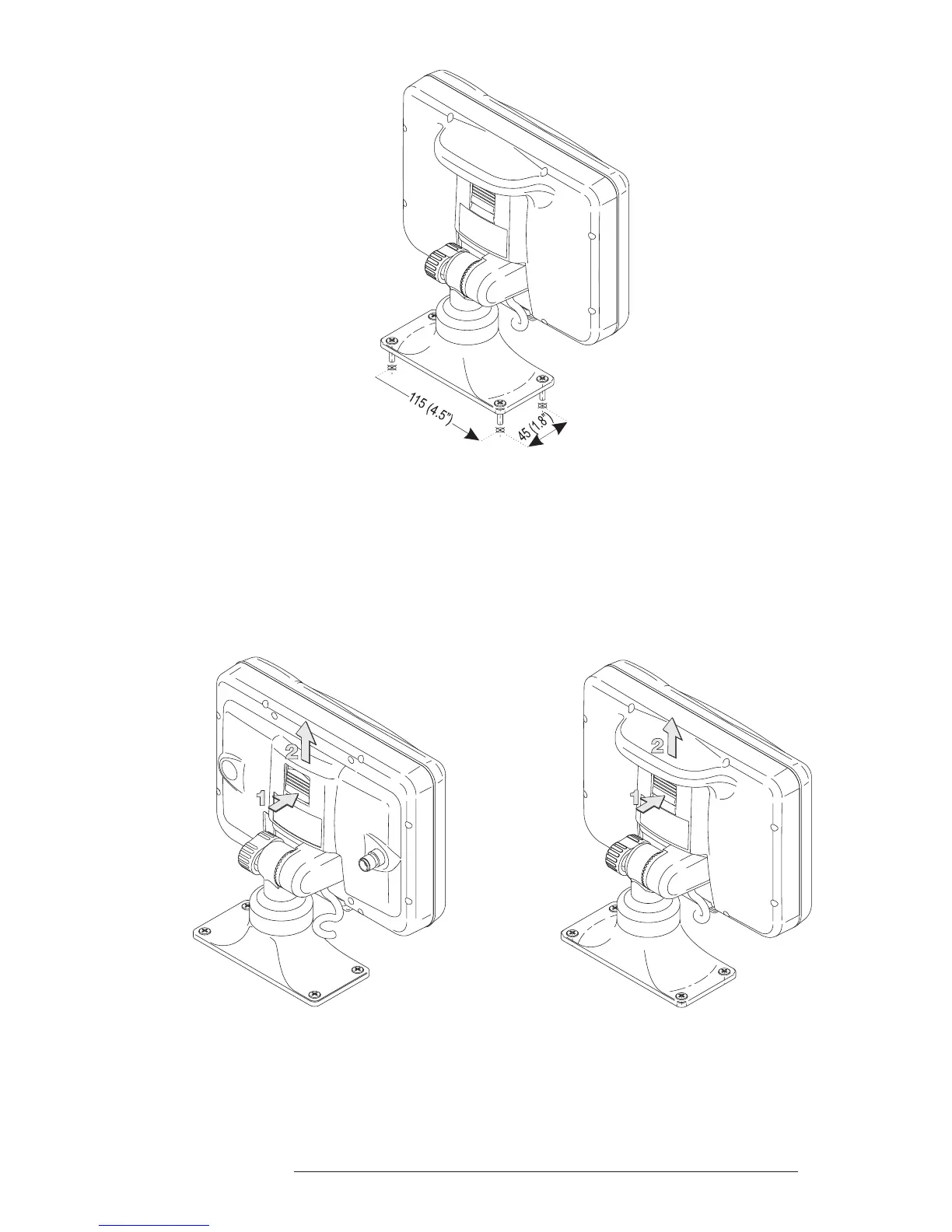

Fig. 6.2a - COMPACT models Installation
To remove the chartplotter press the bracket button (1) as indicated in the
following Fig. 6.2b (left side of the picture for EXCALIBUR models and right side of
the picture for COMPACT models) and then eject to the top the chart plotter (2).
Fig. 6.2b - EXCALIBUR models (left side) and COMPACT models (right side) removing
