Replacing the Hard Drive20

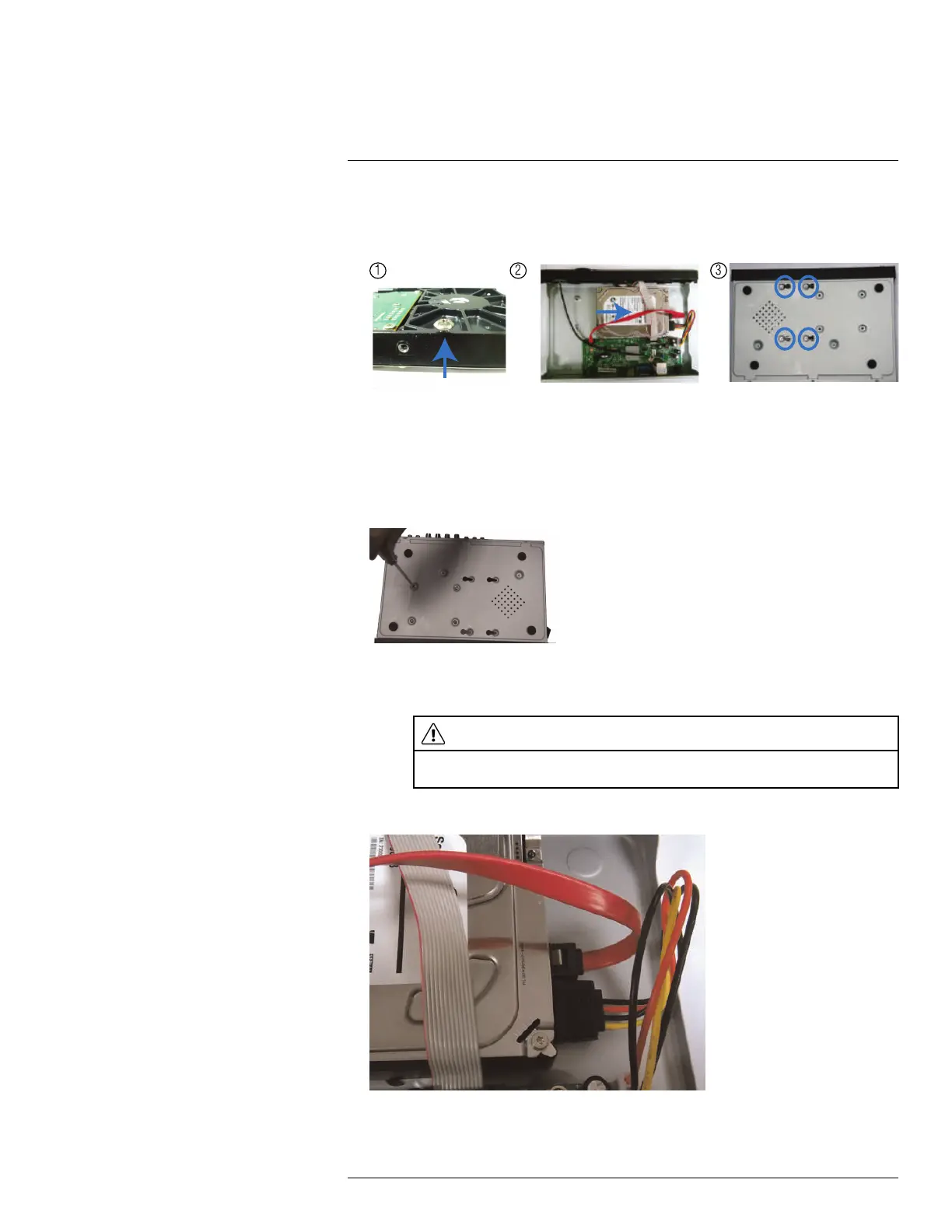

3. Next, install the hard drive. This step depends on if you are installing a 3.5” or 2.5” hard
drive.
If you are installing a 3.5” hard drive:
3.1. Insert 4 hard drive screws into the bottom of the hard drive and tighten them 1/2
of the way.
3.2. Place the hard drive in the screw slots with the power and data connectors fac-
ing left (if looking at the DVR from the front), and slide the hard drive into place.
3.3. Tighten the hard drive screws to secure the hard drive in place.
If you are installing a 2.5” hard drive:
3.1. Place the hard drive over the screw holes. Hold the hard drive in place and turn
the DVR over carefully. Insert 4 screws to secure the hard drive. Turn the DVR
back over.
WARNING
Make sure to hold the hard drive in place while inserting the hard drive screws and turning
the DVR to avoid damaging the DVR.
1. Connect the power and data cables.
2. Replace the DVR cover.
3. Replace the side and cover panel screws.
