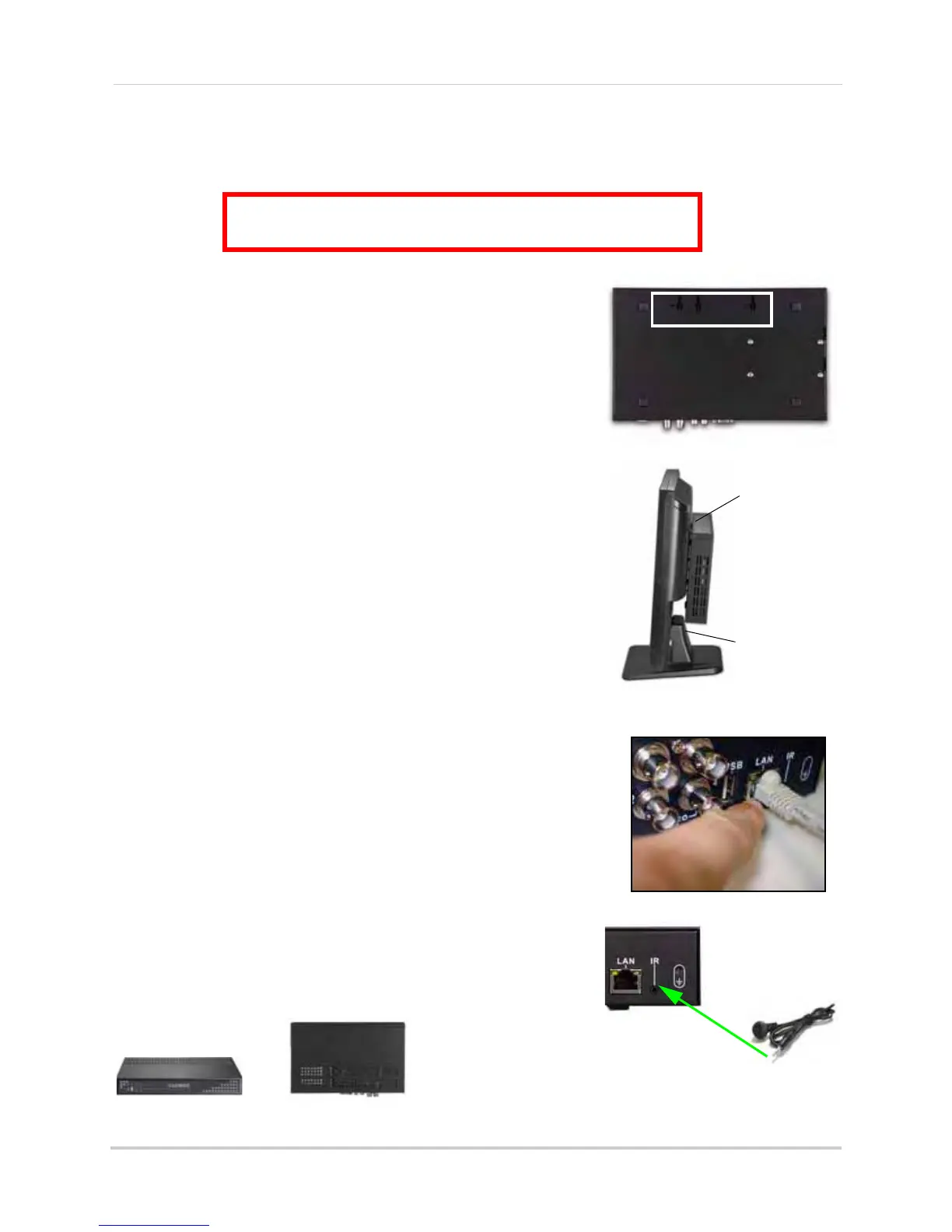

Getting Started
Basic Setup
The system is designed to mount to the back of most LCD monitors with a VESA mount. If desired,
you can mount it to a wall or leave the system in a standard horizontal position.
1. Mount the System
a. Screw the provided mounting screws into the two top
holes in the rear panel of your LCD monitor. Make sure
the screws are only 3/4 of the way in; this will allow
sufficient clearance to hang the system.
b. Carefully place the system (front panel facing up) over
the screws
and slide down into place.
2. Connect the Cameras
a. Connect BNC cameras to the BNC ports on the rear
panel.
3. Connect the Monitor
a. Connect the VGA / DVI cable (not included) from your LCD
monitor to the VGA port (4 CH) / DVI port (8/16 CH
only
) on
the rear panel of the system.
4. Connect the Ethernet cable
a. Connect the included Ethernet cable to the LAN port on
the rear panel of system; connect the other end of the
Ethernet cable to an empty LAN port on your router (not
included).
5. Connect the Flex-IR Extender
a. Connect the Flex-IR extender to the port on the rear
panel of the DVR. Position the Flex-IR extender near the
front of your monitor, or where it will receive a clear
signal from the remote control. Use a piece of
double-sided tape (included) to help secure the Flex-IR
Extender.
NOTE:
The Flex-IR Extender is not required for normal operation.
It may be necessary if there is not a clear line-of-sight between the
DVR and the remote control.
Optional Mounting
ATTENTION: You can only mount the system to an LCD
monitor that has a VESA mount and an independent stand.
Figure 1.3 Connect the Flex IR extender
Figure 1.1 Mount the system to the
monitor
Figure 1.2 Connect the Ethernet cable
Figure 1.0 Mounting holes on bottom panel
VESA mount
Independent
stand
Vertical (wall mount)
Horizontal (table, desk)
