Getting Started

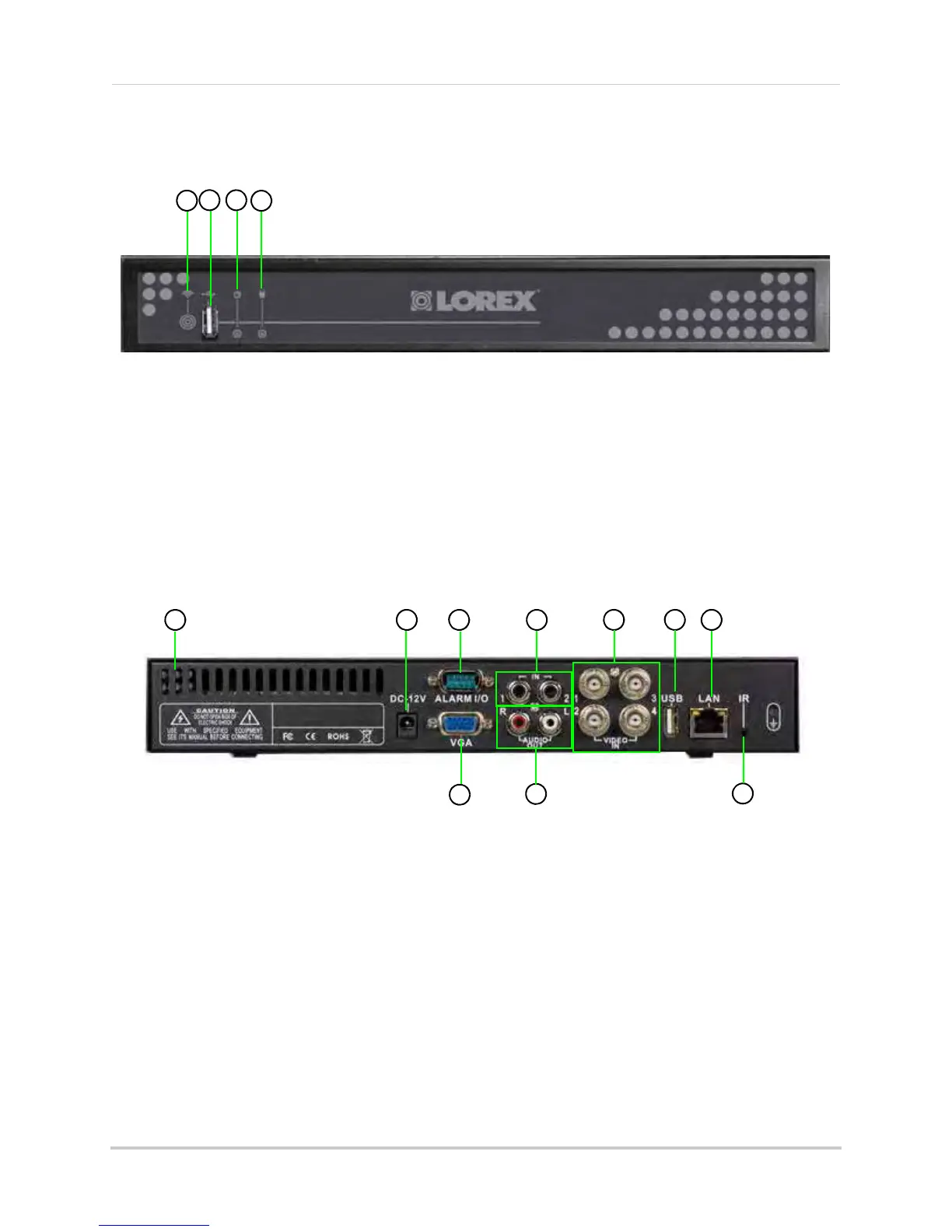

Front Panel
All models
1. IR Receiver: Internal IR receiver for the remote control.
2. USB port: Connect
a USB flash drive for data backup and firmware updates (download from
website).
3. Power Indicator: LED indic
at
or for system power. When system is powered on, LED is lit red.
4. HDD Indicator: LED indica
tor for internal hard drive. When in continuous recording mode,
LED pulses red.
Rear Panel
4-channel
1. Exhaust slots: Slots to let heat escape from the internal hard drive.
Do not block
. Allow for
proper ventilation.
2. DC 12V: Port f
or 12V DC 2.5 A power adapter (included).
3. Alarm I/O: Input/output port f
or alarm / relay (D-sub 9 connector required—not included).
4. Audio In: Input
ports for audio enabled cameras.
5. Video In: BNC input ports f
or 4 BNC cameras.
6. USB Port: Port f
or a USB mouse.
7. LAN: Networking port f
or a 10/100 Base-T RJ-45 network cable (included).
8. VGA: Port to connect a VGA monitor (not included)
9. Audio Out: Output f
or two audio channels.
10. IR: Port for the Flex-IR Extender.
