Getting Started

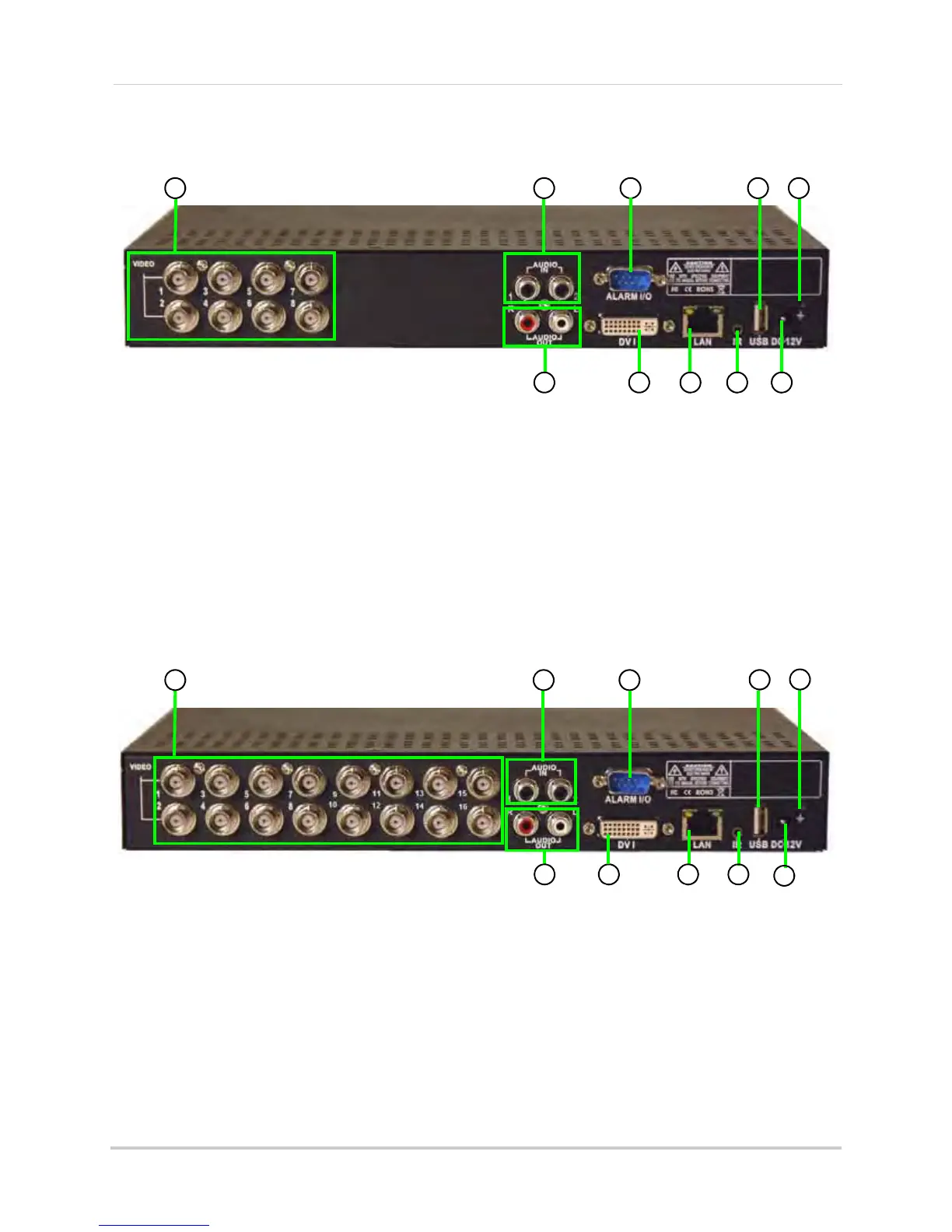

Rear Panel
8-channel
1. Video In: BNC input ports for eight BNC cameras.
2. Audio In: Input
ports for audio enabled cameras.
3. Alarm I/O: Input/output port f
or alarm / relay (D-sub 9 connector required—not included).
4. Audio Out: Output f
or two audio channels.
5. DVI: Port to connect a DVI monitor (not included).
6. LAN: Networking port f
or a 10/100 Base-T RJ-45 network cable (included).
7. IR: Port for the Flex-IR Extender.
8. USB Port: Port f
or a USB mouse.
9. DC 12V: Port f
or 12V DC 2.5 A power adapter (included).
10. GND: Ground hole.
16-channel
1. Video In: BNC input ports for 16 BNC cameras.
2. Audio In: Input
ports for audio enabled cameras.
3. Alarm I/O: Input/output port f
or alarm / relay (D-sub 9 connector required—not included).
4. Audio Out: Output f
or two audio channels.
5. DVI: Port to connect a DVI monitor (not included).
6. LAN: Networking port f
or a 10/100 Base-T RJ-45 network cable (included).
7. IR: Port for the Flex-IR Extender.
8. USB Port: Port f
or a USB mouse.
9. DC 12V: Port f
or 12V DC 2.5 A power adapter (included).
10. GND: Ground hole.
3
4
1 2
8
5
6
7
9
10
5
8
3
1 2
4
6
10
7
9
