65

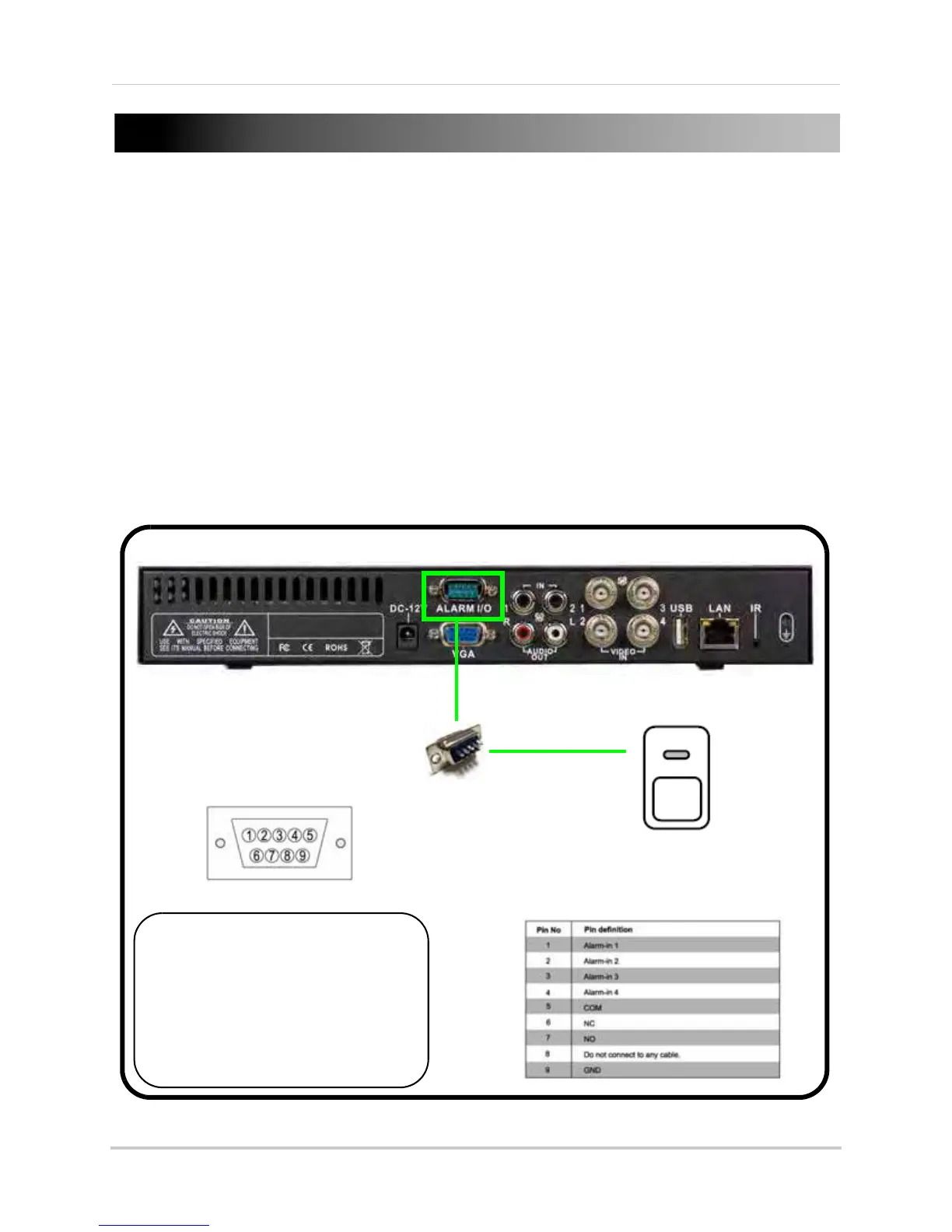

APPENDIX D: CONNECTING MOTION / ALARM
DEVICES
You can enable Motion Detection and Alarm control from the Main Menu. You can also connect
additional motion sensor devices to the system (i.e. motion sensors, door/window sensors) with a
D-sub 9 connector (not included). Use a motion detector or sensor to send a signal to the system
to begin camera viewing and recording on the matching camera channel (when enabled in the
Menu).
NOTE:
Some soldering is required when using a D-sub 9 connector.
Installing a Sensor
To connect an external alarm sensor to the system:
1. Connect a D-SUB 9 connector (not included) t
o the ALARM I/O port on the rear panel.
2. Connect Alarm-In wires to pins 1~4; connect NC wi
re to pin 6 connect NO open to pin 7.
3. Connect the ground wire to pin 9.
DVR
D-SUB 9 CONNECTOR
(Not Included)
SENSOR
(Not Included)
D-SUB 9 CONNECTOR
Pins 1-4
: Alarm input terminals
receive a signal from a device (i.e. Door
or Window Sensor).
Pins 6, 7: NO / NC: Alarm Output
Terminals send a signal to another
device when an alarm input is
detected.
