T
ablet
Apps
17
1.
F
rom
the
home
screen,
tap
.
2.
T
ap
CREA
TE
GROUP
.
The
FLIR
Secure™
app
displa
ys
all
cameras
that
are
con-
nected
to
your
FLIR
Secure™
account.

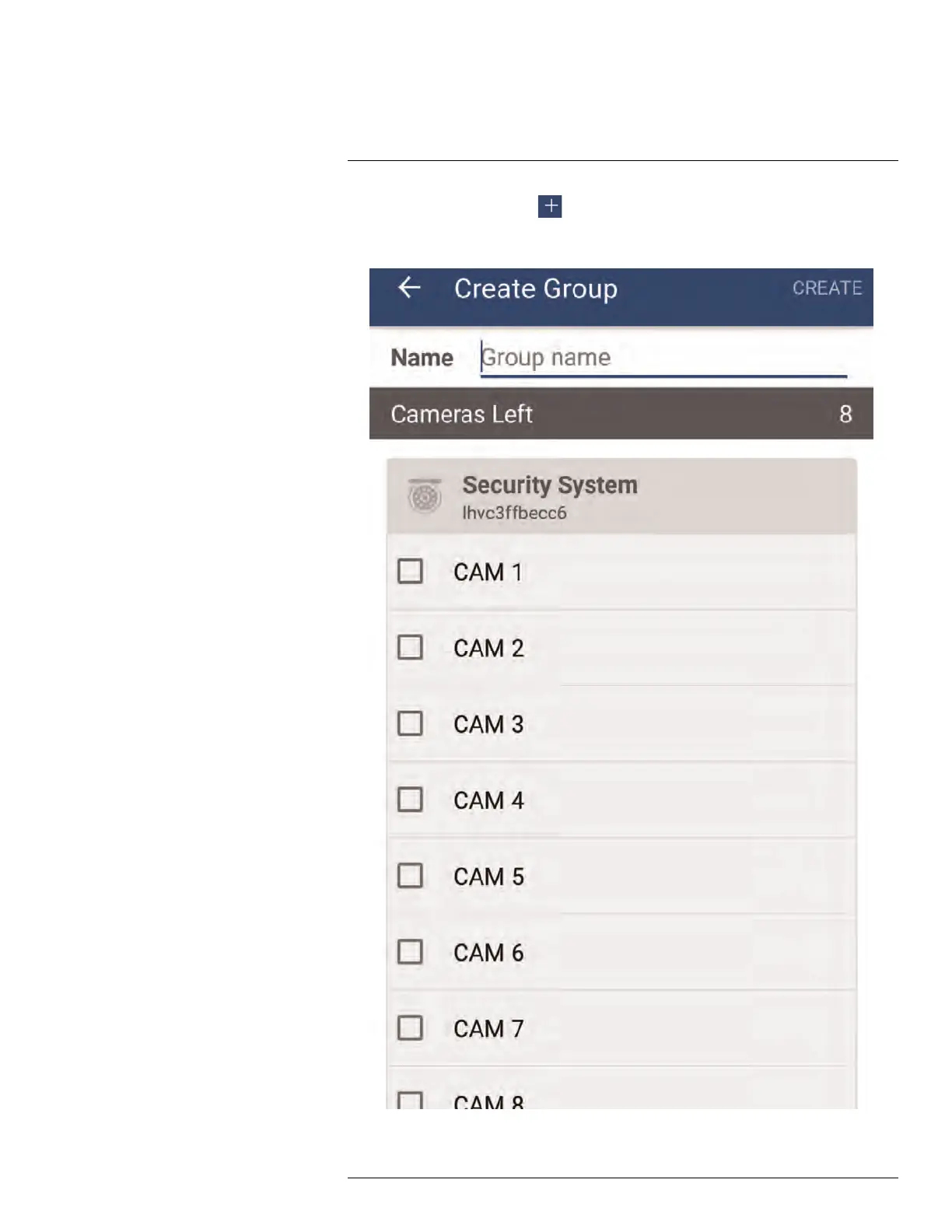

3.
T
ap
the
Name
text
box
and
enter
a
group
name
of
y
our
choice.
#LX400078;
r
.36882/36882;
en-US
121
128
130
Table of Contents
Default Chapter
5
Table of Contents
5
1 Important Safeguards
9
General Precautions
9
Installation
9
Service
11
Use
11
2 Getting Started (LNR600 Series)
12
3 Front Panel (LNR600 Series)
13
4 Rear Panel (LNR600 Series)
14
5 Basic Setup (LNR600 Series)
15
Step 1: Connect the IP Cameras
15
Step 2: Connect the Mouse
15
Step 3: Connect the Ethernet Cable
15
Step 4: Connect the Monitor
16
Step 5: Connect the Power Adapter to Power the NVR
16
Step 6: Upgrade Firmware to Latest Version (if Available)
16
Step 7: Verify Camera Image
17
Step 8: Set the Time
17
Default System Password & Port Numbers
17
Quick Access to System Information
17
Connecting Cameras to the Local Area Network (LAN)
18
6 Mouse Control
21
7 Remote Control
22
Setting the Remote Control Address
23
8 Using the System
24
On-Screen Display
24
Using the Quick Menu
25
Adjusting Camera Image Settings
25
Using the Navigation Bar
27
Using the Camera Toolbar
27
Using Instant Playback
28
Using Digital Zoom in Live Display
28
Using Real-Time Backup
28
Using the Virtual Keyboard
29
Adjusting Camera Zoom & Focus
29
9 Setting the Time
31
10 Recording
32
Video Recording Types
32
Main Stream and Sub Stream
32
Setting up Scheduled or Manual Recording
32
Configuring Hard Drive Overwrite
33
11 Search (Playback)
34
Playing Back Video from the Hard Drive
34
Playback Controls
35
Playing Back from a USB Drive
35
Using Smart Search
36
12 Backup
37
Formatting the USB Thumb Drive
37
Backing up Video
38
Using Video Clip Backup
38
Viewing Backup Files
39
Viewing Backup Files on PC
39
Viewing Backup Files on Mac
42
13 Managing Passwords and User Accounts
45
Changing Passwords
45
Adding Users
45
Modifying Users
46
Deleting Users
46
Account Groups
47
Adding Groups
47
Modifying Groups
48
Deleting Groups
48
14 Using the Main Menu
49
Camera
49
Remote Device
49
Viewing Camera Status
50
Viewing Camera Firmware Versions
50
Upgrading Camera Firmware
50
Recording
51
Configuring Recording Quality
51
Configuring Snapshot Recording Settings
53
Configuring Video Overlay Settings
54
Creating Custom Channel Names
55
Info
56
HDD Info
56
Record Info
57
Version
57
Event Info
58
Online Users
58
Load
59
Test
59
Bps
59
Log
60
Setting
60
Network
61
Selecting DHCP or Static IP Address (TCP/IP)
61
Configuring System Ports (Connection)
61
Configuring DDNS Settings
62
Configuring Email Alerts
63
Configuring Switch Settings (Advanced)
64
Event
65
Configuring Motion Detection
65
Configuring Video Loss Settings
67
Configuring Tampering Settings
68
Configuring Alarm Input Devices
69
Controlling Alarm Output Devices
70
Configuring Hard Drive Warnings
71
Configuring Network Warnings
71
Storage
72
Configuring the Video Recording Schedule
72
Configuring Pre-Recording
73
Configuring the Snapshot Schedule
74
Configuring Hard Drive Groups (Advanced)
74
Configuring Holidays
76
Formatting the Hard Drive
77
Configuring Hard Drive Type
78
Setting up Hard Drive Mirroring (Advanced)
78
Configuring General System Settings
79
Setting the Monitor Resolution (Display)
80
Saving Your System Configuration to a USB Thumb Drive
81
Setting the System to Factory Defaults
82
Upgrading Firmware from USB
84
Shutdown
85
15 Connecting to Your System over the Internet on PC or Mac
86
System Requirements
86
Step 1 of 3: Connect Your System to Your Router
86
Step 2 of 3: Obtain the System's Device ID
87
Step 3 of 3: Connect to the System over the Internet
87
16 Using FLIR Cloud™ Client for PC or Mac
91
Home Page
91
Live View
91
Live View Controls
92
Opening Live View in Multiple Monitors
93
Controlling PTZ Cameras
94
PTZ Presets
95
PTZ Tours
96
PTZ Pattern
97
PTZ Scan
98
PTZ Pan
98
Playback
98
Playback Controls
100
Downloading Video to Your Computer Hard Drive
101
Alarm
102
Log
103
E-Map
104
Devices
106
Device Config
107
Alarm CFG
107
Tour & Task
110
Account
111
Managing User Accounts
111
Managing Roles
113
General
114
Basic
114
File
114
Alarm Prompt
115
Version
116
17 Connecting to Your System Using Smartphone or Tablet Apps
117
FLIR Secure
117
Connect to Your Mobile Device Using FLIR Secure
117
Iphone
118
Android Phone
127
18 DDNS Setup (Advanced)
137
Accessing Your System Within a Local Network (LAN)
137
Step 1 of 3: Connect Your System to Your Router
137
Step 2 of 3: Obtain the System's Local IP Address
138
Step 3 of 3: Connect to the System's Local IP Address
138
DDNS Setup-Access Your System Remotely over the Internet
140
Step 1 of 4: Port Forwarding
141
Step 2 of 4: Create a DDNS Account
141
Step 3 of 4: Enable DDNS on the System
145
Step 4 of 4: Connect to the System's DDNS Address
145
19 Connecting a PTZ Camera (LNR600 Series)
149
Controlling a PTZ Camera (Local NVR)
149
Advanced PTZ Controls
150
Presets
150
Tours
151
Pattern
151
Auto Scan
152
20 LNR600 Series Hard Drive Installation
153
Installing a Hard Drive
153
Removing the Hard Drive
154
Formatting Hard Drives
155
21 Recording Audio
157
Step 1 of 2: Connecting an Audio-Capable Camera
157
Step 2 of 2: Configuring Audio Recording
158
22 Troubleshooting
159
23 LNR600 Series System Specifications
161
System
161
Inputs/Outputs
161
Display
161
Recording
161
Playback and Backup
162
Storage & Archive
162
Connectivity
162
General
162
Recording Resolution (Pixels) & Maximum Speed (FPS - Frames Per Second)
163
24 Notices
164
FCC/IC Notice
164
Modification
164
Rohs
164
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Lorex LNR600 Series and is the answer not in the manual?
Ask a question
