3.2 Guide to first starting of ALIEM
ALIEM comes with a factory configuration: set to acquire the internal temperature measurement (the related
sensor is built-in) and the battery level. Use the 3DOM software to modify the configuration according to
your needs (see §2.1.1).
Watch the following video tutorials related to the topics of this chapter.
Alpha-Log – ALIEM: Powering
ALIEM
Alpha-Log #10 - Powering ALIEM - YouTube
Alpha-Log – ALIEM: ALIEM
connection to PC by RS-232 and
USB adapter and how to place new
Instrument in 3DOM program
Alpha-Log #7 - ALIEM connection to PC and new
instrument in 3DOM program - YouTube
Alpha-Log – ALIEM: New
configuration file in ALIEM module
using 3 DOM
Alpha-Log #9 - ALIEM sensors configuration
starting from empty configuration - YouTube
Alpha-Log – ALIEM: Upload
configuration from 3DOM program
to ALIEM module
Alpha-Log #12 - Upload configuration from
3DOM program to ALIEM module - YouTube
Alpha-Log – ALIEM: Save ALIEM
configurations as template and
upload it to another ALIEM unit
Alpha-Log #13 - Save ALIEM configuration as
template and upload it to another ALIEM unit -
YouTube

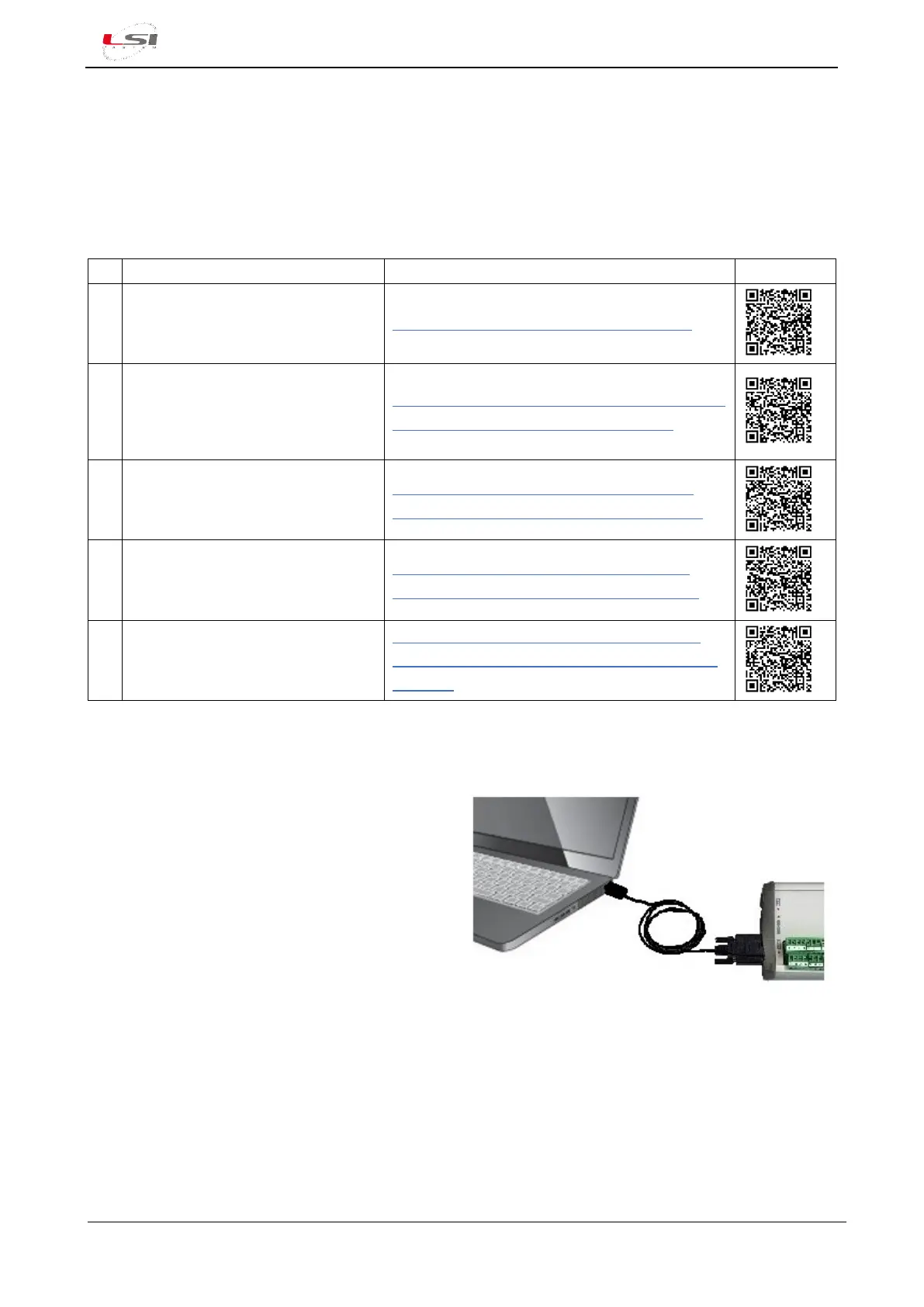

3.2.1 Connection to PC
To connect ALIEM to PC:
1. Insert the ELA105 serial cable to the ALIEM
Com1(2) and to the RS-232 serial port of your
PC. If the PC does not have a RS-232 serial port,
use the USB/RS-232 adapter provided. In this
case, allow the installation of the device driver.
2. Connect the 12 Vdc power supply to the
terminal (64-, 65+) in the terminal block (6).
3. Turn on ALIEM with the On/Off switch (1).
In order to be configured, ALIEM must be inserted in 3DOM as a new Instrument.
