LSI GS550 User Manual

16 The GS550 System
Display Settings
Program the display for operator preferences in menu 3) Display Settings.
Weight Units
Important! The steps of boom length, load radius, and rated capacity may differ on
rated capacity charts prepared in different units for the same crane.
The weight units for load display may be selected according to operator preference. Length units
are associated with weight units by default; see the table below.
1. Press Menu → Next → Next → Enter to go to menu 3A) Weight units.
2. Use Up and Down to select the weight units for load display.
3. Press Next to advance to the language adjustment page or press Exit twice to return to the
operation display.
Table: Weight Units
Unit Notes Equivalent Weight Length Unit
Pound (lb) 1 lb 0.4536 kg Foot (ft.)
Kilogram (kg) 2.205 lb 1 kg Metre (m)
Short ton (T) United States 2000 lb 907.2 kg Foot (ft.)
Long ton (T) United Kingdom 2240 lb 1016 kg Foot (ft.)
Tonne (t) International System (SI) 2205 lb 1000 kg Metre (m)
Select hoist
1) Parts of
line
2) Crane
Rigging
Chart
Rigging ok
MainBoom
Jib30ft
Jib40ft
Jib50ft
Up/Down
main
aux
aux 2
Up/Down
Operation Screen
1
2
3
4
5

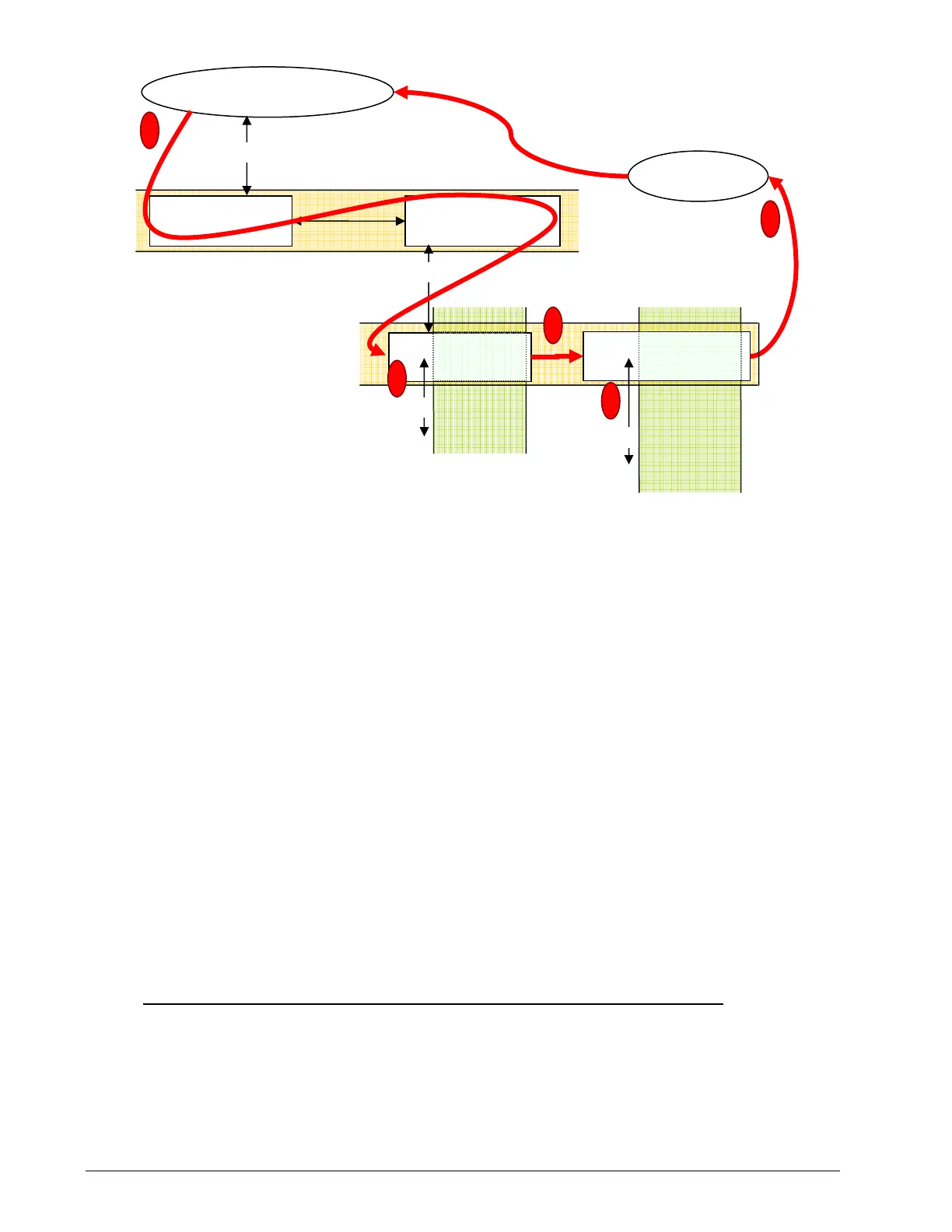

Figure:
T
he chart wizard
–
f
ollow steps 1 through 5 to select the capacity char
t
Menu
Next
Enter
Next
Next
