68 The GS550 System
Note: PDA_NAME is the actual name given to the PDA.
4. Select the log file to open. Only .pdb files generated by the LSI software in the Portable
Download Tool are supported.
Example:
A typical file name for a log file generated by a GS550 data logger
LSI_08_13_2004_15_31_48.PDB
Full Report
To export the full report to Excel, click on the Full Report button in the tool bar.
Table: Full report column headings
Column Description
Event Record trigger*
Date Event date stamp.
Time Event time stamp.
System Units Length units (metric or US) and weight units at the time of the event
Battery Voltage Display power supply voltage at the time of the event.
Temperature Internal temperature of the display
Firm. Version Display firmware version at the time of the event
Sensor # 1 Sensor type: the sensor number corresponds to the sensor list programmed in the GS550
Sensor Status Sensor was active or inactive at the time of the event.
Sensor Battery Sensor battery level
Value Sensor value
* Examples: Crane start-up, sensor alarm. The beginning and end of sensor alarms are indicated as “in” and
“out”: examples: “overload in”, “overload out”.
Wind Report
Important! The wind report is only available when the data has been recorded with the
data logger in the automatic recording mode.
To create a wind report in Excel, click on the Wind Report button in the tool bar.

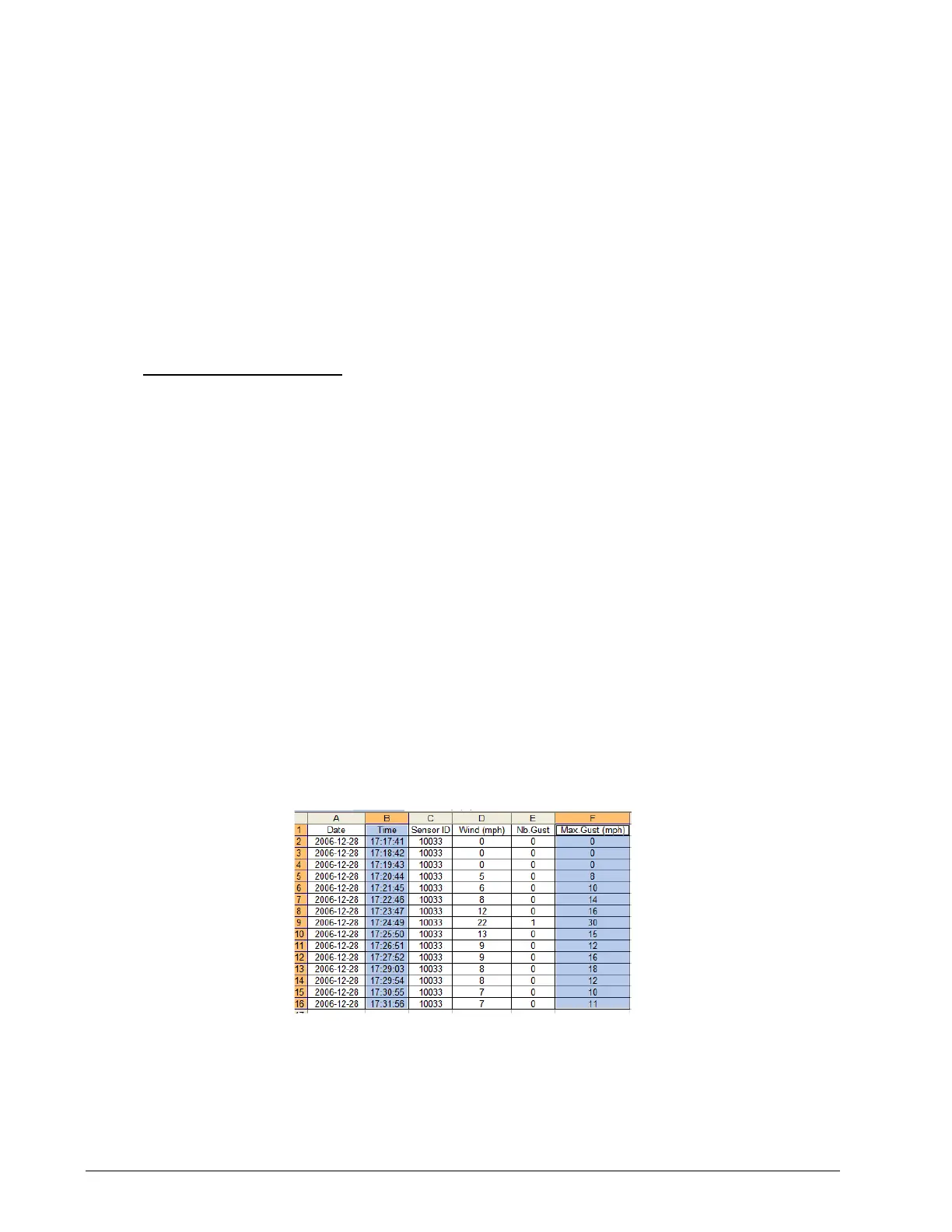

Figure: Excerpt of a Wind Report
