LSI GS550 - GS550 System Operation; Display and Controls

Operation 7
Operation
Display GS550
The GS550 displays detailed information on the backlit, two lines liquid crystal display (LCD).
Additional information including warnings, alarms, and radio status is communicated by the display
lights and the display buzzer.
Parts of line
Hoist indicator
No tare indicator
Load
Weight units

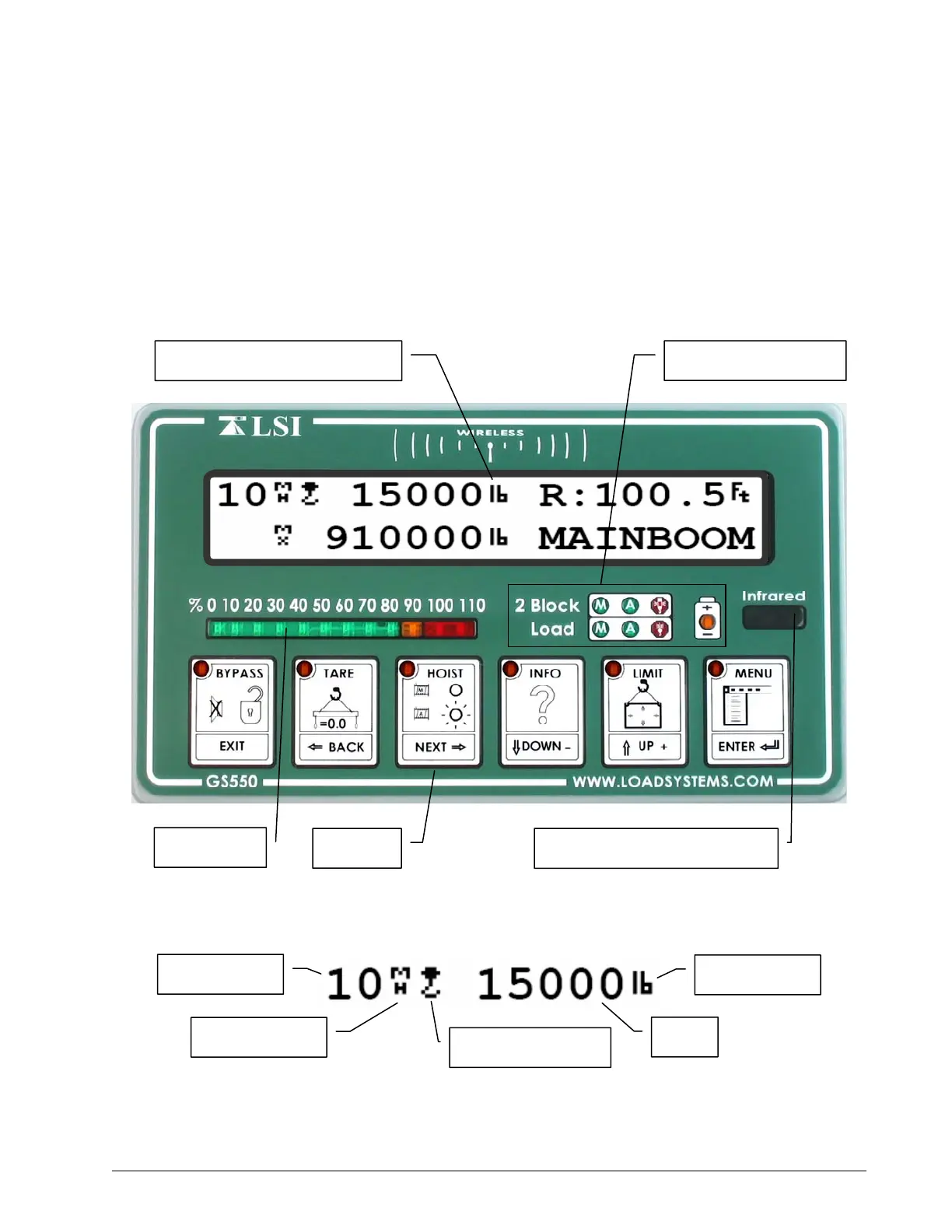

Figure: GS550 load displa
y
1 12500 R:24.2
27000 Jib 30ft
Figure: GS550 front
v
ie
w
Liquid Crystal Display (LCD)
Infrared communication port
Bar graph
Keypad
Sensor status lights
