Chapter 12 Installation and Wiring
12 −10

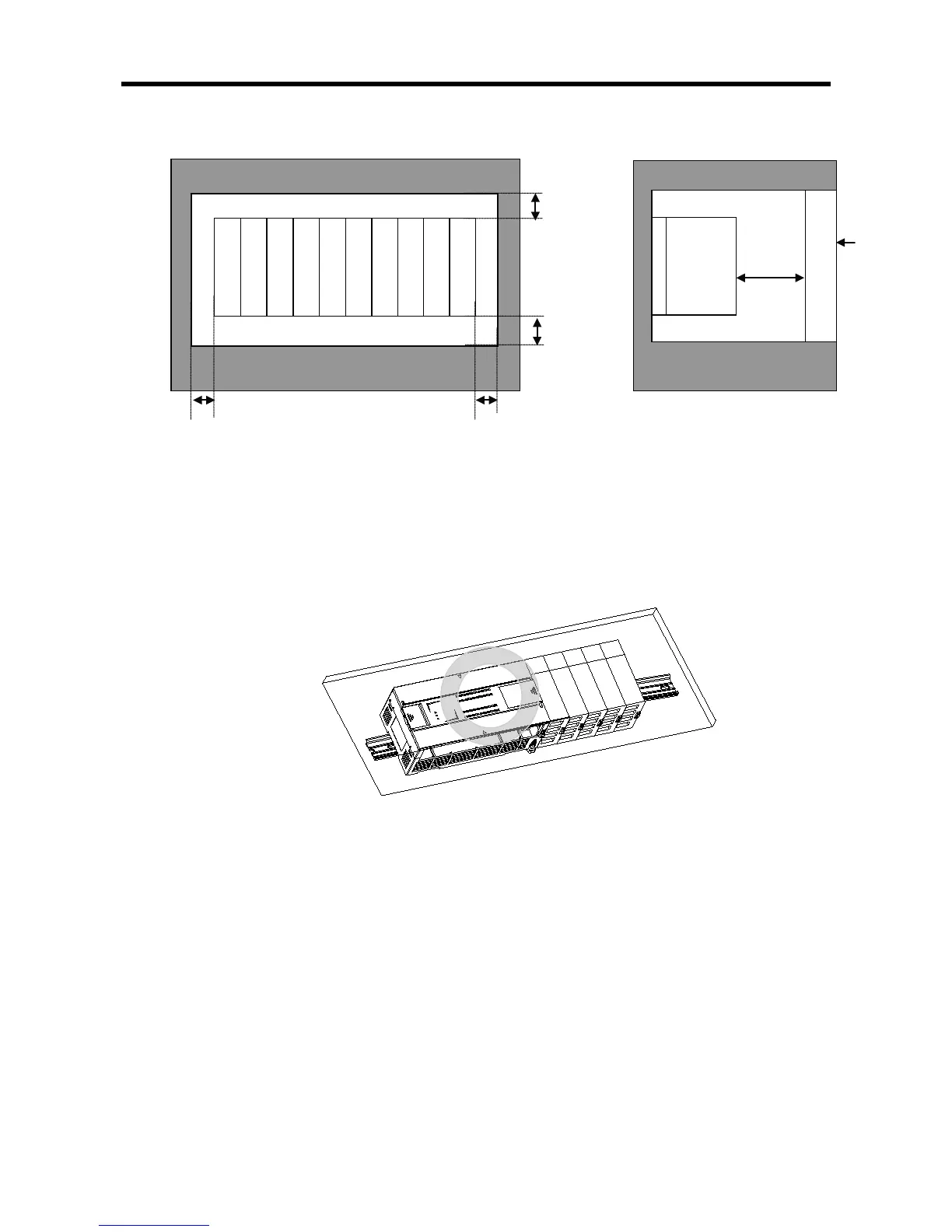

(3) Module equipment location
Keep the following distance between module and structure or part for well ventilation and easy
detachment and attachment.
*1 : In case height of wiring duct is less than 50 mm (except this 40mm or above)
*2 : In case of equipping cable without removing near module, 20mm or above
*3 : In case of connector type, 80mm or above
(4) Module equipment direction
(a) For easy ventilation, install like the following figure.
P
a
n
e
l
PLC
20 ㎜ or above
*3
30 ㎜ or above
*1
30 ㎜ or above
*1
5 ㎜ or above 5 ㎜ or above
*1
To Next Page
