Chapter 5 Remote Connection
5-10
b) Select depth as remote 1 and click “Settings” for detail setting. In the detail window, set
station number. AS for station number, input station number set in Cnet I/F module to
execute remote connection. Figure is case Cnet station number is set as 1.

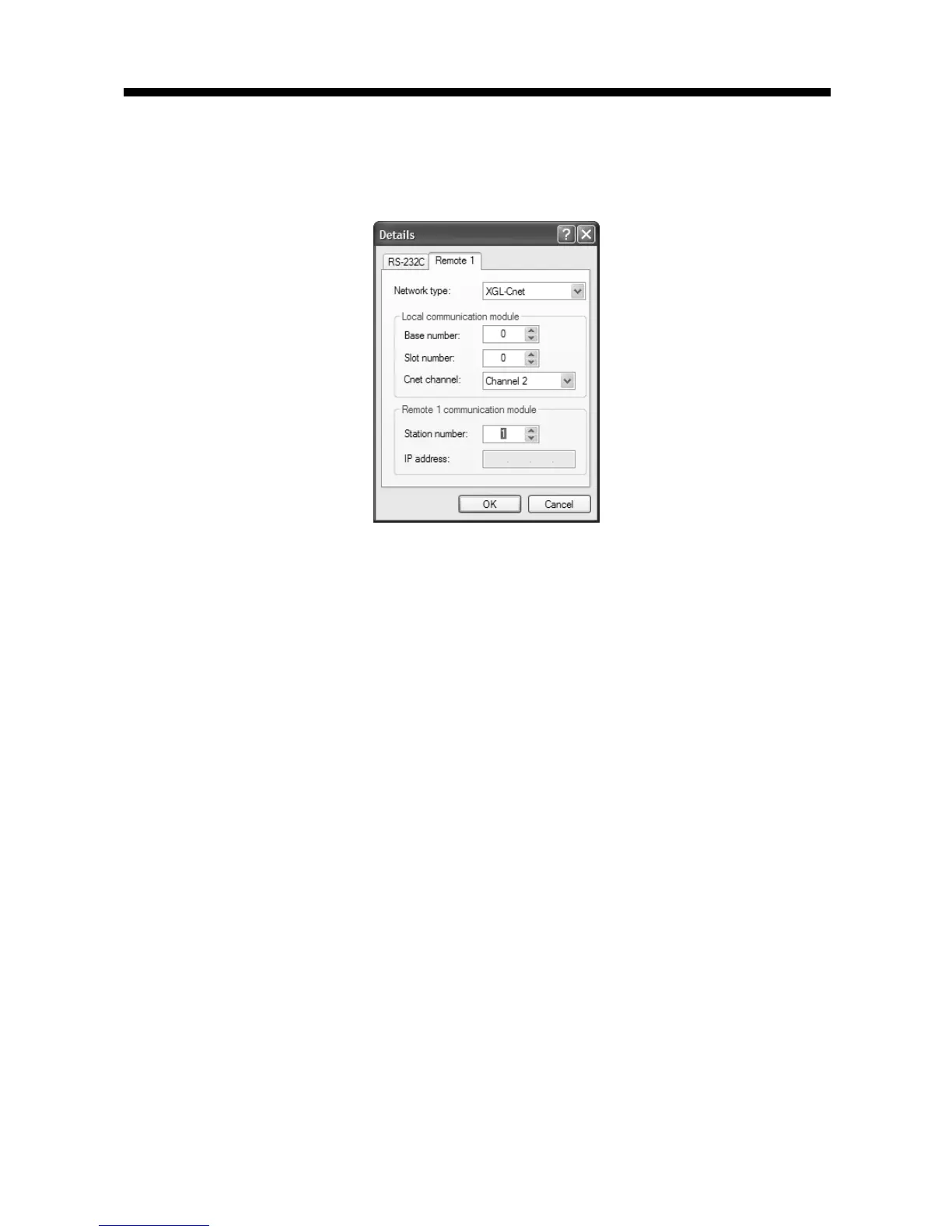

[Figure 5.1.13] XG5000 remote 1 connection setting screen
c) XG5000 tries remote connection and in case remote connection is complete, online related
function is activated.
d) In this case, remote 1 connection is complete, it is same status with where it is connected by
RS-232C cable. Here you can use all functions of online menu.
(c) In case you want to disconnect remote connection, select disconnect at online menu.
Disconnection menu box shows and remote connection is disconnected.
In case disconnection is done normally, Cnet I/F module and XG5000 are converted into initial
mode. In case of reconnection, retry from (a) for reconnection.
