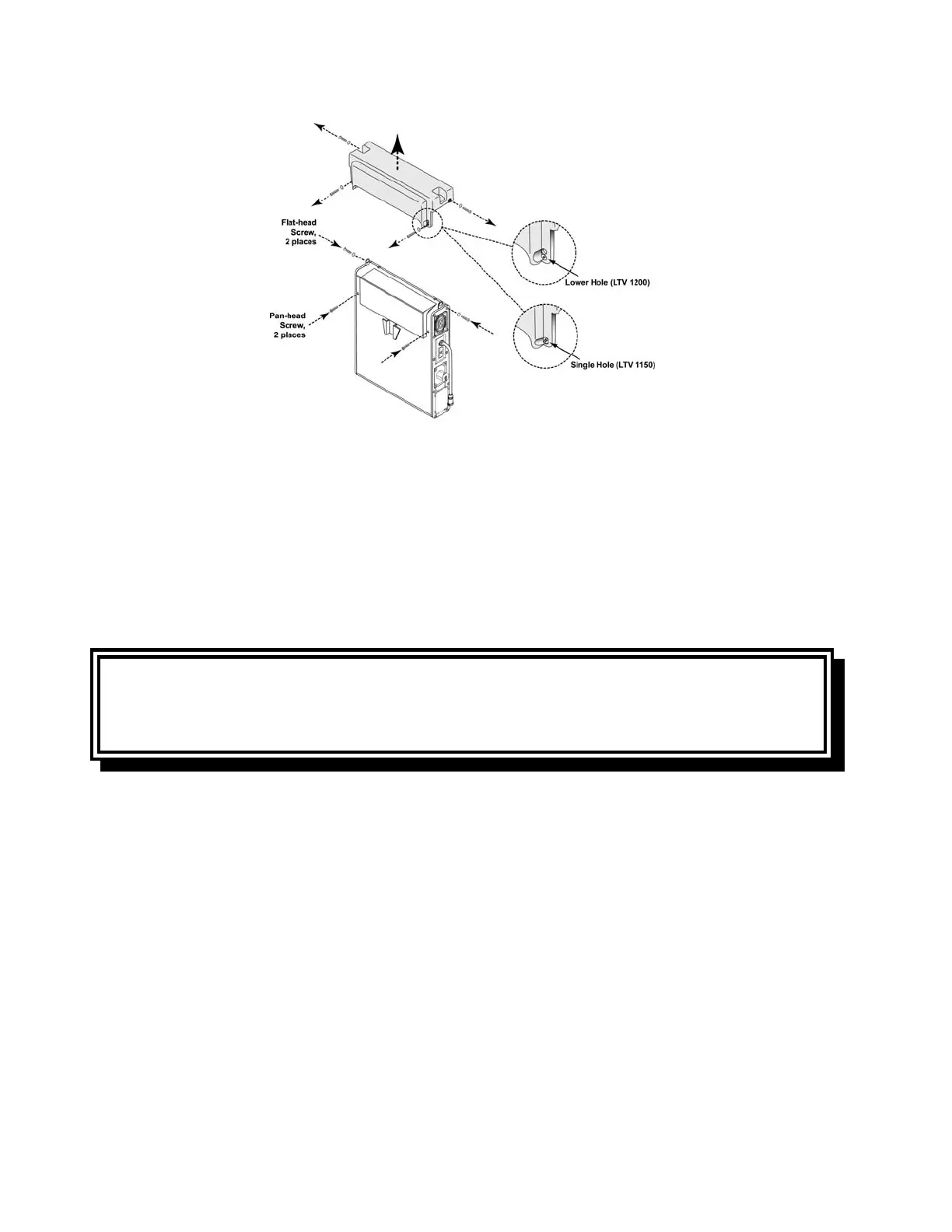

4) Insert and thread two 1/4” flat-head mounting screws with finish washers into the
screw holes in the ventilator’s side panels, as shown in the illustration.
• Finish washers should be already in place.
5) Torque tighten the mounting screws to these specified values
• Torque tighten the screws in the back panel of the ventilator to 60 in-oz (0.42 Nm)
• Torque tighten the two screws in the sides of the ventilator to 20 in-oz (0.14 Nm)
CAUTION
Damage to finish washers -Do not over tighten screws to avoid damage to the finish
washers.
