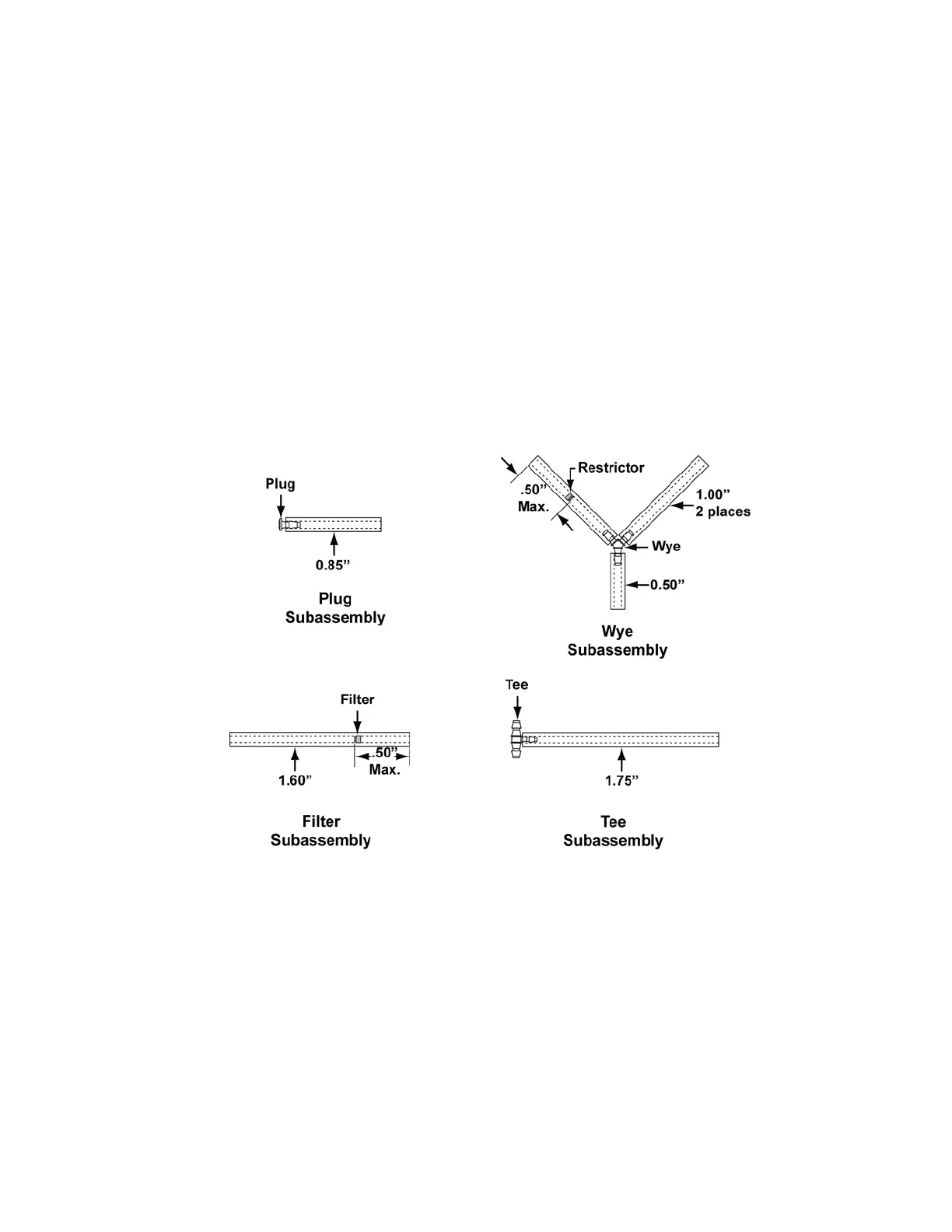

Solenoid Mount Preparation:
1) Construct a Plug subassembly, as follows:
• fully insert Plug fitting P/N 18187-001 into 0.85” tubing P/N 10456
2) Construct a Wye subassembly, as follows:
• attach a 1.00” tubing P/N 10456 to each top end (2) of Wye fitting P/N
18185-001 and a 0.50” tubing P/N 10456 to the bottom end
• insert Restrictor P/N 18551-022 (red in center) up to a maximum of 0.50”
into either one of the top tubes (big end inserted last)
3) Construct a Filter subassembly, as follows:
• insert Filter P/N 18552-001 (screen in center) up to a maximum of 0.50” into
a 1.60” tubing P/N 10456 (tapered end inserted first)
4) Construct a Tee subassembly, as follows:
• fully insert Tee fitting P/N 18186-001 into 1.75” tubing P/N 10456
