Page 8-42 LTV
®
1200/1150 Ventilator Service Manual p/n 18603-001, Rev. C

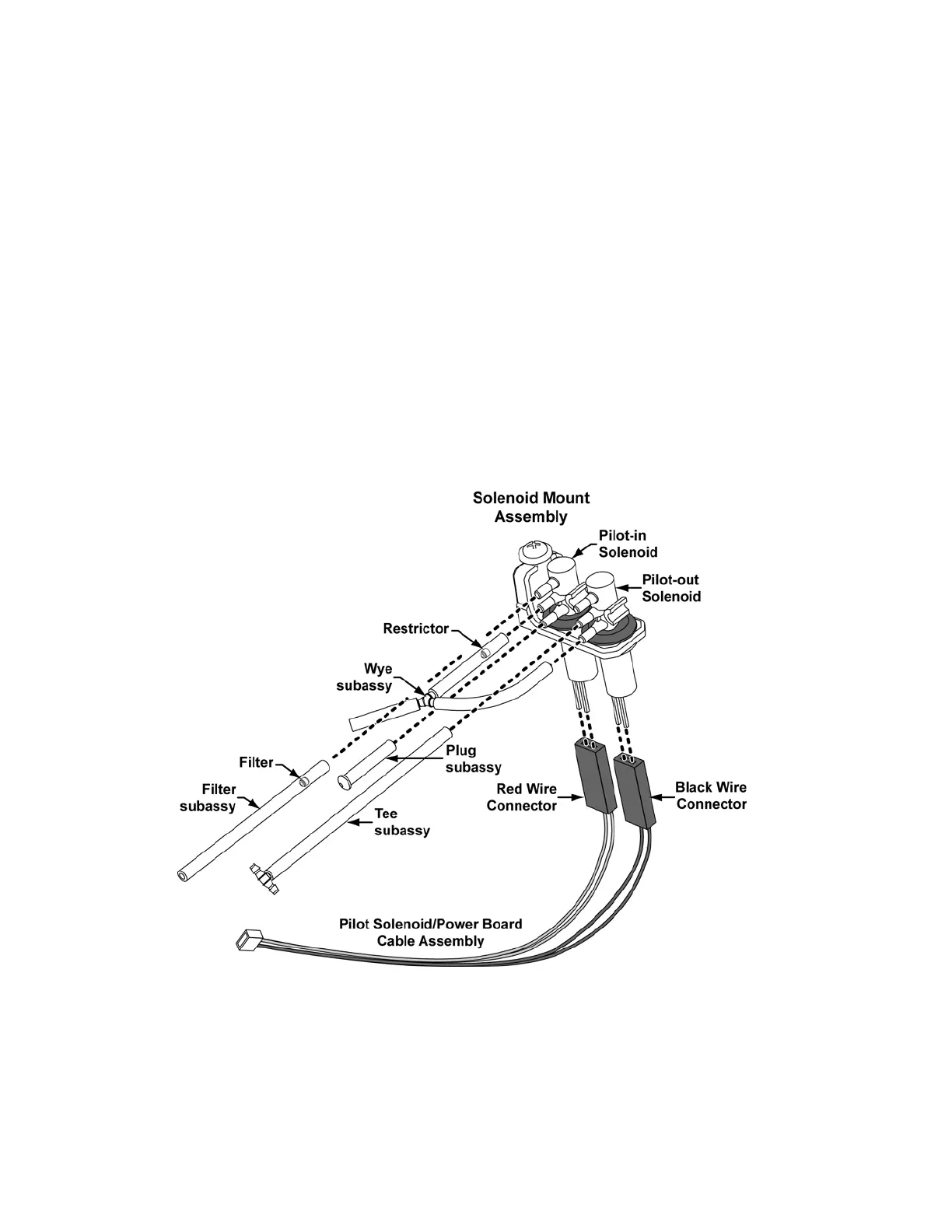

5) Attach subassemblies to the Solenoid Mount assembly, as follows:
• attach the open end of the Plug subassembly tube to the bottom port of the
Pilot-in solenoid on the Solenoid Mount P/N 18161-001
• attach the end of the Wye subassembly tube with the installed restrictor
onto the middle port of the Pilot-in solenoid (restrictor will slide farther into
tube during attachment)
• attach the other top tube of the Wye subassembly onto the bottom port of
the Pilot-out solenoid
• attach the end of the Filter subassembly tube with the filter onto the top port
of the Pilot-in solenoid (filter will slide farther into tube during attachment)
• attach the open end of the Tee subassembly to the middle port of the Pilot-
out solenoid
• attach the Pilot Solenoid/Power Board Cable assembly P/N 18530-001, two
red wire connector onto the Pilot-in solenoid leads and the two black wire
connector onto the Pilot-out solenoid leads
