Analog PCBA Preparation:

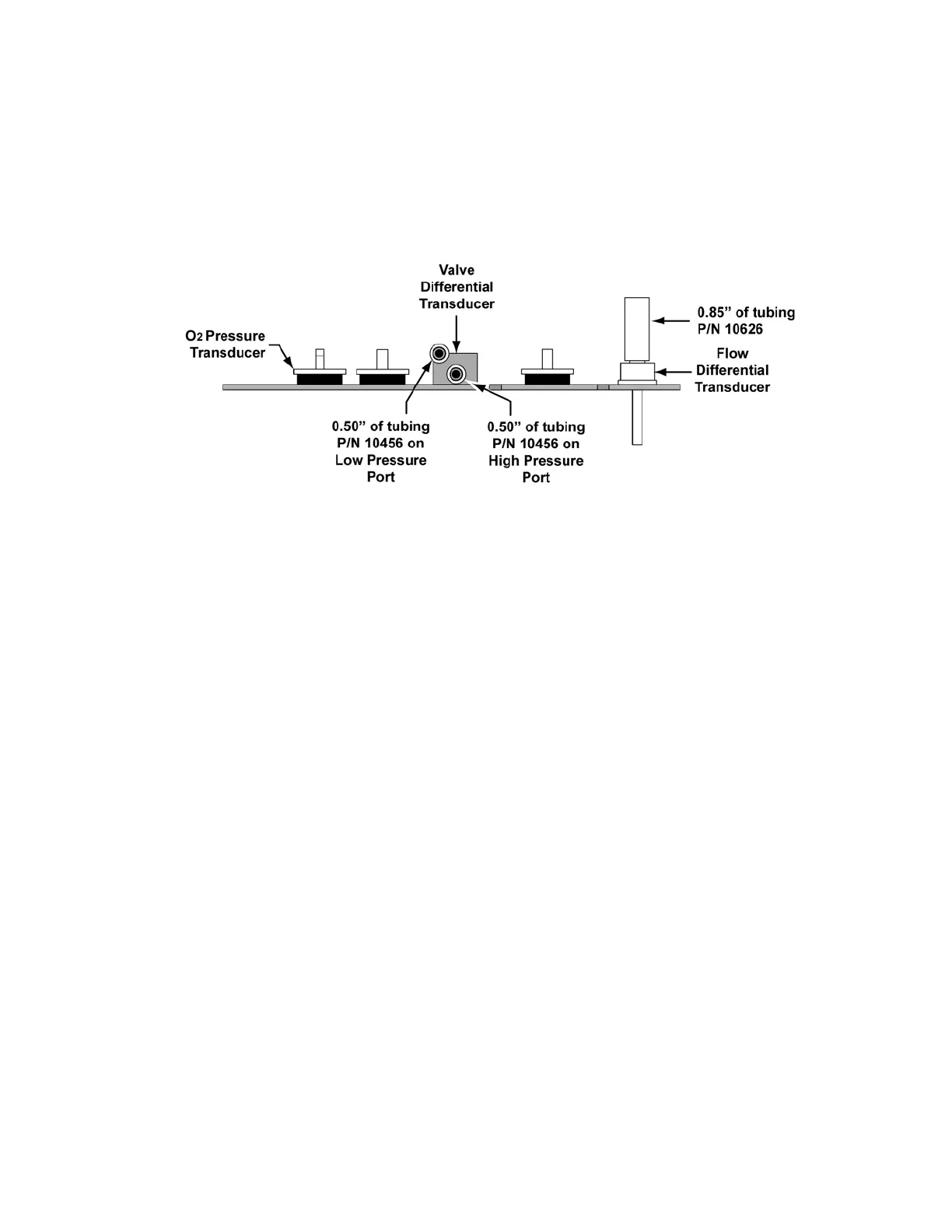

1) As applicable, prepare the Analog PCBA P/N 18242-001 for installation, as follows:
• attach 0.50” of tubing P/N 10456 to the high and low pressure ports (onto at
least two-thirds of the height of the fittings) on the Valve Differential
Transducer
• attach 0.85” of tubing P/N 10626 onto the Flow Differential Transducer
2) As applicable, install the Analog PCBA (see instructions on page 8-57).
