Page 8-44 LTV
®
1200/1150 Ventilator Service Manual p/n 18603-001, Rev. C

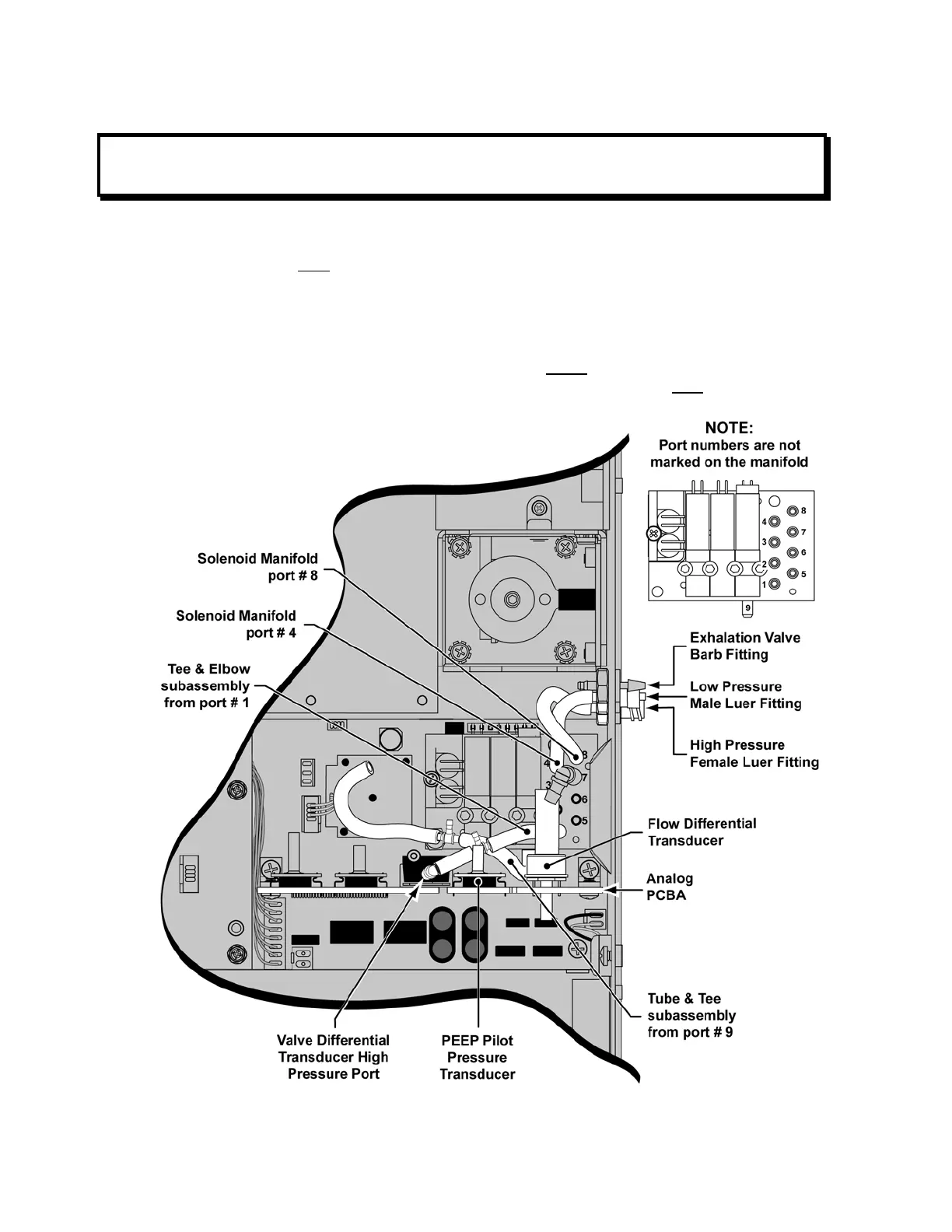

Solenoid Manifold, Analog PCBA and External Port Tubing Installation:
NOTE
Some previously attached manifold tubing is not shown for clarity of pertinent instructions.
1) Attach Solenoid Manifold port tubing, as follows;
• port # 4 onto ventilator side panel Low Pressure port
• port # 8 over tubing from port # 4 and onto ventilator side panel High Pressure
port
2) Insert the elbow fitting attached to the Tee and Elbow subassembly on Solenoid
Manifold Port # 1 into the tubing on the High Pressure port on the Valve Differential
Transducer.
• the Tee and Elbow subassembly is routed under the Flow Differential
Transducer and PEEP Pilot Pressure Transducer ports and over
the Tube and
Tee subassembly from Solenoid Manifold side port # 9
