p/n 18603-001, Rev. C LTV
®
1200/1150 Ventilator Service Manual Page 8-47

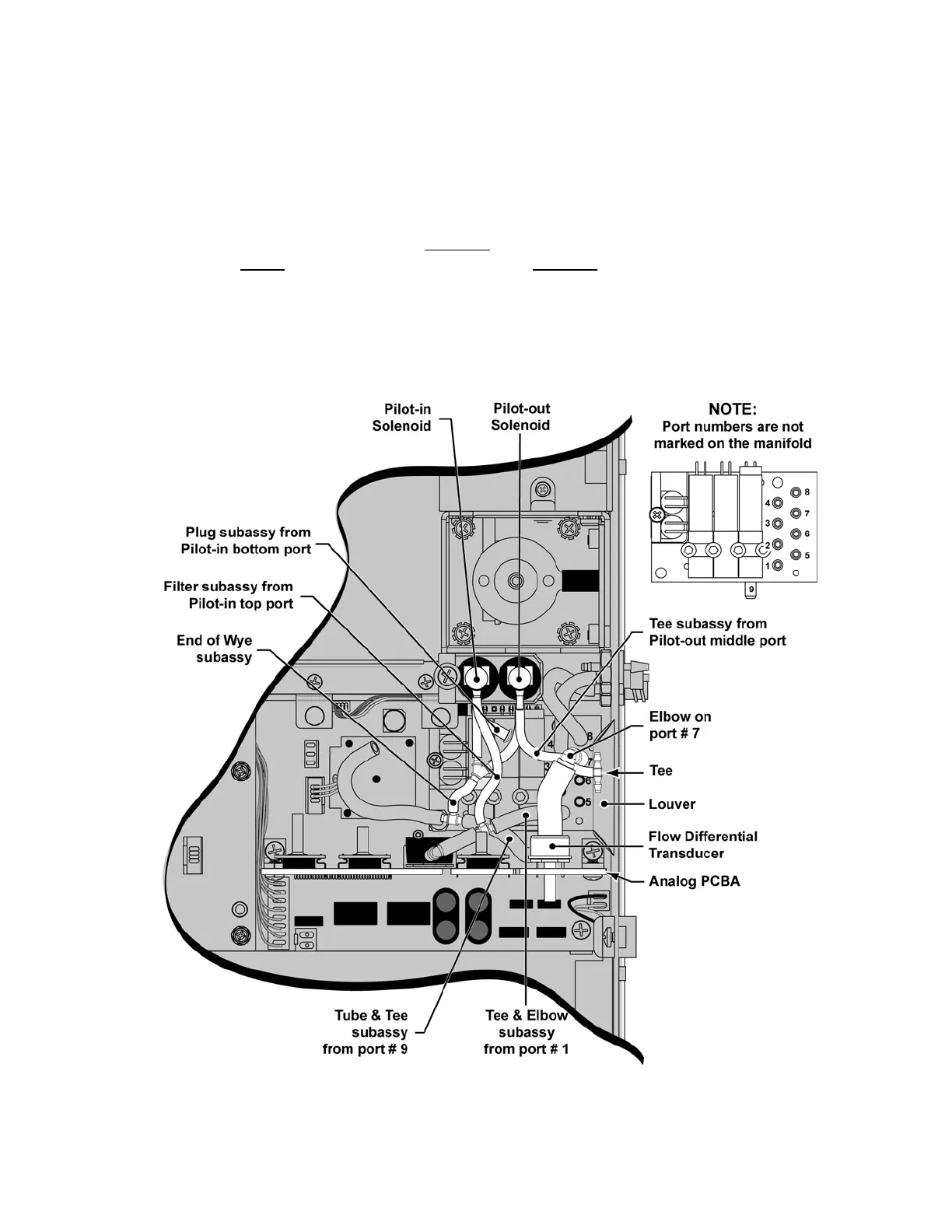

6) Connect the open end of the Wye subassembly tubing onto the tee fitting in the
Tube and Tee subassembly attached to Solenoid Manifold port # 9.
7) Connect the open end of the Filter subassembly onto the tee fitting in the Tee and
Elbow subassembly attached to Solenoid Manifold port # 1.
8) Route the Tee subassembly between
the tubes on Solenoid Manifold ports # 3 and
# 4, under
the elbow fitting on port # 7 and between Solenoid Manifold ports # 6
and # 7.
• the tee on the end of the tube must be positioned at the opening of the
Louver to the outside of the LTV
®
9) Insert the elbow fitting attached to the tubing on Solenoid Manifold port # 7 into the
tubing attached to the Flow Differential Transducer on the Analog PCBA.
