Page 8-110 LTV
®
1200/1150 Ventilator Service Manual p/n 18603-001, Rev. C
NOTE
When the Motor PCBA is correctly seat on the power board, the pins on the power board
should visibly protrude through the top of the connector on the Motor PCBA.

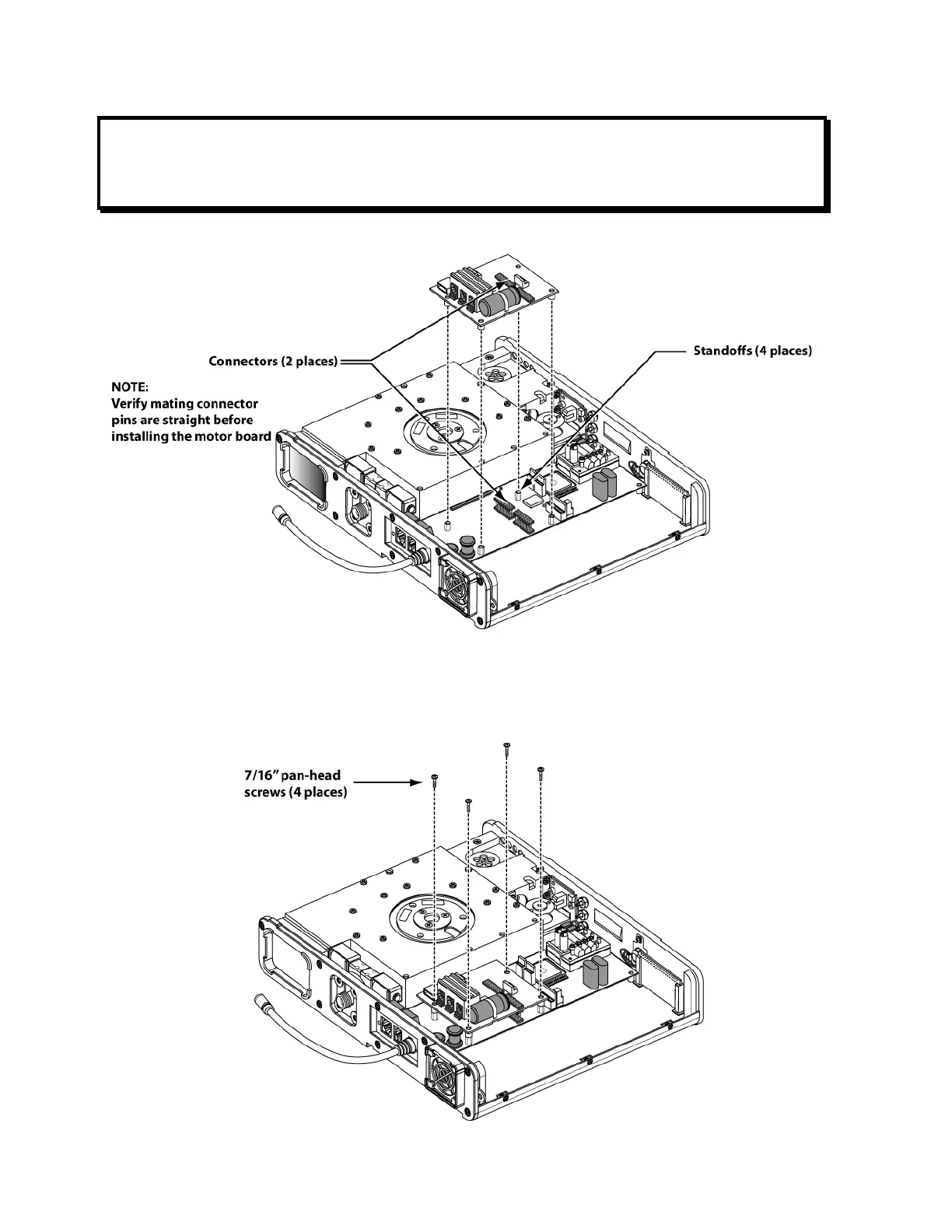

18) Thread four 7/16” pan-head screws (P/N 10433) into the mounting holes in the Motor
PCBA and torque-tighten to 60 in-oz (0.42 Nm).
