Page 8-128 LTV
®
1200/1150 Ventilator Service Manual p/n 18603-001, Rev. C
To remove the Turbine Manifold and Oxygen blender or O
2
Block:
1) Remove the back panel and disconnect the battery (see instructions on page 8-28).
2) Remove the left soft side (see instructions on page 8-113).
3) Remove the motor board (see instructions on page 8-90).
4) Disconnect the O
2
blender 8-wire connector from the power board (LTV
®
1200 only).

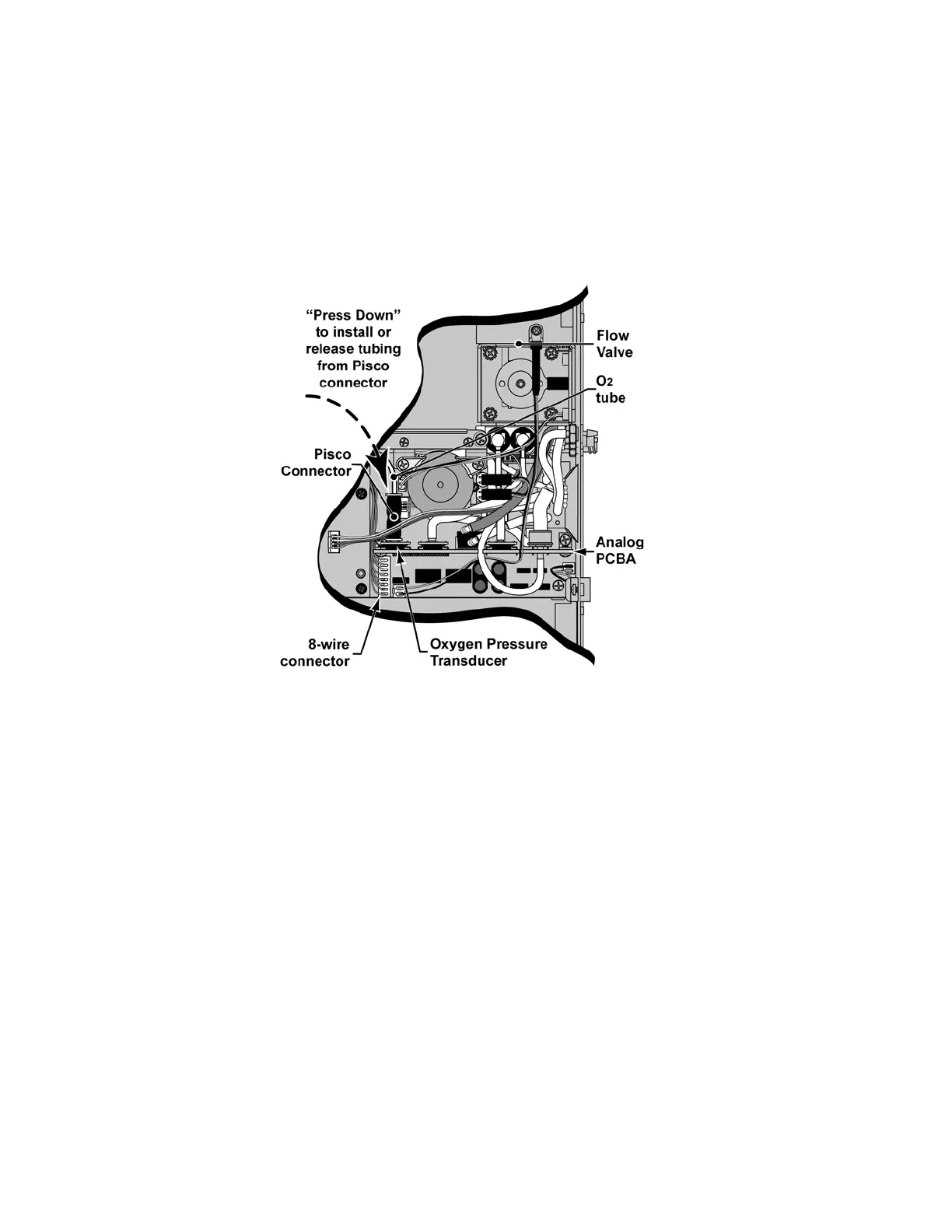

5) Disconnect the O
2
tube from the Pisco connector on the oxygen pressure transducer on
the analog board as shown (LTV
®
1200 only).
6) Remove the flow valve and disconnect the by-pass tubing from the base of the turbine
manifold (see instructions on page 8-65).
7) Remove the two (2) screws securing the accumulator to the turbine manifold spacer
and loosen the one (1) screw and washer securing the solenoid mount assembly.
Detach the accumulator and the solenoid mount assembly from the spacer.
