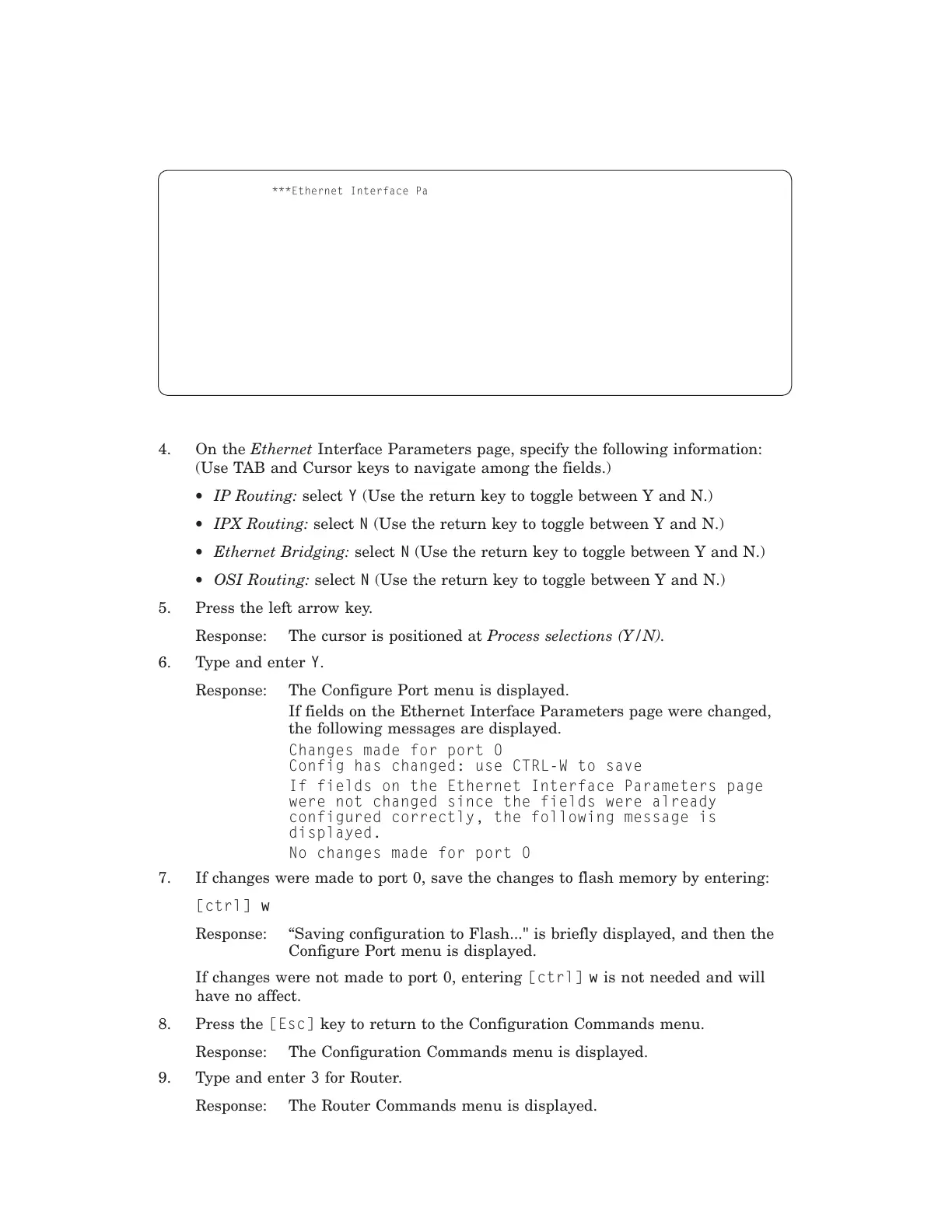

4. On the Ethernet Interface Parameters page, specify the following information:

(Use TAB and Cursor keys to navigate among the fields.)

• IP Routing: select Y (Use the return key to toggle between Y and N.)

• IPX Routing: select N (Use the return key to toggle between Y and N.)

• Ethernet Bridging: select N (Use the return key to toggle between Y and N.)

• OSI Routing: select N (Use the return key to toggle between Y and N.)

5. Press the left arrow key.

Response: The cursor is positioned at Process selections (Y/N).

6. Type and enter Y.

Response: The Configure Port menu is displayed.

If fields on the Ethernet Interface Parameters page were changed,

the following messages are displayed.

Changes made for port 0

Config has changed: use CTRL-W to save

If fields on the Ethernet Interface Parameters page

were not changed since the fields were already

configured correctly, the following message is

displayed.

No changes made for port 0

7. If changes were made to port 0, save the changes to flash memory by entering:

[ctrl] w

Response: “Saving configuration to Flash..." is briefly displayed, and then the

Configure Port menu is displayed.

If changes were not made to port 0, entering [ctrl] w is not needed and will

have no affect.

8. Press the [Esc] key to return to the Configuration Commands menu.

Response: The Configuration Commands menu is displayed.

9. Type and enter 3 for Router.

Response: The Router Commands menu is displayed.

***Ethernet Interface Parameters***

Port: 0 On-board Ethernet Last changed: 1-30-00

14:20:48

|- Press <RET> to toggle values -| |--Type in values. Max chars shown in () --|

Port type: ethernet Port name: Ethernet

(14)

MAC address: 00206100479e

Traffic types permitted to/from LAN

IP Routing: Y

IPX Routing: N

Ethernet Bridging: N

OSI Routing: N

_____[ ]_____ Process selections (Y/N):Y

Use TAB & CURSOR keys to move among fields Press ESC to abort command & exit

Figure 3.5-1 — Example of

Ethernet

Interface Parameters Screen With Field Values

NETWORK PROCEDURES

Procedure 3.5

235-200-150

October 2004

Page 3.5-2 Issue 3.00L
