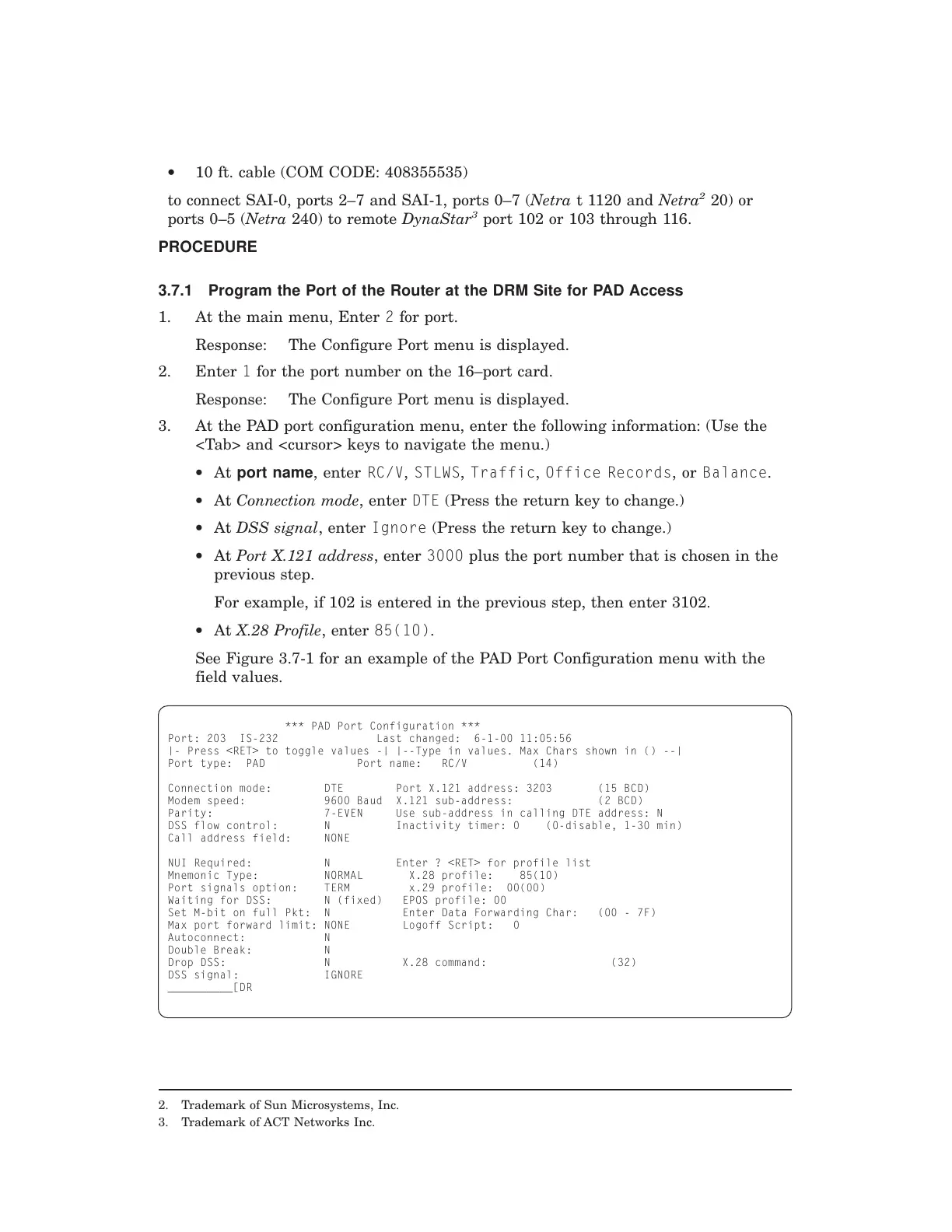

• 10 ft. cable (COM CODE: 408355535)

to connect SAI-0, ports 2–7 and SAI-1, ports 0–7 (Netra t 1120 and Netra

20) or

ports 0–5 (Netra 240) to remote DynaStar

port 102 or 103 through 116.

PROCEDURE

3.7.1 Program the Port of the Router at the DRM Site for PAD Access

1. At the main menu, Enter 2 for port.

Response: The Configure Port menu is displayed.

2. Enter 1 for the port number on the 16–port card.

Response: The Configure Port menu is displayed.

3. At the PAD port configuration menu, enter the following information: (Use the

<Tab> and <cursor> keys to navigate the menu.)

• At port name, enter RC/V, STLWS, Traffic, Office Records,orBalance.

• At Connection mode, enter DTE (Press the return key to change.)

• At DSS signal, enter Ignore (Press the return key to change.)

• At Port X.121 address, enter 3000 plus the port number that is chosen in the

previous step.

For example, if 102 is entered in the previous step, then enter 3102.

• At X.28 Profile, enter 85(10).

See Figure 3.7-1 for an example of the PAD Port Configuration menu with the

field values.

2. Trademark of Sun Microsystems, Inc.

3. Trademark of ACT Networks Inc.

*** PAD Port Configuration ***

Port: 203 IS-232 Last changed: 6-1-00 11:05:56

|- Press <RET> to toggle values -| |--Type in values. Max Chars shown in () --|

Port type: PAD Port name: RC/V (14)

Connection mode: DTE Port X.121 address: 3203 (15 BCD)

Modem speed: 9600 Baud X.121 sub-address: (2 BCD)

Parity: 7-EVEN Use sub-address in calling DTE address: N

DSS flow control: N Inactivity timer: 0 (0-disable, 1-30 min)

Call address field: NONE

NUI Required: N Enter ? <RET> for profile list

Mnemonic Type: NORMAL X.28 profile: 85(10)

Port signals option: TERM x.29 profile: 00(00)

Waiting for DSS: N (fixed) EPOS profile: 00

Set M-bit on full Pkt: N Enter Data Forwarding Char: (00 - 7F)

Max port forward limit: NONE Logoff Script: 0

Autoconnect: N

Double Break: N

Drop DSS: N X.28 command: (32)

DSS signal: IGNORE

__________[DRM50-ROUTER]_____________ Process selections (Y/N): Y

Use TAB & CURSOR keys to move among fields Press ESC to abort command & exit

Figure 3.7-1 — PAD Port Configuration Menu with Sample Field Input

NETWORK PROCEDURES

Procedure 3.7

235-200-150

January 2003

Page 3.7-2 Issue 3.00
