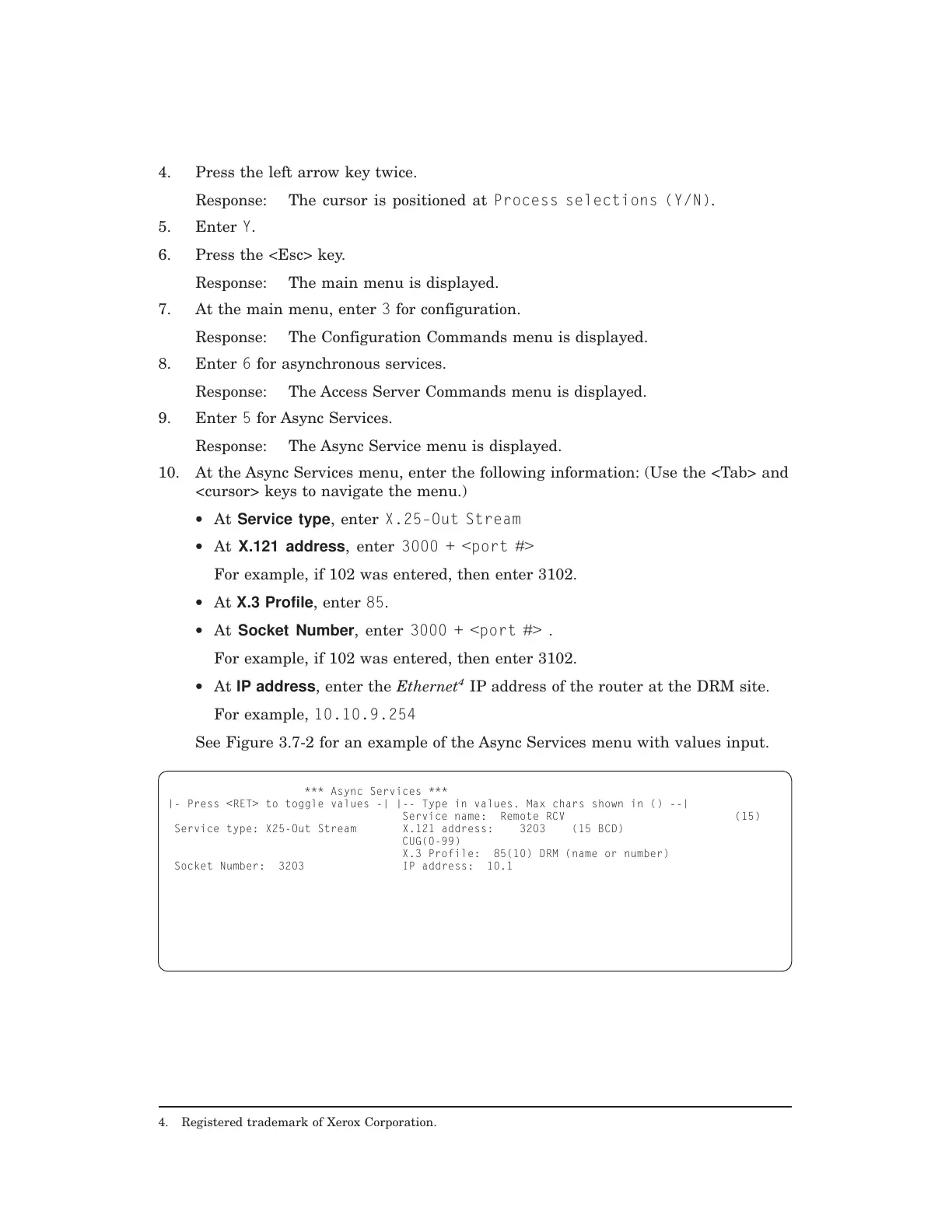

4. Press the left arrow key twice.

Response: The cursor is positioned at Process selections (Y/N).

5. Enter Y.

6. Press the <Esc> key.

Response: The main menu is displayed.

7. At the main menu, enter 3 for configuration.

Response: The Configuration Commands menu is displayed.

8. Enter 6 for asynchronous services.

Response: The Access Server Commands menu is displayed.

9. Enter 5 for Async Services.

Response: The Async Service menu is displayed.

10. At the Async Services menu, enter the following information: (Use the <Tab> and

<cursor> keys to navigate the menu.)

• At Service type, enter X.25–Out Stream

• At X.121 address, enter 3000 + <port #>

For example, if 102 was entered, then enter 3102.

• At X.3 Profile, enter 85.

• At Socket Number, enter 3000 + <port #> .

For example, if 102 was entered, then enter 3102.

• At IP address, enter the Ethernet

IP address of the router at the DRM site.

For example, 10.10.9.254

See Figure 3.7-2 for an example of the Async Services menu with values input.

4. Registered trademark of Xerox Corporation.

*** Async Services ***

|- Press <RET> to toggle values -| |-- Type in values. Max chars shown in () --|

Service name: Remote RCV (15)

Service type: X25-Out Stream X.121 address: 3203 (15 BCD)

CUG(0-99)

X.3 Profile: 85(10) DRM (name or number)

Socket Number: 3203 IP address: 10.10.9.254

Telnet command: -N -Q -H FB03 (23)

TCP idle timer: OFF (1-255 min)

Call User Data: (16 Hex)

__________[DRMXX-ROUTER]_________________ Process selections (Y/N): Y

Use <CTRL-D> to delete entry

Use TAB & CURSOR keys to move among fields Press ESC to abort command & exit

Figure 3.7-2 — The Async Services Menu with Sample Field Values

235-200-150

January 2003

NETWORK PROCEDURES

Procedure 3.7

Issue 3.00 Page 3.7-3
