17. Verify that the blue light indicating the disk can be removed is lit.
Note: If the Blue light does not light with 2 minutes after completing step 13,
seek technical assistance.
18. Remove HDD0 (left disk).
a. Push the disk drive latch downwards to release the drive handle.
b. Extend the drive handle to disconnect the drive from the system.
c. Holding the drive handle, remove the drive from the drive bay.
19. Enter return at the console prompt. If the following response is not received, seek
technical assistance.
Device: /dev/rdsk/c1t0d0s2
Logical Nodes being removed under /dev/dsk/ and
/dev/rdsk:
c1t0d0s0
c1t0d0s1
c1t0d0s2
c1t0d0s3
c1t0d0s4
c1t0d0s5
c1t0d0s6
c1t0d0s7

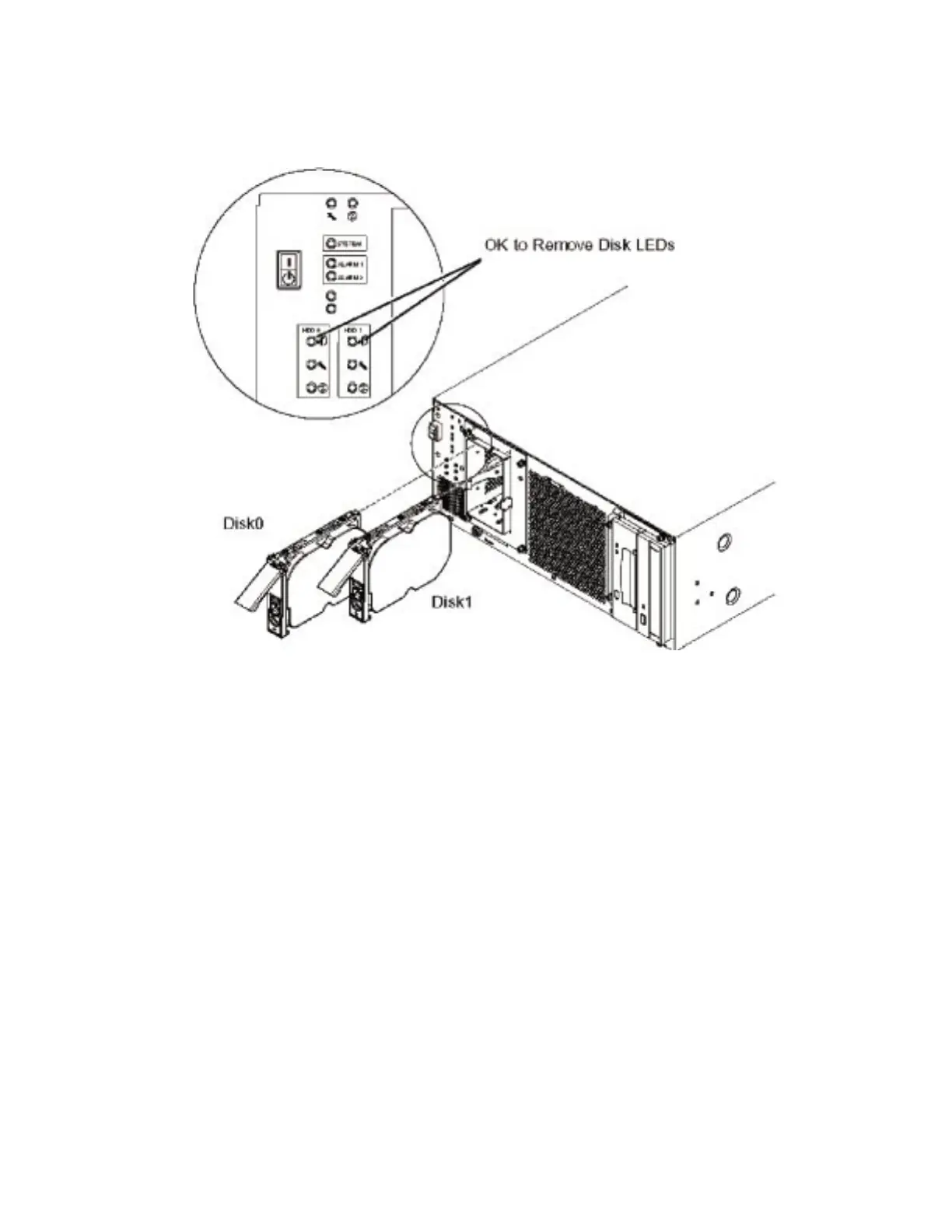

Figure 4.5.3-1 — Removal of the
Netra
20 Hard Drives
235-200-150
October 2005
ADMINISTRATIVE WORKSTATION MAINTENANCE
Procedure 4.5.3
Issue 3.00B Page 4.5.3-3
