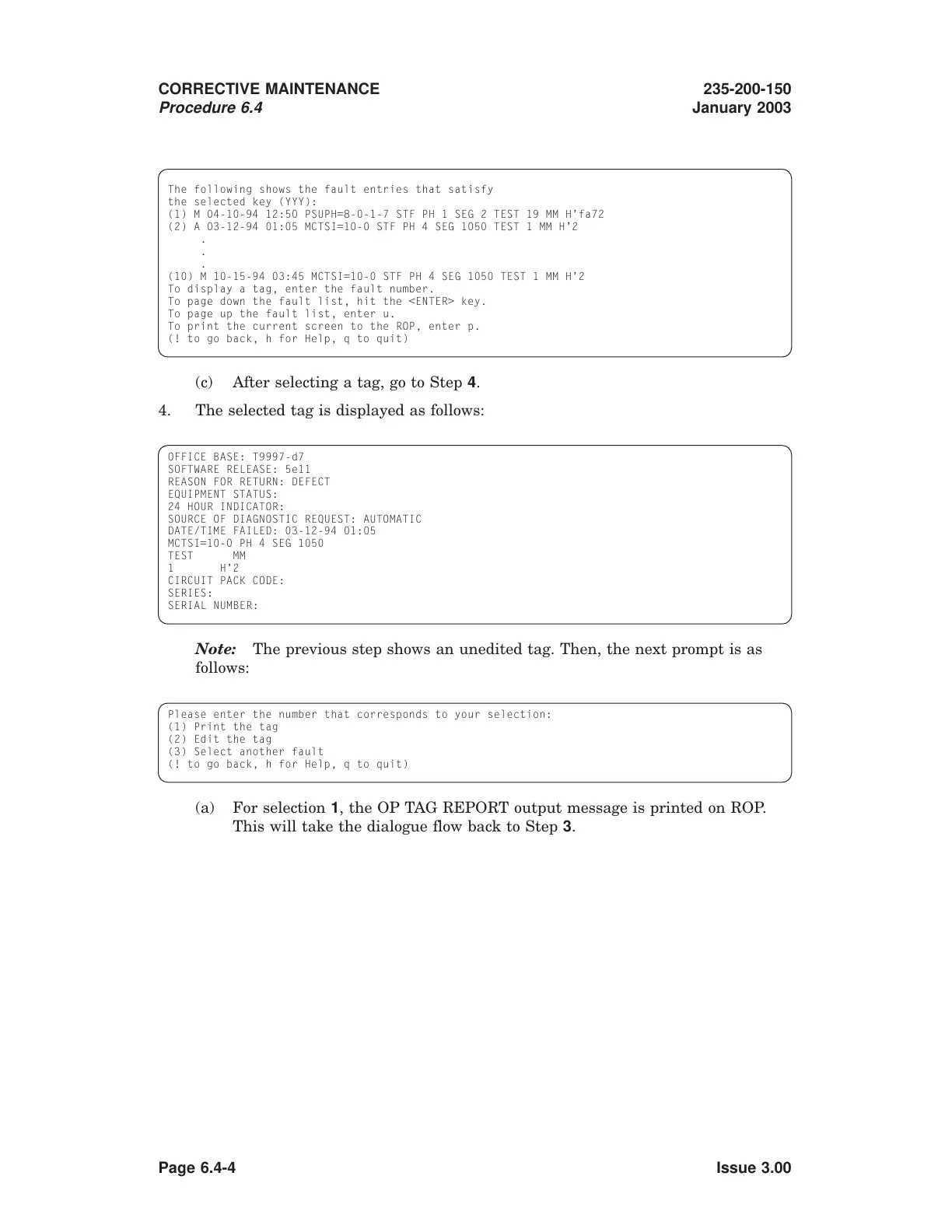

The following shows the fault entries that satisfy
the selected key (YYY):
(1) M 04-10-94 12:50 PSUPH=8-0-1-7 STF PH 1 SEG 2 TEST 19 MM H’fa72
(2) A 03-12-94 01:05 MCTSI=10-0 STF PH 4 SEG 1050 TEST 1 MM H’2
.
.
.
(10) M 10-15-94 03:45 MCTSI=10-0 STF PH 4 SEG 1050 TEST 1 MM H’2
To display a tag, enter the fault number.
To page down the fault list, hit the <ENTER> key.
To page up the fault list, enter u.
To print the current screen to the ROP, enter p.
(! to go back, h for Help, q to quit)
(c) After selecting a tag, go to Step 4.
4. The selected tag is displayed as follows:
OFFICE BASE: T9997-d7
SOFTWARE RELEASE: 5e11
REASON FOR RETURN: DEFECT
EQUIPMENT STATUS:
24 HOUR INDICATOR:
SOURCE OF DIAGNOSTIC REQUEST: AUTOMATIC
DATE/TIME FAILED: 03-12-94 01:05
MCTSI=10-0 PH 4 SEG 1050
TEST MM
1 H’2
CIRCUIT PACK CODE:
SERIES:
SERIAL NUMBER:
Note: The previous step shows an unedited tag. Then, the next prompt is as
follows:
Please enter the number that corresponds to your selection:
(1) Print the tag
(2) Edit the tag
(3) Select another fault
(! to go back, h for Help, q to quit)
(a) For selection 1, the OP TAG REPORT output message is printed on ROP.
This will take the dialogue flow back to Step 3.
CORRECTIVE MAINTENANCE
Procedure 6.4
235-200-150
January 2003
Page 6.4-4 Issue 3.00
