16. Follow the Paradyne 3810 user manual to set Modem A to the factory async
default settings with the following exceptions:
DTE_Interface:
DTE Rate = 9600
Data Bits = 7
Parity = Even
DTR Action = Ignore
DSR Control = Standard RS232
RTS Action = Standard RS232
DTE_Dialer:
DTE Dialer Type = Disable
Dial_Line:
Dial Line Rate = 9600
MODEM A
MODEM B
PSTN
Analog
Line
Analog
Line
REMOTE MCC
TERMINAL
EXISTING
LOCAL MCC/
SUN CONSOLE
TERMINAL
(If equipped)
KS23996/KS24697
Color MCC/SUN
Console Terminal
OR
Administrative
Workstation*
Serial Port B
SERIAL
SPLITTER
Port 1
Port 2 Port 3 Master
Cable 1
Cable 2
Cable 3
OR
PC running Lucent
AIMS MCC terminal
emulation software
Note : * The Netra 240 cable connection to the MCC
originates at a Serial Port 6 on SAI-1.

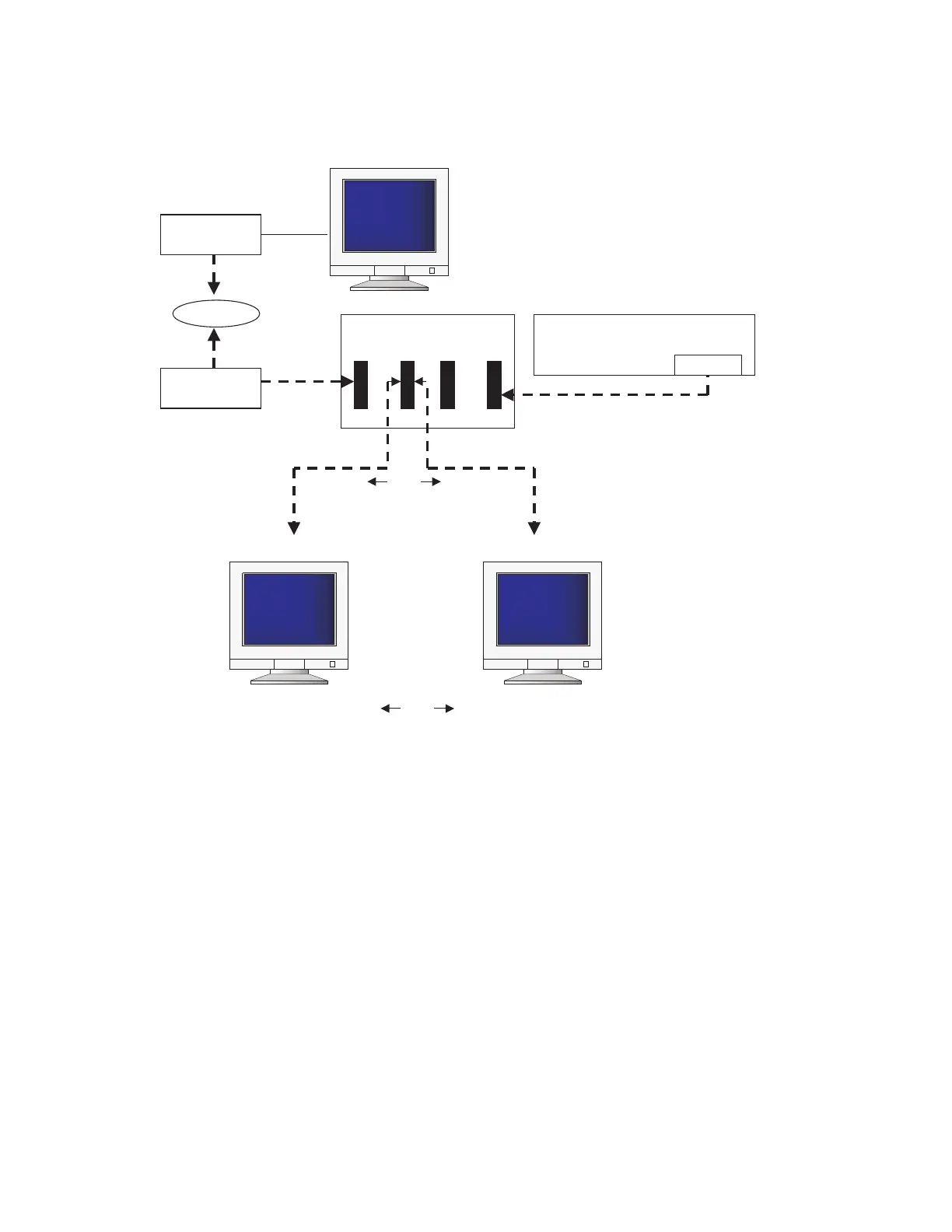

Figure 8.5-1 — Dial-Up MCC Hardware Connections
GROWTH AND DEGROWTH
Procedure 8.5
235-200-150
October 2005
Page 8.5-4 Issue 3.00B
