Lucent 5ESS DRM - Page 539

PORT 7
PORT 0
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
A synchronous
Patch Panel
SAI-1
(Optional)
PORT 7
PORT 0
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
A synchronous
Patch Panel
SAI-0
PCI
1
PCI
2
PCI
3
PCI
4
To Office Record Printer

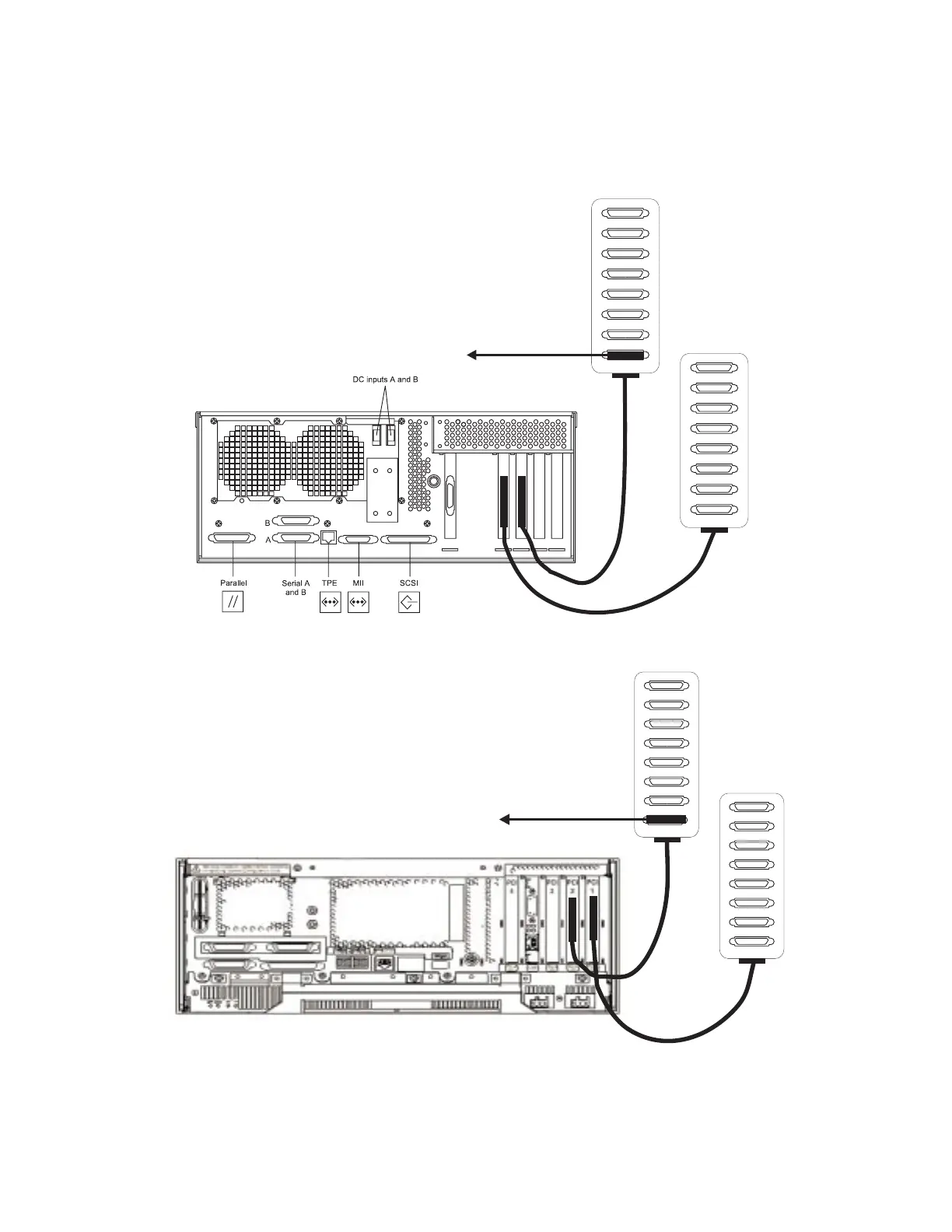

Figure 8.14-1 — Office Record Printer Installation ( Netra
2
t 1120)
PORT 7
PORT 0
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
Asynchronous
Patch Panel
SAI-1
(Optional)
PORT 7
PORT 0
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
Asynchronous
Patch Panel
SAI-0
PORT 5
To Office Record Printer
Figure 8.14-2 — Office Record Printer Installation ( Netra 20)
235-200-150
October 2005
GROWTH AND DEGROWTH
Procedure 8.14
Issue 3.00B Page 8.14-3
