Connection Instructions 35
Selecta
PBL200051, Rev J
Connect the external door interlock plug
The external door interlock is a safety feature that disables the laser if the
treatment room doors are opened or the interlock plug is removed.
Use of an external door interlock is optional; however, if you do not use a door
interlock, you must insert the external door interlock plug into the
(external interlock) receptacle, as shown.
If you use an external door interlock, the laser can only be placed in ready
mode when the interlocked door is closed. If the interlocked door is
subsequently opened, or the plug is removed, the laser is disabled and
(external interlock not connected) illuminates on the remote control display.
To resume treatment, close the treatment room door or reinsert the interlock
plug, and press the (ready) button on the remote control.

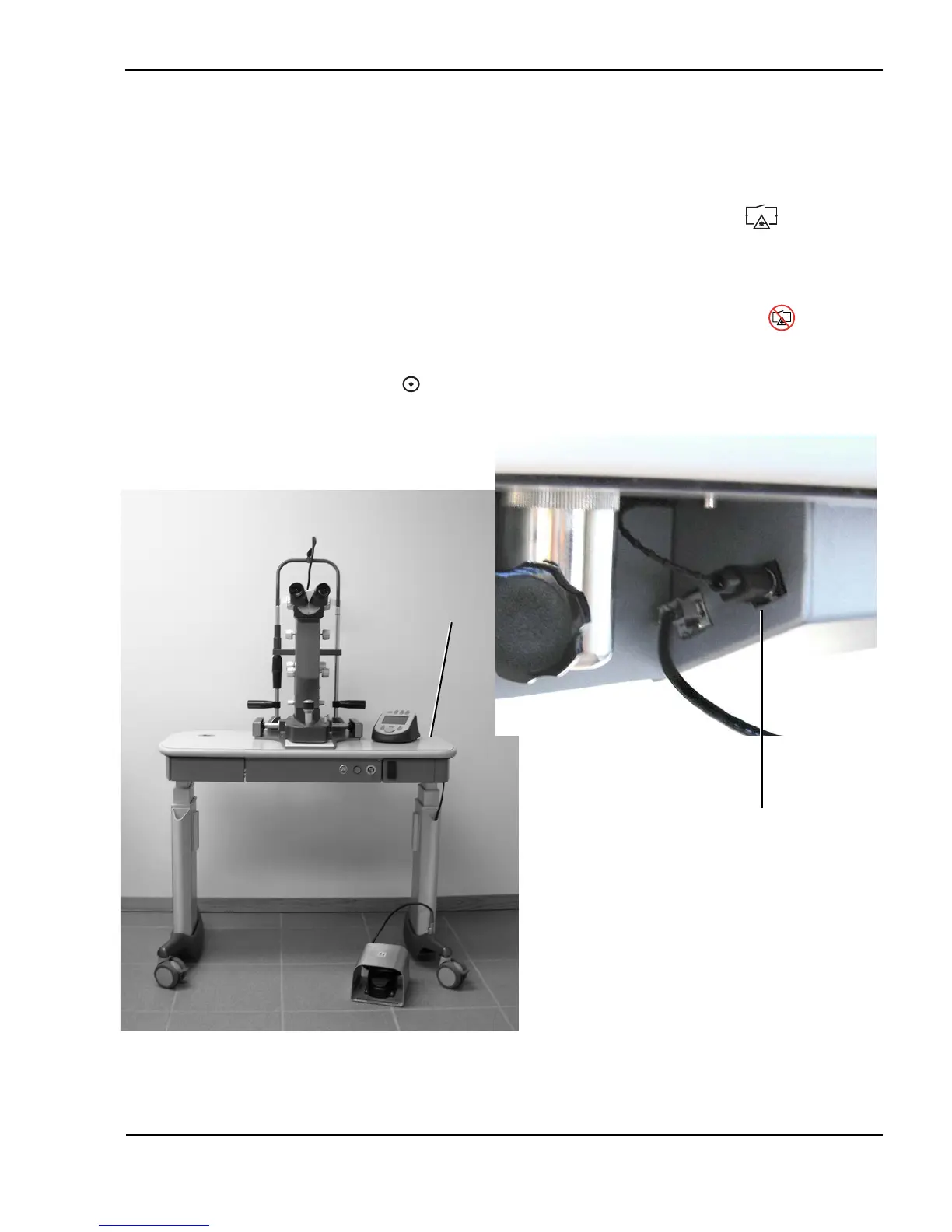

Connect the interlock plug
External door
interlock receptacle
(on back of system)
External door
interlock plug
