External Door Interlock Pin Assignments
The external door interlock is a safety feature that disables the laser if the
treatment room doors are opened or the interlock plug is removed while the
laser is in ready mode.
The interlock can be set up with a remote switch, or an external switch can be
wired to the interlock plug. Plug wiring shall only be performed by a qualified
electrical professional. Total length of cable shall not exceed five meters
(16 feet).
Pin assignments are as follows:

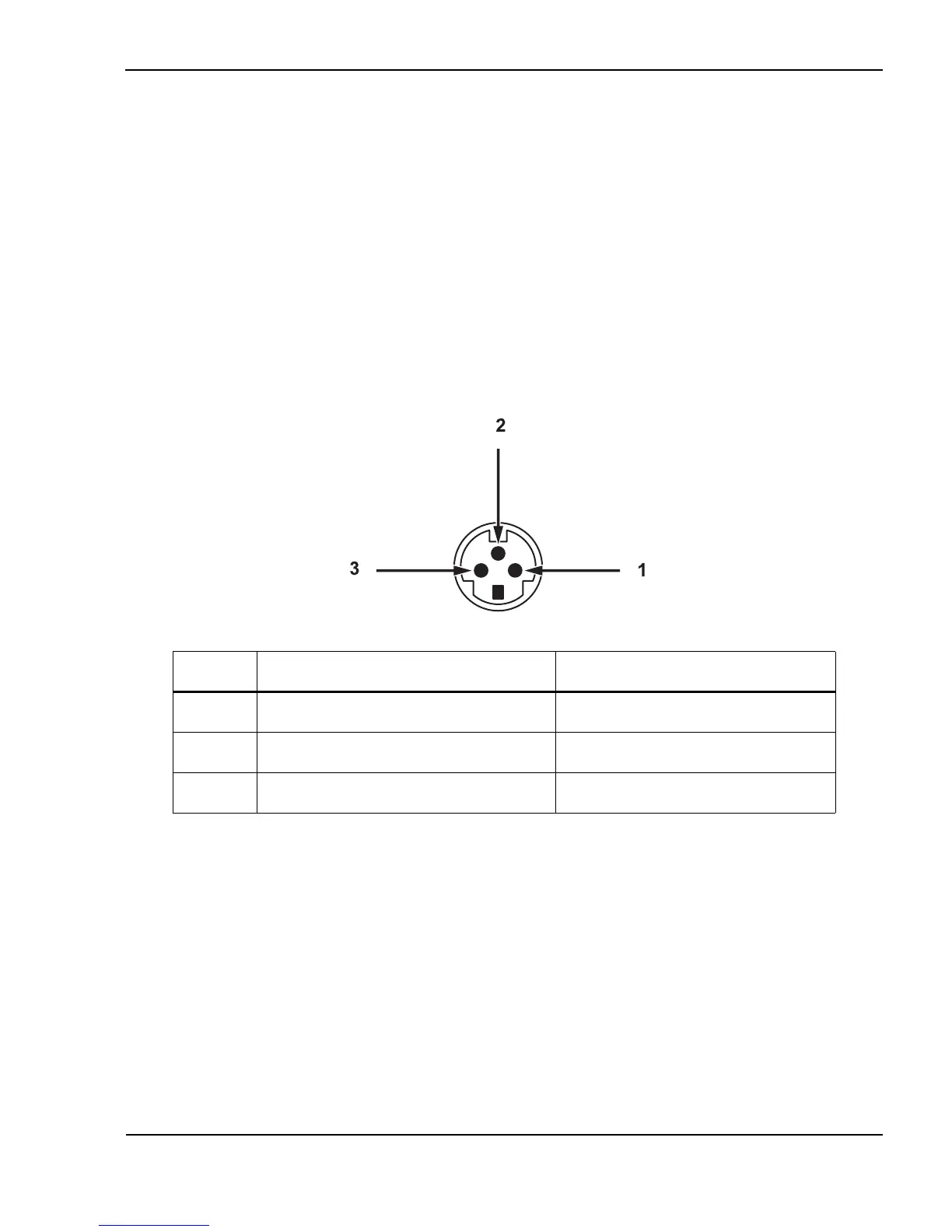

Remote door interlock pin assignments
(mating face shown)
Pin Signal Name Signal Description
1
Remote Interlock Connect to switch, normally open
2
Return Connect to switch common
3
None No connection
